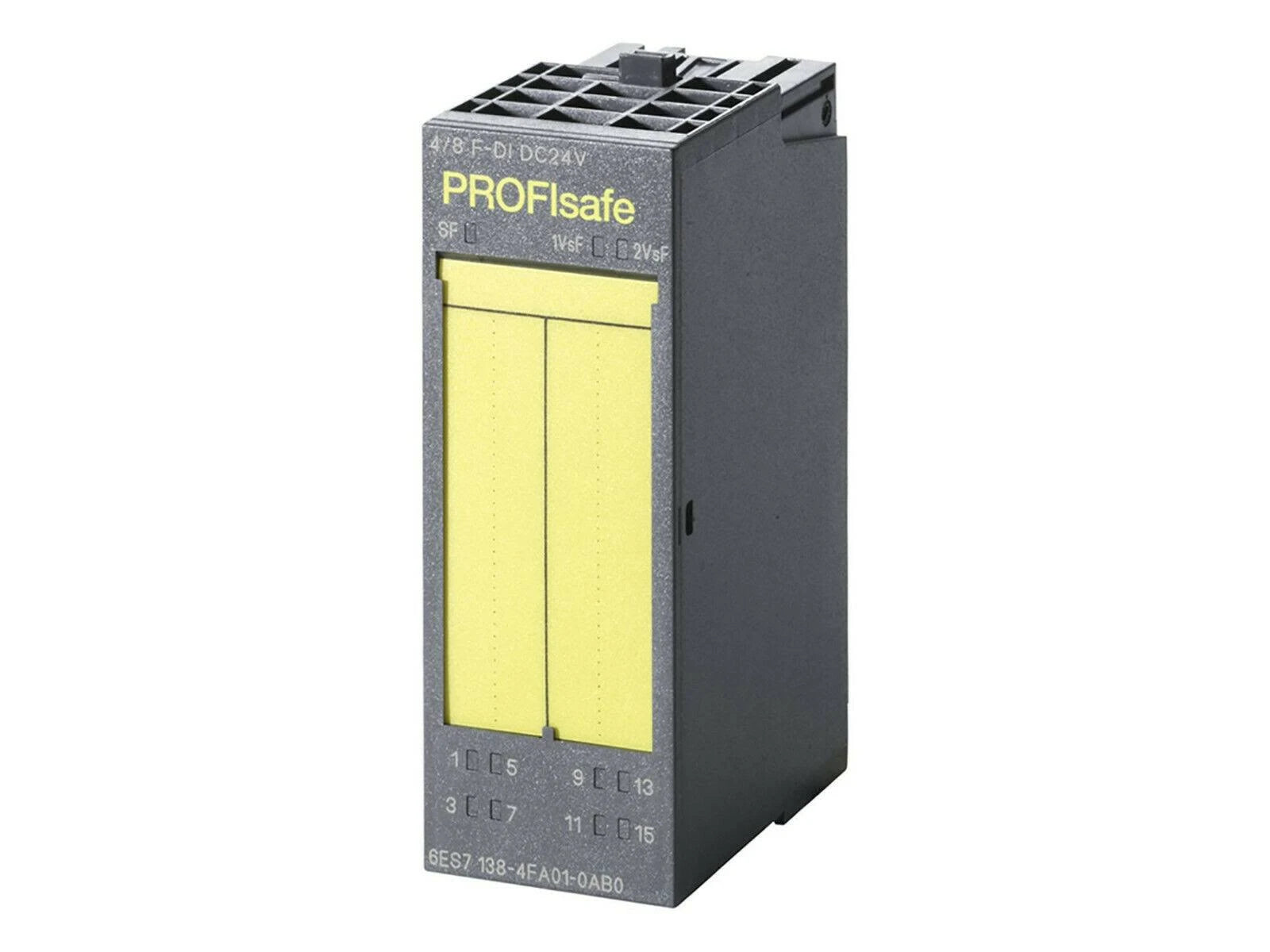

6ES7138-4FA04-0AB0 | Siemens SIMATIC ET 200S F-DI Safety Input Module, 4/8 Channels, 24 V DC
- Regular price
- $389.00
- Sale price
- $389.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7138-4FA04-0AB0
Description
The Siemens 6ES7138-4FA04-0AB0 is a safety-rated digital input module for the SIMATIC ET 200S system, offering 4 or 8 PROFIsafe-compatible inputs for high-demand safety applications. Operating at 24 V DC, it supports functional safety up to Category 4 (EN 954-1) and SIL3 (IEC 62061), and is suitable for use in PROFIBUS and PROFINET networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Part Number | 6ES7138-4FA04-0AB0 |
| Type | Interface Module / F-DI Input Module |
| Number of Inputs | 4/8 Safety Digital Inputs |
| Voltage Rating | 24 V DC |
| Signal Range | −30 to 5 V / 15 to 30 V AC |
| Amperage Rating | 300 mA |
| Power Rating | 4 W |
| Safety Ratings | Category 4 (EN 954-1), SIL3 (IEC 62061) |
| Network Compatibility | PROFIsafe over PROFIBUS and PROFINET (with IM151-3 HF) |
| Operating Temperature | −25°C to +60°C |
| Dimensions | 81 × 30 × 52 mm (H × W × D) |
| Module Width | 30 mm |
| Application | ET 200S Distributed I/O Systems |
Information About 6ES7138-4FA04-0AB0
The 6ES7138-4FA04-0AB0 is a functional safety digital input module designed for Siemens ET 200S distributed I/O systems, providing four or eight fail-safe digital inputs for PROFIsafe communication. Operating at 24 V DC, it supports wide signal ranges and offers high diagnostic coverage for safety-critical applications. With certification for Category 4 and SIL3, the module is suitable for emergency stop circuits, protective devices, and machine safety functions. Its compact 30 mm width and low 4 W power rating make it ideal for space-efficient cabinet installation. The module can also be integrated into PROFINET installations when used with the IM151-3 HF interface module, ensuring flexible deployment across modern industrial networks.
Key Features
- PROFIsafe-enabled safety I/O: supports 4 or 8 channels for fail-safe digital input applications.
- High functional safety level: certified for Category 4 and SIL3 safety requirements.
- Wide signal compatibility: accepts −30 to 5 V / 15 to 30 V AC signal ranges for diverse field devices.
- Compact ET 200S form factor: only 30 mm wide, suited for dense cabinet layouts.
- Extended operating range: functions reliably from −25°C to +60°C in industrial environments.
- Low 4 W power consumption: energy-efficient design for distributed safety architectures.
- PROFINET/PROFIBUS support: compatible with IM151-3 HF for integration into modern networks.
- Versatile safety module: ideal for emergency stops, protective doors, light curtains, and standard fail-safe inputs.
The 6ES7138-4FA04-0AB0 delivers the reliability and precision required for advanced fail-safe digital input handling in ET 200S safety automation systems.
