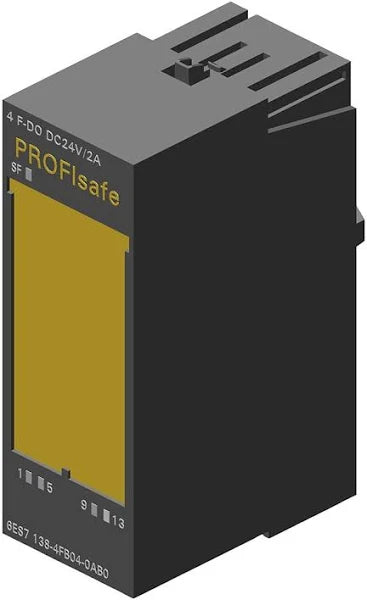

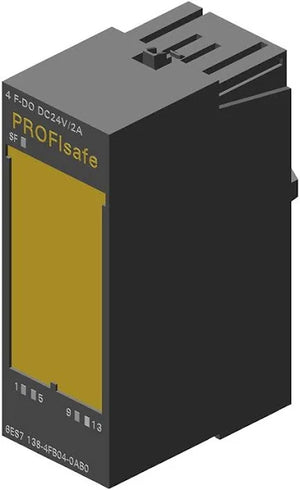

6ES7138-4FB04-0AB0 | Siemens Fail-Safe Digital Output, 4P, 24VDC/2A
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7138-4FB04-0AB0
Description
The Siemens 6ES7138-4FB04-0AB0 is a fail-safe digital output module for the ET 200S distributed I/O system. It provides four 24 VDC safety-rated outputs supporting up to 2 A per channel for controlling safety-related actuators. The module operates on PROFIsafe and is compatible with both PROFIBUS and PROFINET networks through appropriate ET 200S interface modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | 6ES7138-4FB04-0AB0 |
| Subcategory | VDC Logic I/O Module |
| Series | SIMATIC ET 200S |
| Module Type | Fail-Safe Digital Output (F-DO), PROFIsafe |
| Number of Outputs | 4 |
| Output Voltage | 24 VDC |
| Output Current | Up to 2 A per channel |
| Signal Range | 0.5 mA to 2 A |
| Power Rating | 3.5 W |
| Wiring Type | Sink/Source |
| Network Compatibility | PROFIsafe via PROFIBUS or PROFINET IM modules |
| Use with PROFINET | Supported with IM151-3 HF |
| Dimensions | 81 mm (H) × 30 mm (W) × 52 mm (D) |
| Width | 30 mm (Single Unit) |
| System Compatibility | ET 200S Distributed I/O System |
Information About 6ES7138-4FB04-0AB0
The 6ES7138-4FB04-0AB0 is part of the Siemens SIMATIC ET 200S family, designed specifically for safety-integrated automation tasks. Its construction features a compact 30 mm-wide form factor that fits ET 200S terminal modules, supporting efficient panel layout and modular expansion. The module integrates seamlessly with ET 200S PROFIsafe interface modules, including IM151 variants for PROFIBUS and IM151-3 HF for PROFINET operation. Typical applications include emergency stop circuits, fail-safe outputs for safety relays, and controlled shutdown of actuators in machinery requiring Safety Integrated technology.
Key Features:
- Four Fail-Safe Outputs: Provides four independent 24 VDC outputs for safety-related actuators.
- PROFIsafe Functionality: Supports safety communication over PROFIBUS and PROFINET via ET 200S IM modules.
- High Output Capacity: Each channel supports loads up to 2 A, accommodating a wide range of devices.
- Compact ET 200S Design: 30 mm width allows dense modular configurations in distributed I/O stations.
- Sink/Source Capability: Flexible wiring for various actuator and system requirements.
- Integrated Diagnostics: Supports status monitoring and safety diagnostics through the ET 200S platform.
- Versatile Network Use: Usable in both PROFIBUS and PROFINET systems when paired with the correct interface module.
- Safety-Certified Operation: Designed for SIL-rated and safety-integrated automation environments.
The 6ES7138-4FB04-0AB0 delivers the reliability and precision required for safe, controlled actuation in automated industrial systems.
