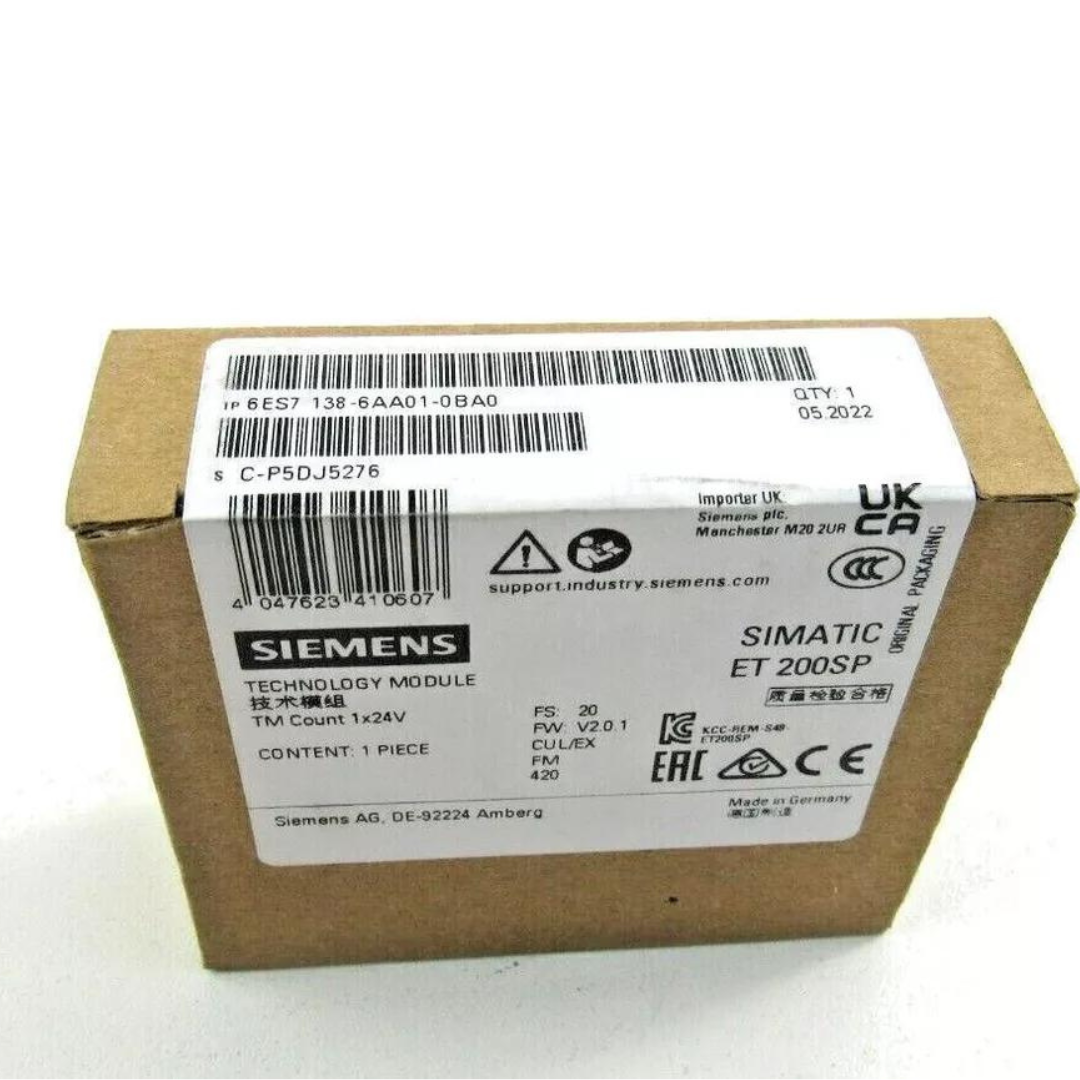

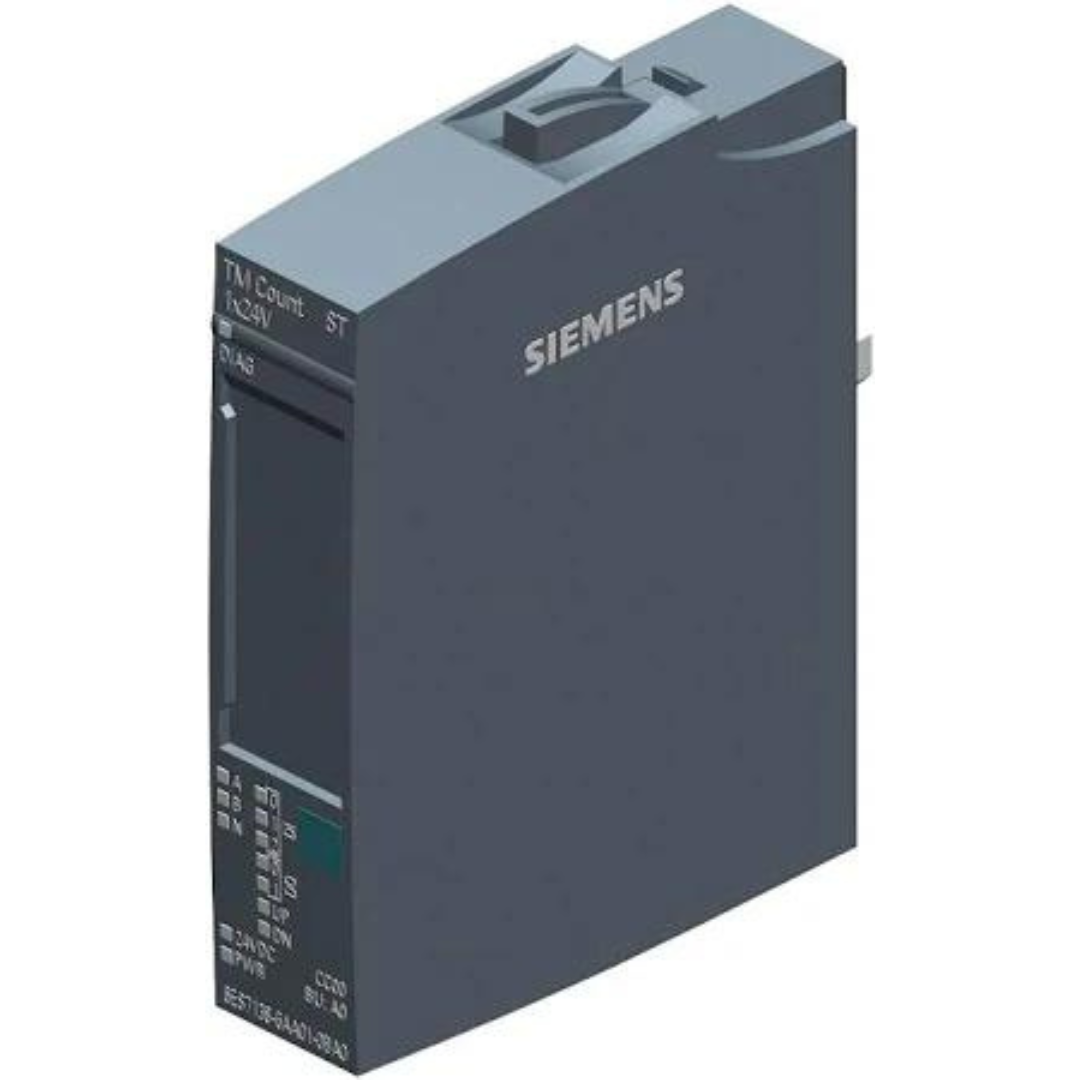

6ES7138-6AA01-0BA0 | Siemens ET 200SP 24 VDC Counter Module with Digital I/O
- Regular price
- $229.90
- Sale price
- $229.90
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6ES7138-6AA01-0BA0
Description
The Siemens 6ES7138-6AA01-0BA0 is a SIMATIC ET 200SP counter module designed for high-speed counting and signal processing in distributed automation systems. It provides one 24 VDC counting channel along with additional digital I/O for versatile machine-level control. Built for precise pulse detection, the module integrates seamlessly into ET 200SP stations for real-time industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Counter Module |
| Part Number | 6ES7138-6AA01-0BA0 |
| Subcategory | ET 200SP Counter Module |
| System Compatibility | SIMATIC ET 200SP |
| Counting Channel | 1 × 24 VDC counter input |
| Digital Inputs | 3 digital inputs |
| Digital Outputs | 2 solid-state outputs |
| Supply Voltage Range | 19.2–28.8 VDC |
| Mounting Type | DIN rail |
| Termination Style | Screw terminal |
| Operating Temperature | –30 °C to +60 °C |
| Ingress Protection | IP20 |
| Communication | ET 200SP backplane internal bus |
| Module Function | High-speed counting and digital signal processing |
| Application | Machine automation and decentralized control |
Information About 6ES7138-6AA01-0BA0
The 6ES7138-6AA01-0BA0 is part of the Siemens SIMATIC ET 200SP family, developed to provide compact, modular, and scalable I/O solutions. As an interface module, it serves as the head module of an ET 200SP station, connecting local I/O modules to PROFINET networks. It supports standard and real-time Ethernet communication, allowing flexible integration with SIMATIC S7 controllers and other PROFINET-enabled systems. The module features integrated diagnostic functions, addressing switches, and status LEDs for network and module monitoring. With its slim design and easy installation on base units, the 6ES7138-6AA01-0BA0 simplifies wiring and reduces control panel space requirements while maintaining reliable system performance.
Key Features:
- Design: Interface module for SIMATIC ET 200SP distributed I/O.
- Function: Connects ET 200SP I/O modules to PROFINET networks.
- Communication: Supports standard and real-time PROFINET communication.
- Diagnostics: Built-in LED indicators and system diagnostics for monitoring.
- Compatibility: Works with SIMATIC S7 controllers and PROFINET-enabled systems.
- Installation: Slim, modular design for panel space efficiency.
- Scalability: Supports expansion with multiple ET 200SP I/O modules.
- Application Range: Ideal for machine automation, process control, and decentralized systems.
The 6ES7138-6AA01-0BA0 delivers the connectivity, diagnostics, and scalability required for reliable integration of distributed I/O into PROFINET-based automation systems.
