6ES7151-1BA02-0AB0 | Siemens | Interface Module
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

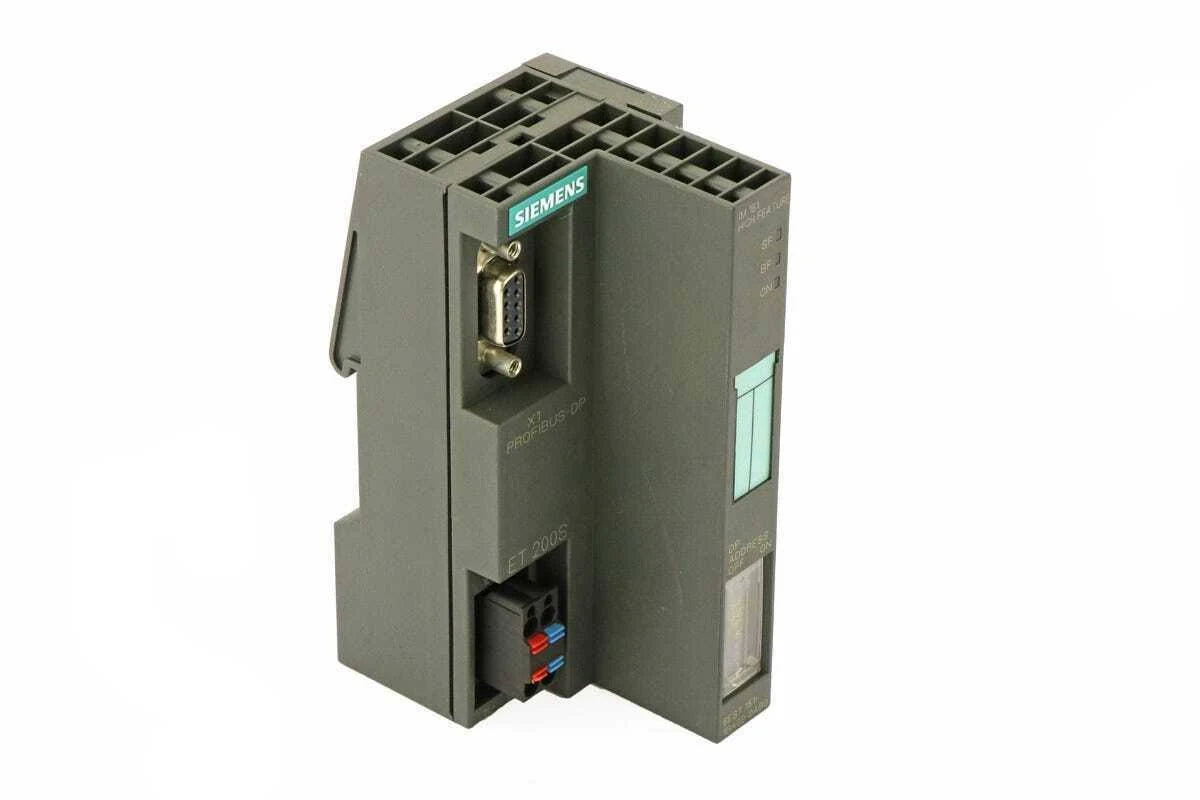

Product Description P/N: 6ES7151-1BA02-0AB0
Description
The Siemens 6ES7151-1BA02-0AB0 is an integral part of the SIMATIC DP ET 200S Distributed I/O System, specifically the IM 151-1 High Feature Interface Module designed for PROFIBUS DP communication. This interface module operates without an integrated CPU and is designed for use in industrial settings, providing reliable and high-performance connectivity for distributed I/O applications.
Technical Specifications
|
Part # |
6ES7151-1BA02-0AB0 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Data transmission rate |
9.6; 19.2; 45.45; 93.75; 187.5; 500 kBaud, 1.5; 3; 6; 12 Mbit/s |
|
Bus protocol |
PROFIBUS DP |
|
Interface |
RS 485 |
|
SYNC capability |
Yes |
|
FREEZE capability |
Yes |
|
Manufacturer ID |
80E0H |
|
Direct data exchange |
Yes |
|
Cycle synchronization |
Yes, from 1.5 Mbits/s |
|
Parameter length |
27 bytes, 56 bytes (if cycle synchronization is active) |
|
Address space |
244 bytes I/O |
|
Option handling |
With reserve module, Without reserve module |
|
I&M data |
Yes |
|
Firmware update |
Via PROFIBUS DP with HW Config |
|
Max. output current |
80 mA |
|
Rated supply voltage |
24 VDC |
|
Incorrect polarity protection |
Yes, Power failure bypass Min. 20 ms |
|
Galvanic isolation |
Between the PROFIBUS DP and electronic components: Yes |
|
Permitted potential difference (to the rail) |
75 VDC / 60 VAC |
|
Insulation test voltage |
500 VDC |
|
Current consumption |
Approx. 200 mA |
|
Power dissipation |
Typically 3.3 W |
Information About 6ES7151-1BA02-0AB0
The Siemens 6ES7151-1BA02-0AB0 ET200S IM151-1HF PROFIBUS DP Interface Module operates at a speed of 12Mbps. It is designed as part of the Siemens 6ES7 151-1BA02-0AB0 SIMATIC DP IM 151-1 High Feature Interface Module for the ET 200S Distributed I/O System. This module functions without a CPU and offers a data volume of 244 bytes for each input and output parameter.
With the capability to accommodate up to 63 peripheral modules, including Power Modules, Electronic Modules, or Motor Starter Modules, the 6ES7151-1BA02-0AB0 provides versatility in system configuration. It features a single RS-485 Interface supporting PROFIBUS DP V0 & V1 protocols, facilitating communication with other devices in the network.
The module is designed for seamless integration, allowing widths of up to 2 meters to be connected. It supports Isochronous Mode and Option Handling Functionality, offering flexibility in operation with or without Reserve Modules.
Equipped with a 9-Pin SUB-D Bus Interface Connector, the 6ES7151-1BA02-0AB0 includes a Terminating Module for enhanced connectivity and signal termination. It operates with a standard 24V DC Power supply, ensuring compatibility with common power sources in industrial environments.
With its robust design and comprehensive feature set, the Siemens 6ES7151-1BA02-0AB0 serves as a vital component in industrial automation and control systems. Its high-speed data transmission capabilities, combined with extensive compatibility and flexible configuration options, make it suitable for a wide range of applications.
