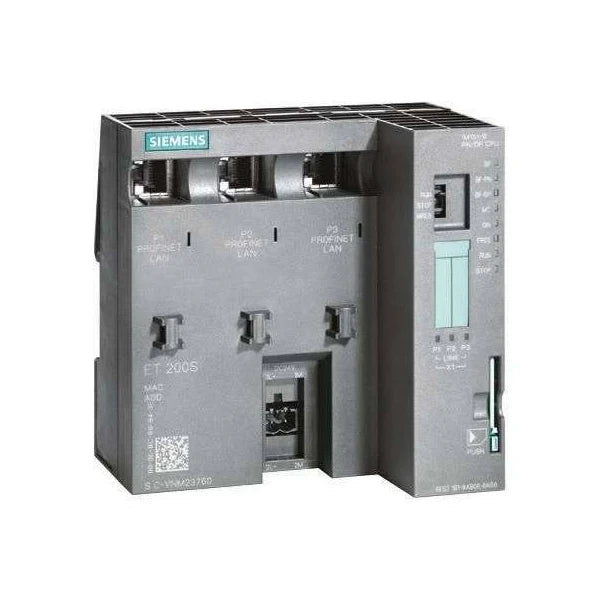

6ES7151-8AB01-0AB0 | Siemens | CPU Interface Module
- Regular price
- $1,488.00
- Sale price
- $1,488.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7151-8AB01-0AB0
Description
The Siemens 6ES7151-8AB01-0AB0 is an ET200S IM151-8 PN/DP CPU Interface Module designed for the SIMATIC S7 DP system. This interface module integrates an S7-CPU 314 with 192KB memory allocated for user programs and data, including 64KB of retentive memory.
Equipped with a 100Mbps Ethernet interface supporting PROFINET (PROFINET IO Controller and Device Mode), the module features an integrated 3-port switch and 3 RJ45 bus interface connectors. It offers connectivity for widths of up to 2m and requires a Micro Memory Card for CPU operation.
Technical Specifications
|
Part # |
6ES7151-8AB01-0AB0 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack I/O MODULE |
|
Voltage Rating |
24VDC |
|
Work Memory |
192KB |
|
Interface |
PROFINET INTERFACE AS I/O CONTROLLER |
|
RJ45 Ports |
Three |
|
Battery |
Without |
|
Memory Card Required |
MMC Required |
|
Model |
ET200S |
|
CPU |
IM151-8 PN/DP CPU |
|
Series |
SIMATIC DP |
|
Mounting |
DIN Rail Mount |
Information About 6ES7151-8AB01-0AB0
The Siemens 6ES7151-8AB01-0AB0 is an ET200S IM151-8 PN/DP CPU Interface Module designed for the SIMATIC S7 DP IM 151-8 PN/DP CPU Interface Module for the ET 200S Distributed I/O System. It features an integrated S7-CPU 314 and 192KB memory for user programs and data, including 64KB of retentive memory.
Equipped with a 1 x 100Mbps EtherNet interface, it supports PROFINET (PROFINET IO Controller and Device Mode) with an integrated 3-port switch, allowing connectivity for up to 2 meters in width. The module also features 3 x RJ45 bus interface connectors for enhanced connectivity options.
To operate the CPU, a micro memory card is required. The module can communicate over PROFIBUS DP with an additional DP Master Module and supports media redundancy. It operates on a 24V DC power supply.
The integration of the S7-CPU 314 and the generous memory capacity make this module suitable for various industrial automation applications requiring distributed I/O systems. Its compatibility with PROFINET and PROFIBUS DP protocols ensures seamless communication with other devices in the network.
The inclusion of an EtherNet interface expands networking capabilities, allowing for efficient data exchange and communication between devices. The integrated 3-port switch enhances network flexibility and scalability.
With its support for media redundancy, the module enhances system reliability and availability by providing backup options in case of network failures. Additionally, the termination module is included, facilitating easy installation and configuration.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
