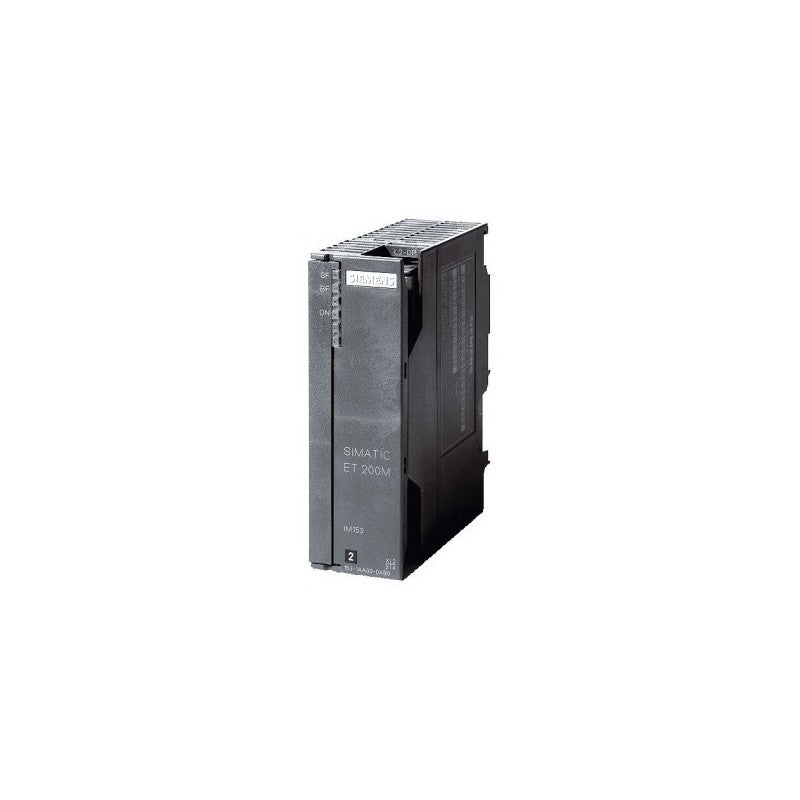

6ES7153-2AR04-0XA0 | Siemens SIMATIC ET 200M Bus Module, 24 VDC, IP20, Redundant PROFIBUS Interface
- Regular price
- $1,584.00
- Sale price
- $1,584.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7153-2AR04-0XA0
Description
The Siemens 6ES7153-2AR04-0XA0 SIMATIC DP ET 200M Bus Module is a high-performance interface module designed for distributed I/O systems. It serves as a communication link between the ET 200M station and higher-level automation systems, ensuring reliable data exchange and process control. This module is ideal for industrial applications requiring flexible configuration, redundancy, and dependable operation in automation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Automation & Control |
| Part Number | 6ES7153-2AR04-0XA0 |
| Subcategory | Bus Module |
| Type | SIMATIC DP, ET 200M Redundant Bus Module |
| Supply Voltage (DC) | 20.4 – 28.8 VDC |
| Communication Interface | PROFIBUS DP |
| Protocol Support | No TCP/IP (Ethernet) |
| Potential Separation | Yes (galvanic isolation) |
| Degree of Protection | IP20 |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Mounting Type | DIN Rail |
| Bus Module Included | IM 153-2HF, Internal Bus Module (6ES7195-7HD10-0XA0) |
| Redundancy | Supported (High-Availability System) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +85 °C |
| Relative Humidity | Up to 95%, non-condensing |
| Enclosure Material | Industrial-grade plastic housing |
| Application | Distributed I/O, Industrial Automation, Process Control |
| Weight | Approx. 0.45 kg (1.0 lb) |
Information About 6ES7153-2AR04-0XA0
The 6ES7153-2AR04-0XA0 is part of the Siemens SIMATIC ET 200M series, an advanced distributed I/O system for PROFIBUS DP networks. It supports redundant operation (IM 153-2 HF) for high-availability configurations and includes a bus module for internal communication. With an input voltage range of 20.4 to 28.8 VDC, the unit provides consistent power delivery and features galvanic isolation between bus and interface sections. The IP20-rated enclosure ensures safe operation in control cabinets, making it suitable for industrial automation, process control, and distributed signal interfacing.
Key Features:
- Redundant Communication: Designed for high-availability PROFIBUS DP systems with dual IM modules.
- Reliable Power Range: Operates between 20.4 and 28.8 VDC for stable performance in automation networks.
- Integrated Bus Module: Includes IM 153-2HF modules and a 1x internal bus connector for secure data transfer.
- Galvanic Isolation: Provides potential separation between communication and power circuits for enhanced safety.
- Compact Design: Space-saving module with a width of 40 mm and height of 125 mm.
- High System Compatibility: Fully compatible with SIMATIC S7 controllers and distributed I/O stations.
- Easy Installation: DIN rail mounting with standard terminal interface connections.
- Protection Class IP20: Suitable for control cabinet environments with minimal maintenance requirements.
- Rugged Construction: Designed for continuous industrial operation under demanding conditions.
The 6ES7153-2AR04-0XA0 delivers the reliability and stability required for distributed control systems and industrial automation networks.
