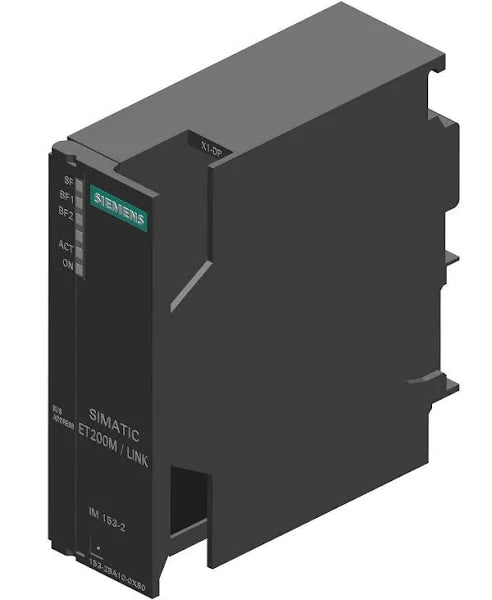

Part #: 6ES7153-2BA10-0XB0 Manufactured by: Siemens
Regular price
$424.00
Sale price
$424.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens 6ES7153-2BA10-0XB0 SIMATIC ET200M IM153-2 HF Interface Module, designed for the SIMATIC ET 200M Distributed I/...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6ES7153-2BA10-0XB0
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 6ES7153-2BA10-0XB0

Description / Specifications

Description


The Siemens 6ES7153-2BA10-0XB0 is a SIMATIC ET200M IM153-2 HF Interface Module designed for integration within the distributed I/O system. It serves as a high-feature interface module for the SIMATIC S7 DP IM 153-2 series, supporting up to 12 S7-300 modules for enhanced scalability and flexibility in industrial automation setups.

Equipped with a single RS-485 PROFIBUS DP interface operating at 12Mbps, this module functions as a slave device within the PROFIBUS network. It supports various advanced functionalities including Remove/Insertion Under Power, Redundancy, and Time Stamping, facilitating seamless operation and maintenance of the distributed control system.





Technical Specifications





Part #

6ES7153-2BA10-0XB0

Manufacturer

SIEMENS

Category

PLCs/Machine Control

Subcategory

VDC Logic I/O Module ET200M IM153-2 HF

Subcategory

HIGH FEATURE FOR MAX S7-300 MODULES WITH

 Subcategory

REDUNDANCY

ETIM Group

Programmable logic controllers PLC

ETIM Class

Fieldbus, decentr. periphery - comm. mod

Degree of protection (IP)

IP20

Depth

117mm

Explosion safety category for dust

None

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supply voltage DC

20.4 - 28.8V

System accessory

true

Voltage type of supply voltage

DC

Wall mounting/direct mounting

false

Width

40mm

With potential separation

true





Information About 6ES7153-2BA10-0XB0



The Siemens 6ES7153-2BA10-0XB0 SIMATIC ET200M IM153-2 HF Interface Module is a critical component within the Siemens SIMATIC S7 distributed I/O system. It serves as the High-Feature Interface Module for the ET 200M system, offering advanced functionality and compatibility with various Siemens controllers.

The 6ES7153-2BA10-0XB0 module is designed to integrate seamlessly into the ET 200M distributed I/O system, providing reliable communication and data transfer between the I/O modules and the central controller. With its robust construction and advanced features, this interface module enhances the flexibility and performance of industrial automation systems.

This interface module supports up to 12 S7-300 modules, allowing for extensive expansion and scalability to meet the demands of complex automation applications. The RS-485 PROFIBUS DP interface enables high-speed data transmission between the ET 200M system and other devices on the network, ensuring efficient communication and data exchange.

The module's support for Remove/Insertion Under Power (RIUP) simplifies maintenance and troubleshooting tasks, minimizing downtime and optimizing system availability. Additionally, its redundancy and time-stamping capabilities enhance system reliability and accuracy, critical for mission-critical applications.

The 6ES7153-2BA10-0XB0 module is suitable for Isochronous Mode operation, offering enhanced synchronization and coordination capabilities for precise control and monitoring tasks. With extended features such as support for 64-point modules and 32 signals per slot, this module provides versatility and compatibility with a wide range of industrial devices and sensors.

Featuring an IP20 protection rating, the module offers adequate protection against dust and debris ingress, making it suitable for use in harsh industrial environments. Its 24V DC power supply ensures compatibility with standard industrial power systems, facilitating easy integration into existing infrastructure.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description


The Siemens 6ES7153-2BA10-0XB0 is a SIMATIC ET200M IM153-2 HF Interface Module designed for integration within the distributed I/O system. It serves as a high-feature interface module for the SIMATIC S7 DP IM 153-2 series, supporting up to 12 S7-300 modules for enhanced scalability and flexibility in industrial automation setups.

Equipped with a single RS-485 PROFIBUS DP interface operating at 12Mbps, this module functions as a slave device within the PROFIBUS network. It supports various advanced functionalities including Remove/Insertion Under Power, Redundancy, and Time Stamping, facilitating seamless operation and maintenance of the distributed control system.





Technical Specifications





Part #

6ES7153-2BA10-0XB0

Manufacturer

SIEMENS

Category

PLCs/Machine Control

Subcategory

VDC Logic I/O Module ET200M IM153-2 HF

Subcategory

HIGH FEATURE FOR MAX S7-300 MODULES WITH

 Subcategory

REDUNDANCY

ETIM Group

Programmable logic controllers PLC

ETIM Class

Fieldbus, decentr. periphery - comm. mod

Degree of protection (IP)

IP20

Depth

117mm

Explosion safety category for dust

None

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supply voltage DC

20.4 - 28.8V

System accessory

true

Voltage type of supply voltage

DC

Wall mounting/direct mounting

false

Width

40mm

With potential separation

true





Information About 6ES7153-2BA10-0XB0



The Siemens 6ES7153-2BA10-0XB0 SIMATIC ET200M IM153-2 HF Interface Module is a critical component within the Siemens SIMATIC S7 distributed I/O system. It serves as the High-Feature Interface Module for the ET 200M system, offering advanced functionality and compatibility with various Siemens controllers.

The 6ES7153-2BA10-0XB0 module is designed to integrate seamlessly into the ET 200M distributed I/O system, providing reliable communication and data transfer between the I/O modules and the central controller. With its robust construction and advanced features, this interface module enhances the flexibility and performance of industrial automation systems.

This interface module supports up to 12 S7-300 modules, allowing for extensive expansion and scalability to meet the demands of complex automation applications. The RS-485 PROFIBUS DP interface enables high-speed data transmission between the ET 200M system and other devices on the network, ensuring efficient communication and data exchange.

The module's support for Remove/Insertion Under Power (RIUP) simplifies maintenance and troubleshooting tasks, minimizing downtime and optimizing system availability. Additionally, its redundancy and time-stamping capabilities enhance system reliability and accuracy, critical for mission-critical applications.

The 6ES7153-2BA10-0XB0 module is suitable for Isochronous Mode operation, offering enhanced synchronization and coordination capabilities for precise control and monitoring tasks. With extended features such as support for 64-point modules and 32 signals per slot, this module provides versatility and compatibility with a wide range of industrial devices and sensors.

Featuring an IP20 protection rating, the module offers adequate protection against dust and debris ingress, making it suitable for use in harsh industrial environments. Its 24V DC power supply ensures compatibility with standard industrial power systems, facilitating easy integration into existing infrastructure.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
