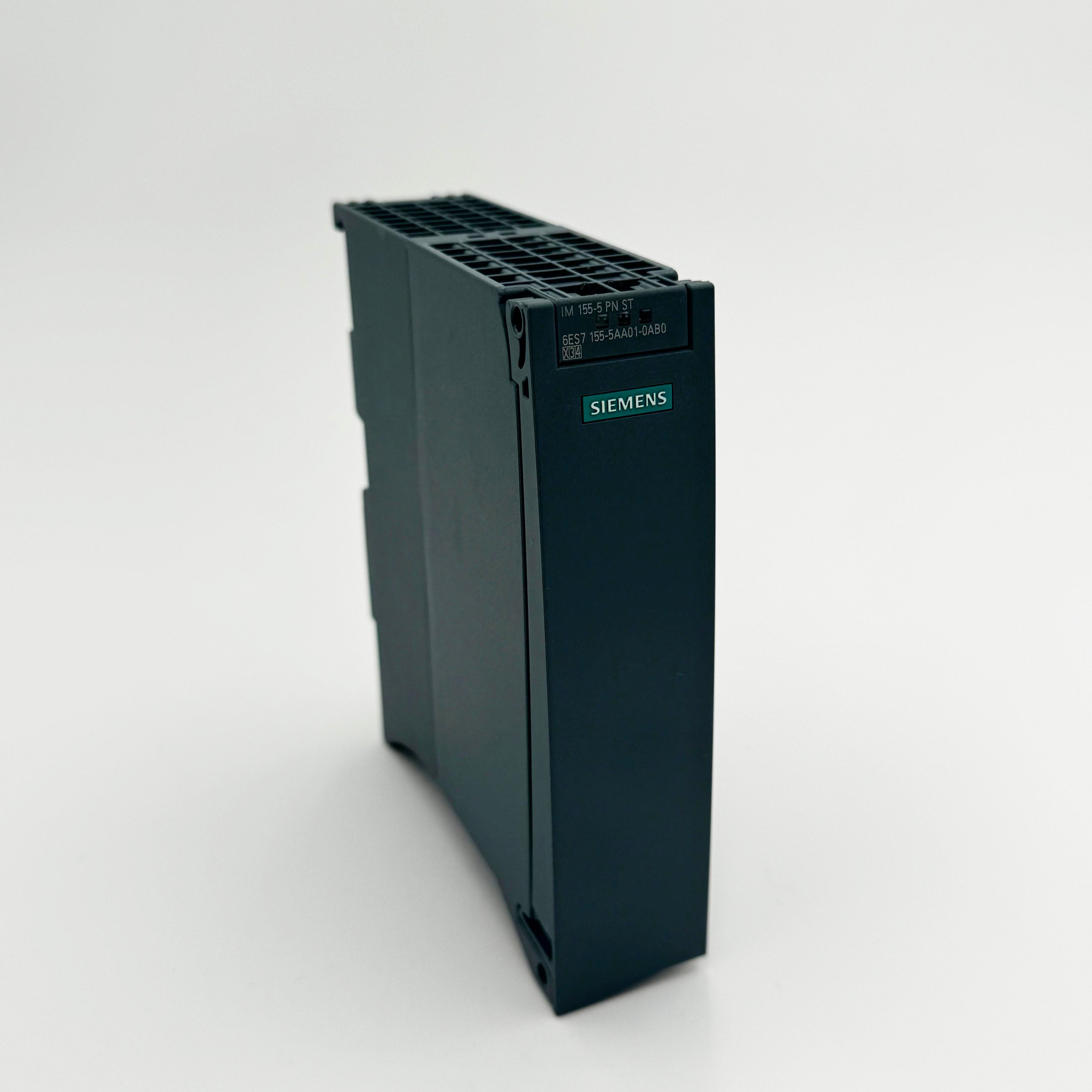

6ES7155-5AA01-0AB0 | SIEMENS SIMATIC ET200MP IM155-5 PN ST Profinet I/O Module
- Regular price
- $514.00
- Sale price
- $514.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7155-5AA01-0AB0
Description
Siemens 6ES7 155-5AA01-0AB0 SIMATIC ET 200MP IM155-5 PN ST Profinet I/O Interface Module for connecting Up to 12 I/O Modules without Additional PS, Up to 30 I/O Modules with Additional PS Shared device, MRP, IRT >=0.25ms, Isochronicity FW-Update, I&M0...3; Fast Startup with 500ms.
Technical Specifications
| Brand | SIEMENS |
| Part Number | 6ES7155-5AA01-0AB0 |
| Main function | Remote I/O controller |
| Category | Controls & Indicators |
| Subcategory | CPU/Control Board |
| Product series / family name | SIMATIC |
| Sub-range name | ET 200MP |
| Functions | Ruggedized PROFINET remote I/O controller interface module |
| Design | cabinet I/O Standard version |
| Supply voltage (DC) | 20.4Vdc-28.8Vdc (24Vdc nom.) |
| Display | LED indicator |
| Connection capacity | 30 x I.O. modules |
| Connection type | RJ45 connectors x 2 |
| Communication protocol | PROFINET PROFINET IO |
| Mounting mode | Backplane / rack |
| Speed | 100Mbit/s |
| Net Height (mm) | 147 mm |
| Net Width (mm) | 35 mm |
| Net Depth (mm) | 129 mm |
| Ambient air temperature for operation | -25...+60 °C |
| Technical compatibility with | SIMATIC S7-1500 |
| Power dissipation/losses | 4.5 W |
Information About 6ES7155-5AA01-0AB0
The Siemens SIMATIC ET 200MP IM155-5 PN ST (6ES7155-5AA01-0AB0) is a robust PROFINET I/O module, designed for cabinet-mounted applications within the SIMATIC family. As part of the ET 200MP sub-range, it serves as a ruggedized remote I/O controller interface, providing reliable communication and control in industrial environments.
Operating on a supply voltage of 20.4Vdc to 28.8Vdc (24Vdc nominal), this module supports a diverse array of I/O modules with a connection capacity of up to 30 units. The LED indicator display enhances visual monitoring of the module's status. The communication protocol employed is PROFINET IO, ensuring seamless integration into industrial networks with a speed of 100Mbit/s.
The module features two RJ45 connectors for connectivity and operates within an ambient air temperature range of -25 to +60 °C. Its backplane/rack mounting mode facilitates easy integration into the system. With dimensions of 147mm (height), 35mm (width), and 129mm (depth), it provides a compact and space-efficient solution.
This SIMATIC ET 200MP module is technically compatible with the SIMATIC S7-1500, offering flexibility and scalability in automation systems. With a power dissipation of 4.5W, it strikes a balance between performance and energy efficiency. The IM155-5 PN ST demonstrates Siemens' commitment to delivering advanced and reliable solutions for industrial automation.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
