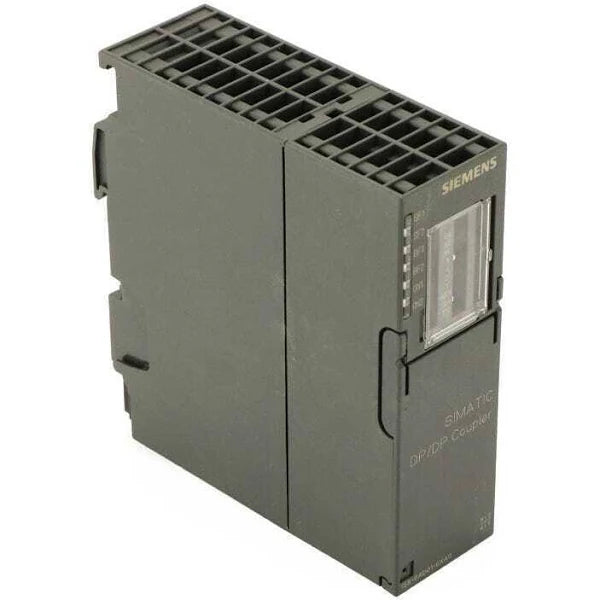

6ES7158-0AD01-0XA0 | Siemens SIMATIC DP/DP Bus Coupling Module for PROFIBUS DP

Description

Technical Specifications

Information About 6ES7158-0AD01-0XA0

The 6ES7158-0AD01-0XA0 is part of the Siemens SIMATIC DP distributed I/O platform and is housed in an S7-300 form factor. It is engineered to function as an interface between two independent PROFIBUS DP networks, allowing them to communicate without merging into a single bus. The module supports redundant current infeed to improve system availability and reliability. It is typically used in complex automation architectures where PROFIBUS networks must be segmented for performance, topology, or organizational reasons while maintaining coordinated data exchange.

Key Features:

• DP/DP bus coupler design: Connects two independent PROFIBUS DP networks.
• SIMATIC DP compatibility: Integrates into Siemens distributed I/O systems.
• High-speed communication: Supports PROFIBUS DP data rates up to 12 Mbit/s.
• S7-300 form factor: Designed for installation in standard Siemens housings.
• 24 VDC power supply: Compatible with common industrial control power systems.
• Redundant current infeed support: Enhances system availability.
• Transparent data exchange: Enables efficient communication between DP segments.
• Industrial-grade construction: Suitable for continuous operation in automation environments.

The 6ES7158-0AD01-0XA0 delivers the reliability and precision required for PROFIBUS DP network coupling in distributed industrial automation systems.
