Product Description P/N: 6ES7158-3AD10-0XA0

Description / Specifications

Description

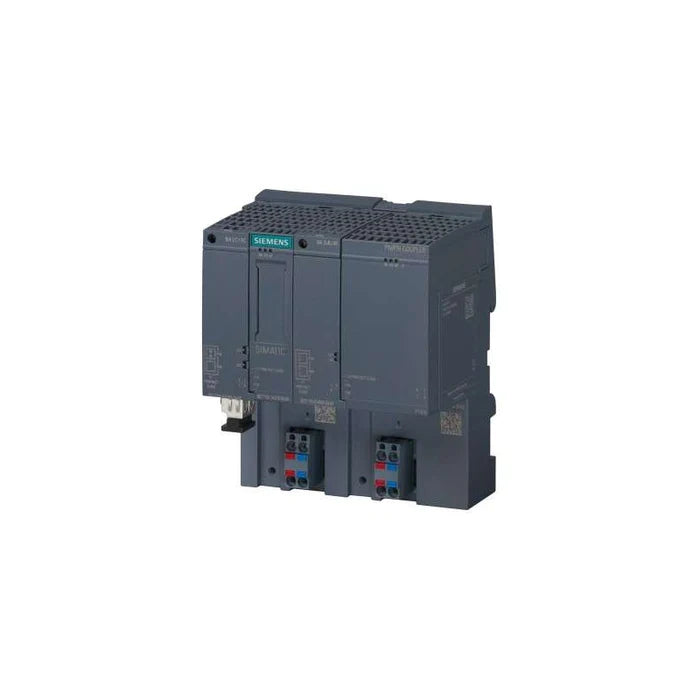

The Siemens 6ES7158-3AD10-0XA0 is a SIMATIC PN/PN coupler designed to enable data exchange between two separate PROFINET networks. It provides a simple and transparent connection between two PROFINET IO controllers without requiring any programming.





Technical Specifications

Brand Siemens
Part Number 6ES7158-3AD10-0XA0
Mounting Mounting rail 7.5 mm and 15 mm
Supply Voltage (DC) 24 V
Permissible Voltage Range 19.2 V - 28.8 V
Reverse Polarity Protection Yes
Input Current (max) 360 mA
Power Loss (typical) 4 W
Address Space per Module (max) 254 bytes
Address Space per Station (max) 1,440 bytes
Number of Submodules per Station (max) 116
PROFINET Interfaces 2
Optical Interface Yes, via SIMATIC BusAdapter
Transmission Rate (max) 100 Mbit/s
Dimensions (W x H x D) 100 mm x 117 mm x 74 mm
Ambient Temperature during Operation -30 °C to 60 °C





Information About 6ES7158-3AD10-0XA0

The 6ES7158-3AD10-0XA0 is part of the Siemens SIMATIC PN/PN coupler family, developed to support seamless data transfer between autonomous PROFINET networks. It features two independent PROFINET interfaces (RJ45), each acting as an IO device on its respective PROFINET network. The module allows cyclic data exchange of up to 1024 bytes input and 1024 bytes output per side, enabling high-volume data transfer between systems. It requires no user program logic—data mapping is configured via TIA Portal and exchanged automatically. Diagnostic LEDs provide real-time status information to simplify commissioning and maintenance. Galvanic isolation between the two networks ensures safe and interference-free communication.

Key Features:

  • Design: PN/PN coupler for connecting two separate PROFINET networks.
  • Interfaces: Two RJ45 PROFINET ports, electrically isolated from each other.
  • Data Transfer: Supports up to 1024 bytes of I/O data per side.
  • Functionality: Operates as an IO device on both networks, requiring no programming.
  • Integration: Configured using Siemens TIA Portal engineering software.
  • Diagnostics: Built-in LED indicators for network and device status.
  • Reliability: Galvanic isolation ensures safe communication between networks.
  • Application Range: Suitable for system integration, distributed control, and process automation.

The 6ES7158-3AD10-0XA0 delivers the simplicity, performance, and reliability required for seamless data exchange between independent PROFINET automation networks.
