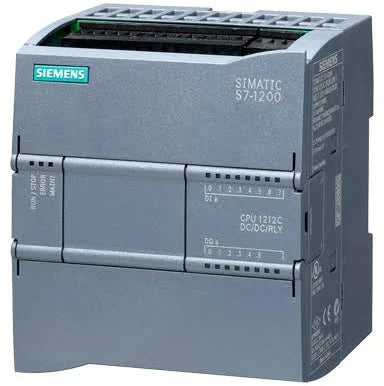

6ES7212-1HE40-0XB0 | SIEMENS SIMATIC S7-1200 CPU 1212C Controller DC/DC/Relay 75KB

Description

Siemens 6ES7 212-1HE40-0XB0 SIMATIC S7-1200 CPU 1212C Compact Controller with PROFINET (EtherNet) Interface, 75 Kbytes User Memory for User Data, (8) 24V DC Digital Inputs Sink/Source, (6) Relay Contact Digital Outputs, (2) Analog Inputs, 0-10V DC, Integrated 20.4-28.8V DC Power Supply

Technical Specifications

Information About 6ES7212-1HE40-0XB0

SIMATIC PLC CPU-Module, Compact, Voltage Rating: 24 VDC (20.4 - 28.8 VDC), Memory: 75 KB (Data), 1 MB (Program), Interface: PROFINET Ethernet, CPU Processing Times: 0.085 MICS (Bit)/Instruction, 75 MM Depth, 90 MM Width, 100 MM Height, Power Dissipation: 9 WTT, Programming Package: STEP 7 V13 SP1 or Higher, Programming Languages: LAD, FBD, SCL, Supporting Protocols: TCP/IP, ISO-on-TCP(RFC1006), UDP, Transmission Rate: 100 MBPS, 16 (Dynamically) Connections, Input: 8 Digital, 2 Analog, 6 Digital Output, Output Current: 1000 MILAMP, Input Voltage For signal Type "0": 5 VDC at 1 MILAMP, Switching Frequency: 1 HZ, Operating Temperature Range: -20 To 60 DEG C, Input Voltage For signal Type "1": 15 VDC at 2.5 MILAMP, Display: No, For Use With: SIMATIC S7-1200, Communication/Protocol: S7 Communication Supported as Server and as Client, Connecting Cable: 500 M (Shielded), 150 M (Unshielded), Input Current For Signal Type "1": 1 MILAMP, Isolation: 500 VAC For 1 Min, Switching Delay: 10 MS (0 - 1), 10 MS (1 - 0), IP20 Enclosure, EEPROM Memory, 2G Wall Mount, 1G DIN Rail Mount, Line Frequency: 47 - 63 HZ, Operating Cycles: 10 Million (Mechanically), 100,000(Rated Load Voltage ), Amperage Rating: 400 MILAMP

SIMATIC S7-1200 basic controllers impress with their comprehensive range of technological functions and integrated IOs as well their particularly compact space-efficient design. They are the intelligent choice for all everyday automation tasks with a small project scope. SIMATIC HMI Basic Panels 2nd generation are the ideal entry-level series for simple HMI applications. The device series offers panels with 4", 7", 9" and 12" displays, and combined key or touch operation

SIMATIC WinCC in the Totally Integrated Automation Portal (TIA Portal) is part of a new, integrated engineering concept which offers a uniform engineering environment for programming and configuration of control, visualization and drive solutions. The engineering framework has been optimized for the highest level of user friendliness. It integrates controllers, distributed I/O, HMI, drives, motion control and motor management.

Features:
Innovative design and easy operation
Compact construction with integrated IOs and flexibility due to the board concept
Security Integrated Security thanks to protected access to the CPU and program copy protection
Technology Integrated Incorporated functions and flexible connection of drives
Versatile diagnostics - System diagnostics indicate error messages in plaintext in the TIA Portal on the HMI or web server
Efficient engineering With SIMATIC STEP 7 Basic in the TIA Portal
Safety Integrated Fail-safe CPUs for the execution of standard and safety-related programs
Flexible integration into all network structures PROFINET, PROFIBUS, AS-i, IO-Link, CANopen or even connection to remote control centers
Use in extreme ambient conditions as SIPLUS S7-1200 version

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
