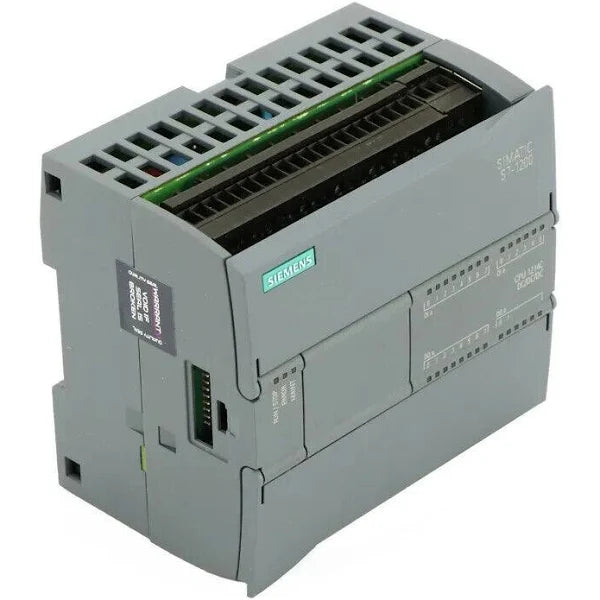

6ES7214-1AG40-0XB0 | Siemens S7-1200 CPU 1214C Compact Controller with PROFINET & Integrated I/O
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6ES7214-1AG40-0XB0
Description
The Siemens 6ES7214-1AG40-0XB0 is a SIMATIC S7-1200 CPU 1214C compact controller featuring integrated PROFINET communication and onboard digital and analog I/O. It provides 100 kB of user memory, 14 digital inputs, 10 transistor outputs, and two 0–10 V analog inputs for versatile automation tasks. Designed with an integrated 24 VDC power supply, it supports flexible installation in compact control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Controls & Indicators |
| Part Number | 6ES7214-1AG40-0XB0 |
| Subcategory | CPU/Control Board |
| Design | Compact CPU (DC/DC/DC) |
| Digital Inputs | 14 |
| Digital Outputs | 10 (transistor) |
| Analog Inputs | 2 (0–10 V) |
| Memory | 100 kB |
| Communication | PROFINET/Ethernet |
| Real-Time Clock | Yes |
| Alarm Inputs | Yes |
| Limit/Pulse Frequency | 100 kHz |
| Software | STEP 7 Basic (TIA Portal) |
| Input/Supply Voltage | 24 VDC |
| Permissible Range | 20.4–28.8 VDC |
| Continuous Output Current | 0.5 A |
| Switching Frequency | 100 kHz |
| Analog Resolution | 10-bit |
| Short Circuit Protection | No |
| Mounting | 35 mm DIN rail |
| Connection Type | Screw terminals |
| Protection Rating | IP20 |
| Ambient Temperature Range | -20…60°C |
| Dimensions (H × W × D) | 110 × 100 × 75 mm |
| Approvals | CE, UL, cULus |
Information About 6ES7214-1AG40-0XB0
The 6ES7214-1AG40-0XB0 is part of the SIMATIC S7-1200 family, known for its compact design and integrated functionality for small-to-medium automation systems. Its construction includes built-in I/O and a 35 mm DIN-rail mount housing, with screw-terminal connections for secure wiring. The controller supports PROFINET/Ethernet communication for programming, HMI integration, and networked automation, while STEP 7 Basic in the TIA Portal provides a unified engineering environment. Typical applications include machine control, building automation, small process systems, and OEM equipment requiring reliable digital, analog, and communication capabilities.
Key Features:
- Integrated PROFINET Interface: Supports programming, HMI connection, and network communication.
- Onboard I/O Set: Includes 14 digital inputs, 10 transistor outputs, and 2 analog 0–10 V inputs.
- Compact DC/DC/DC Design: Operates with 24 VDC supply and provides transistor output switching.
- 100 kB Memory: For user program and data handling in small to medium automation tasks.
- High-Speed Performance: Supports pulse frequencies up to 100 kHz.
- Real-Time Clock: Enables time-stamped operations and scheduled control functions.
- TIA Portal Integration: Programmed using STEP 7 Basic for unified engineering.
- Wide Temperature Range: Operates from -20°C to +60°C for demanding environments.
The 6ES7214-1AG40-0XB0 delivers the reliability and precision required for compact automation control in industrial and commercial applications.
