6ES7214-2AD23-0XB0 | Siemens | Dc power supply

Description

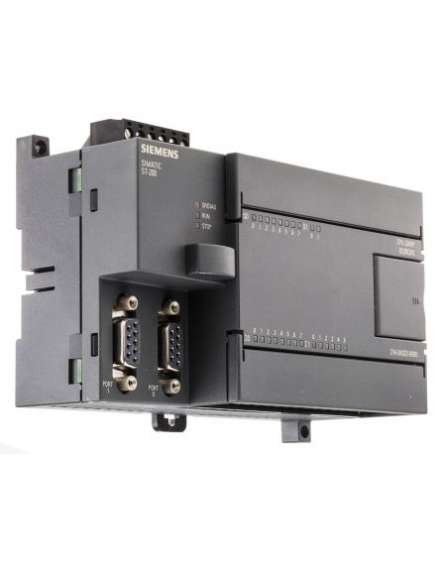

The Siemens 6ES7214-2AD23-0XB0 CPU224XP is a compact unit designed as part of the Simatic S7-200 series. It features a DC power supply and offers 14 digital input (DI) channels and 10 digital output (DO) channels, all operating with direct current. Additionally, it includes 2 analog input (AI) channels and 1 analog output (AO) channel. The CPU224XP provides a memory capacity of 12/16 KB for code and 10 KB for data storage. It is equipped with 2 PPI/Freeport ports to facilitate communication with other devices or systems.

Technical Specifications

Specifications

Information About 6ES7214-2AD23-0XB0

The Siemens 6ES7214-2AD23-0XB0 CPU224XP is a compact unit designed for industrial automation applications. It features a DC power supply and offers 14 digital inputs (DI) for DC voltage, along with 10 digital outputs (DO) also for DC voltage. Additionally, it includes 2 analog inputs (AI) and 1 analog output (AO). The CPU224XP has a memory capacity of 12/16 KB for code and 10 KB for data storage.

This Simatic S7-200 CPU 224XP from Siemens is suitable for various control and monitoring tasks within industrial environments. With its compact design and efficient performance, it is ideal for applications where space is limited, yet reliability and functionality are essential.

The CPU224XP supports a range of input and output configurations, making it versatile for different automation requirements. It is equipped with 2 PPI/Freeport ports, enabling seamless communication with other devices and systems in the network.

Featuring a DC power supply, the CPU224XP ensures stable operation even in environments where AC power sources may not be available or suitable. The 14 digital input channels allow for the connection of various sensors, switches, and other digital devices, providing ample input options for monitoring and control purposes.

Similarly, the 10 digital output channels enable the CPU to actuate relays, solenoids, and other digital actuators as part of the control process. The inclusion of 2 analog inputs further enhances the CPU's capability by allowing for the integration of analog sensors and signals into the control system.

Moreover, the presence of 1 analog output provides the flexibility to generate analog control signals, facilitating precise control over analog actuators or processes. The CPU224XP's memory capacity ensures sufficient storage for program code and data, accommodating the requirements of typical industrial automation applications.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
