6ES7214-2BD23-0XB0 | Siemens CPU Module

Description

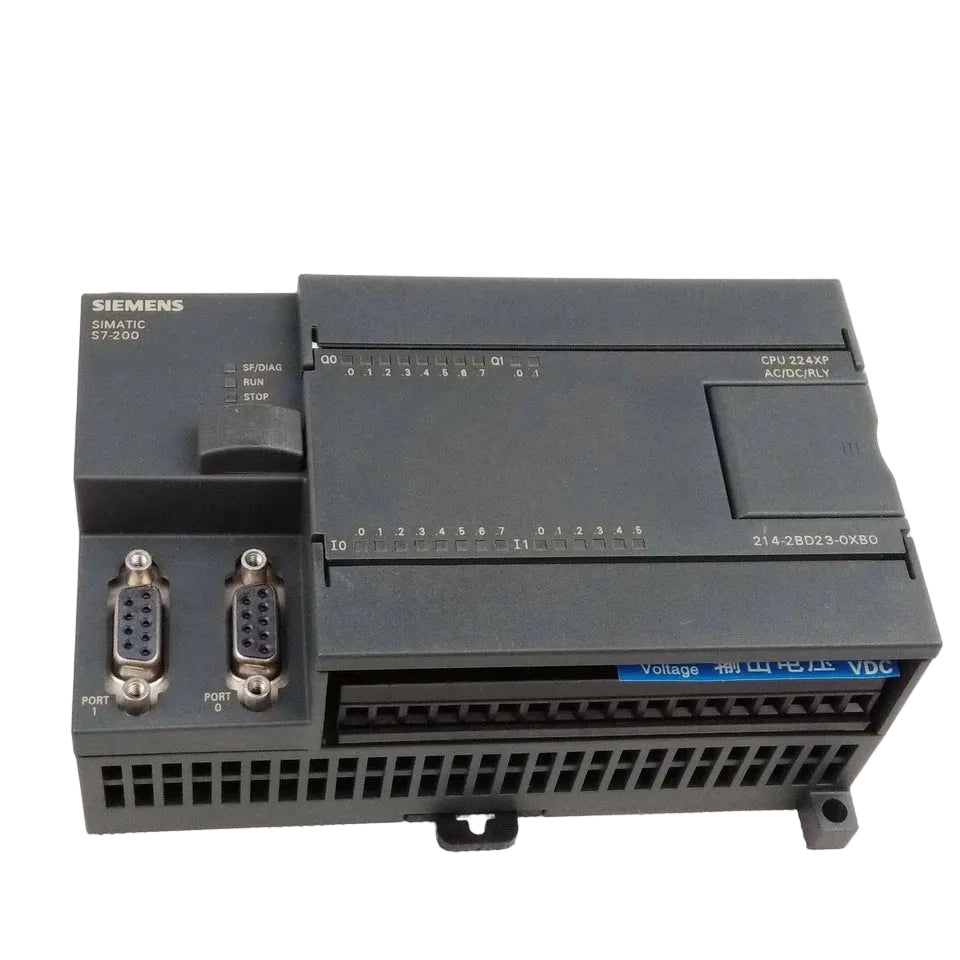

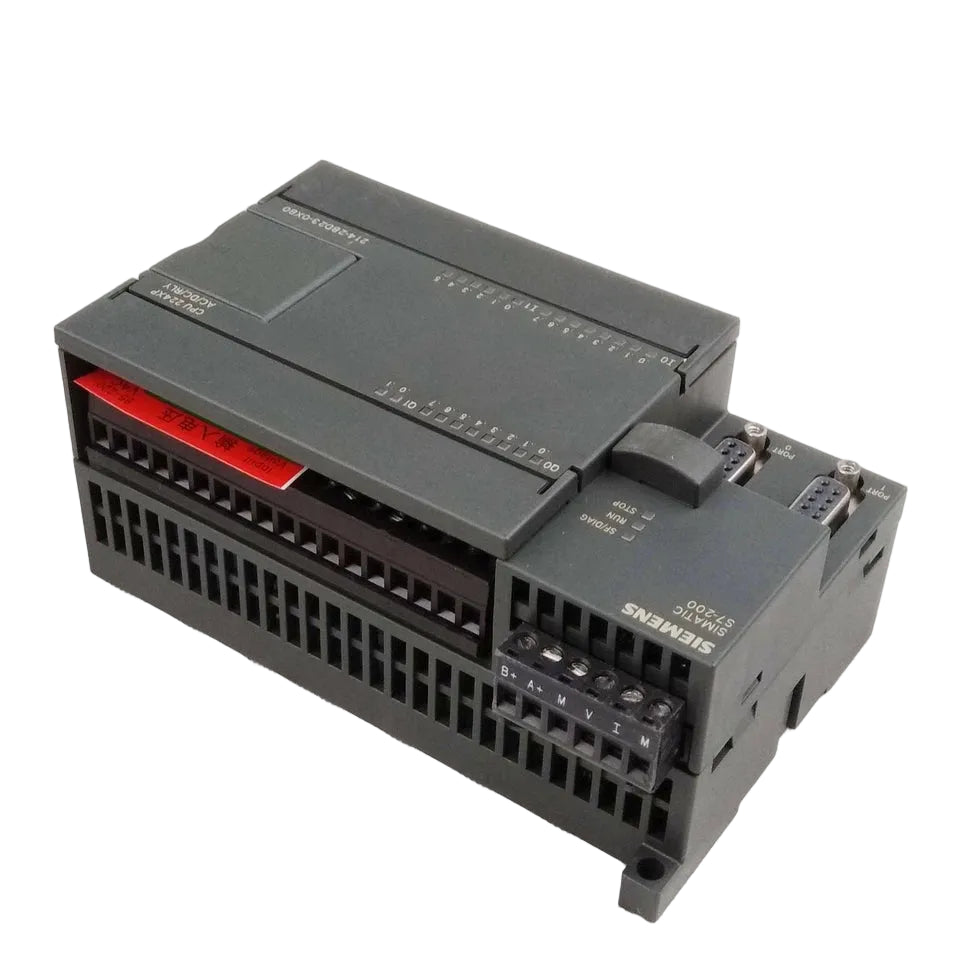

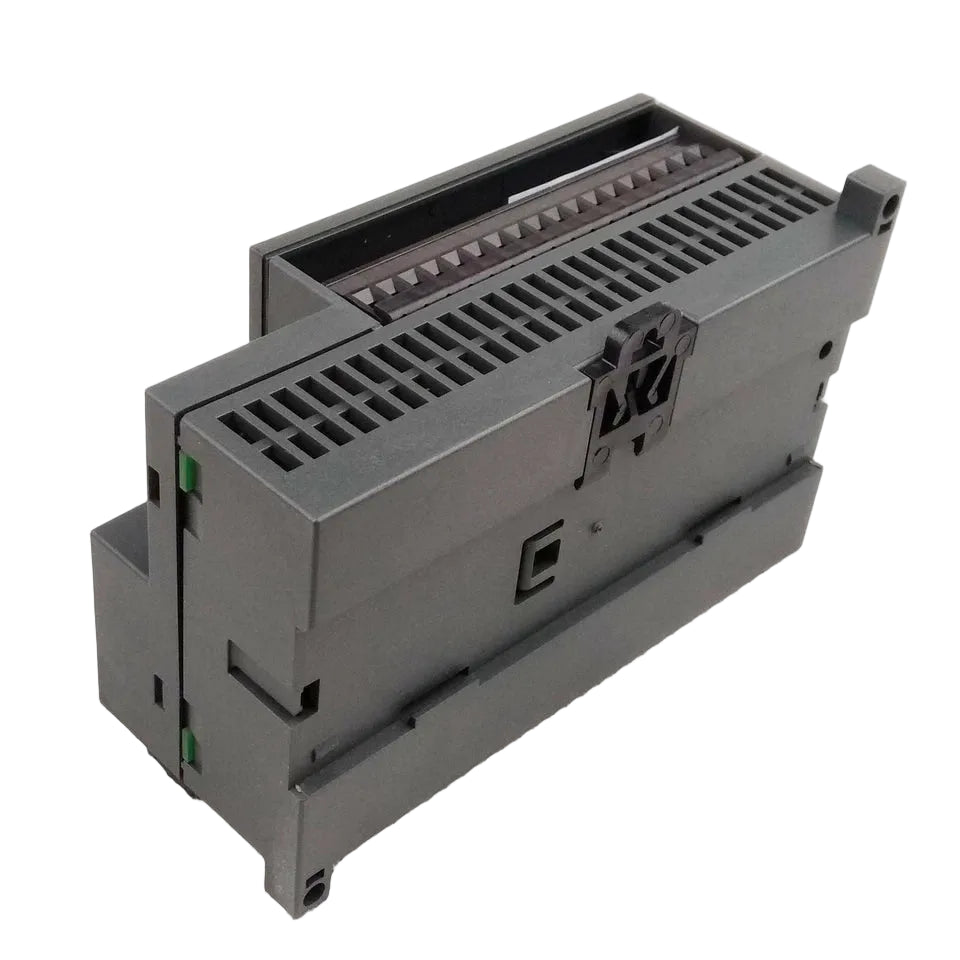

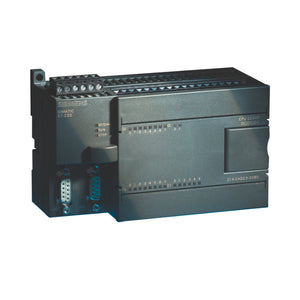

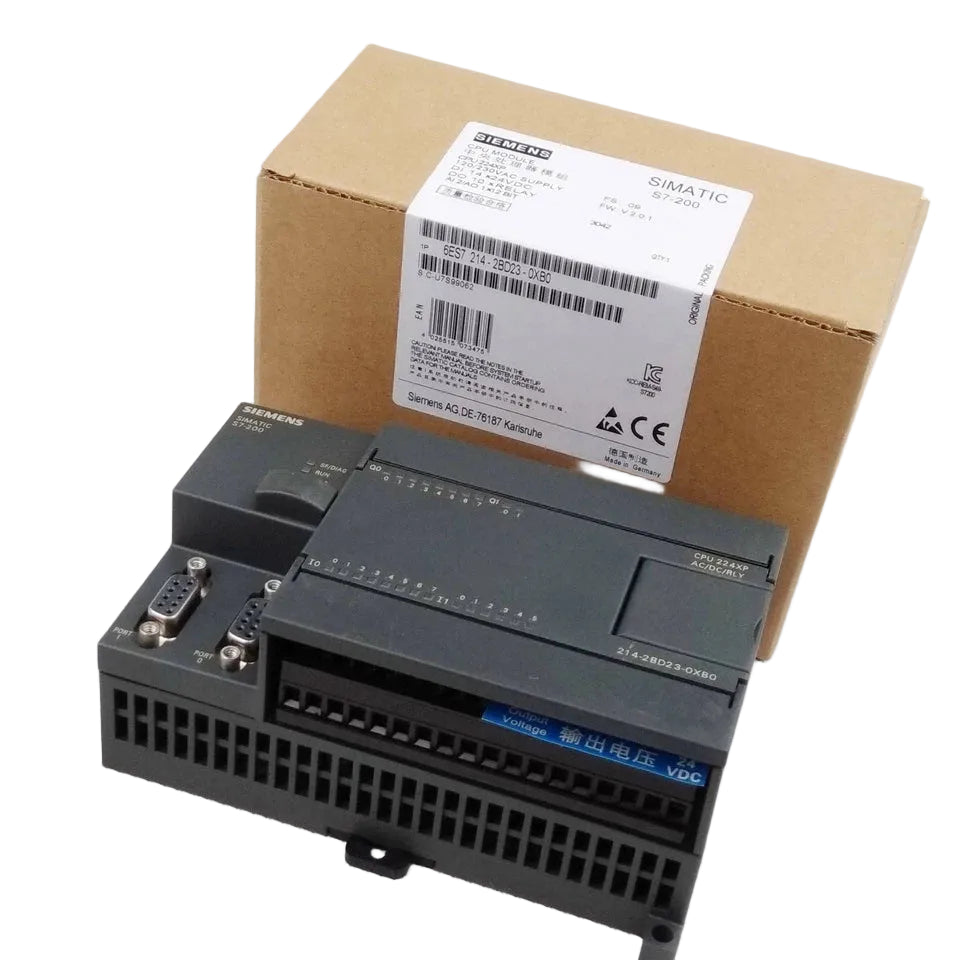

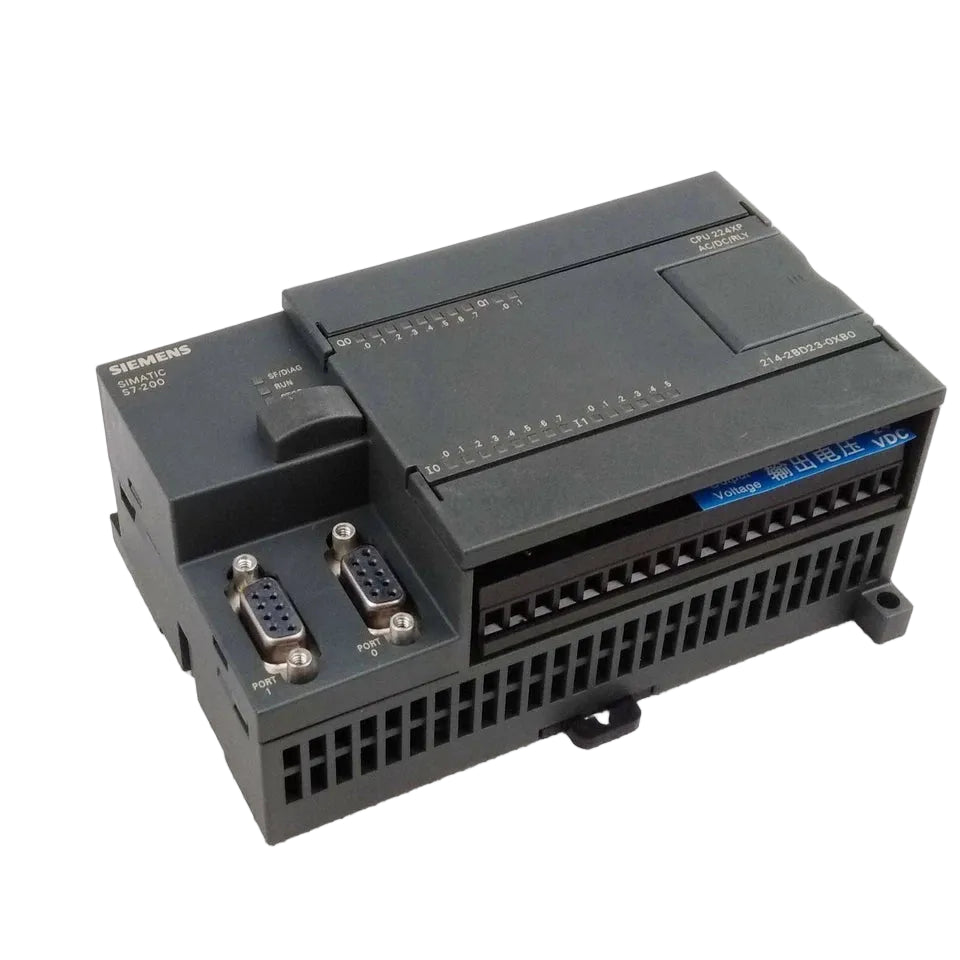

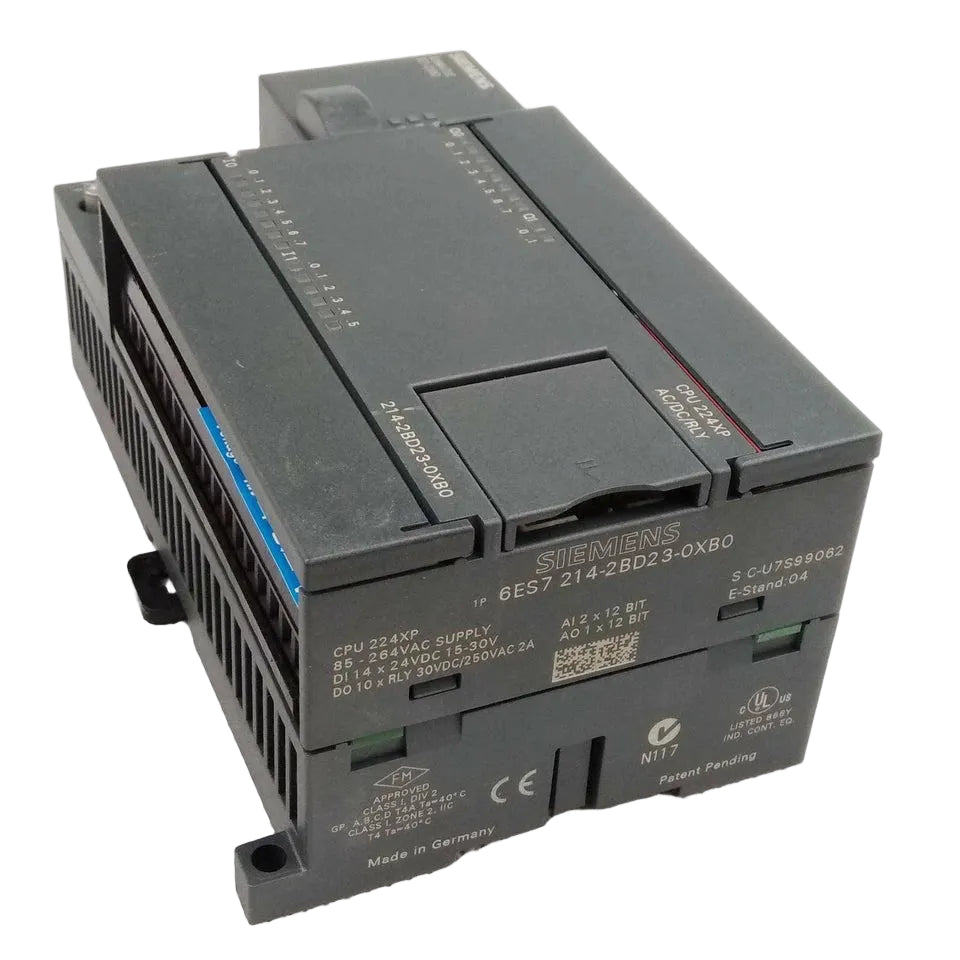

The Siemens 6ES7214-2BD23-0XB0 is a SIMATIC S7-200 CPU 224XP compact unit designed for versatile automation tasks. It features an AC power supply, 14 digital inputs (DC), 10 relay outputs, 2 analog inputs, and 1 analog output. The module offers 12/16 KB of program memory and 10 KB of data memory, along with two PPI/user-programmable interfaces for flexible communication.

Technical Specifications

Information About 6ES7214-2BD23-0XB0

The Siemens 6ES7214-2BD23-0XB0 is a SIMATIC S7-200 CPU 224XP compact unit designed for versatile automation tasks. It features an AC power supply, 14 digital inputs (DC), 10 relay outputs, 2 analog inputs, and 1 analog output. The module offers 12/16 KB of program memory and 10 KB of data memory, along with two PPI/user-programmable interfaces for flexible communication. Please note that this product was discontinued on October 1, 2017, and is now available as a spare part.

Key Features and Specifications

• Model: 6ES7214-2BD23-0XB0
• Series: SIMATIC S7-200
• Power Supply: AC (120/230 V)
• Digital Inputs: 14 (DC)
• Digital Outputs: 10 relay outputs
• Analog Inputs: 2
• Analog Outputs: 1
• Program Memory: 12/16 KB
• Data Memory: 10 KB
• Communication Interfaces: 2 PPI/user-programmable ports
• Dimensions (W x H x D): 140 mm x 80 mm x 62 mm
• Weight: 0.44 kgs

Benefits

• Compact Design: Ideal for space-constrained installations.
• Versatile I/O Configuration: Supports a mix of digital and analog signals for diverse applications.
• Flexible Communication: Dual interfaces facilitate seamless integration into various networks.

Applications

• Industrial Automation: Controls machinery and processes in manufacturing environments.
• Building Management Systems: Manages HVAC, lighting, and security systems.
• Process Control: Monitors and regulates continuous production processes.
