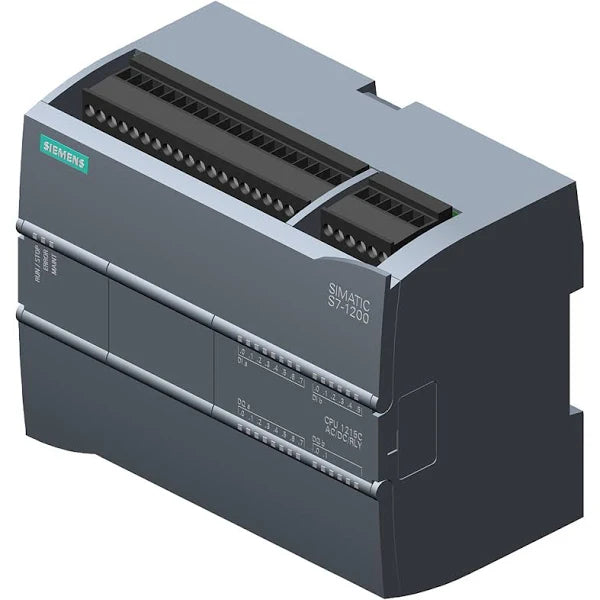

6ES7215-1BG40-0XB0 | SIEMENS SIMATIC S7-1200 CPU1215C Controller, 28 I/O, 125KB
- Regular price
- $542.00
- Sale price
- $542.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7215-1BG40-0XB0
Description
Siemens 6ES7 215-1BG40-0XB0 SIMATIC S7-1200 CPU 1215C Compact Controller AC/DC/Relay, with 2 x PROFINET Ports, 125 Kbytes Data Memory, (14) 24V DC Digital Inputs, Sink/Source, (10) Digital Relay Outputs 2A, (2) Analog Inputs 0-10V DC, (2) Analog Outputs 0-20mA, Integrated 85-2648V AC Power Supply
Technical Specifications
| Brand | SIEMENS |
| Part Number | 6ES7215-1BG40-0XB0 |
| Category | Controls & Indicators |
| Subcategory | CPU/Control Board |
| Design | Compact CPU |
| Type | AC/DC/Relay |
| Digital inputs | 14 |
| Analog inputs | 2 (0-10 V) |
| Digital outputs | 10 (Relay) |
| Analog outputs | 2 (0-10 V or 0/4-20 mA) |
| Memory | 125 kB |
| Input/supply voltage | 24 V DC/85-264 V AC |
| Permissible range | 85-264 V AC |
| Continuous current outputs | 2A |
| Switching frequency | 100 kHz |
| Resolution | 10 bit |
| Short circuit protection | No |
| Dimensions (H x W x D) | 100x130x75 mm |
| Mounting | DIN rail 35 mm |
| Connection | Screw terminals |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Protection rating | IP20 |
| Communication | PROFINET/Ethernet |
| Real-time clock | Yes |
| Alarm inputs | Yes |
| Interface | Ethernet, 2-Port-Switch RJ45 |
| Limit frequency (pulse) | 100 kHz |
| Software | STEP7 Basic |
Information About 6ES7215-1BG40-0XB0
SIMATIC S7-1200 basic controllers impress with their comprehensive range of technological functions and integrated IOs as well their particularly compact space-efficient design. They are the intelligent choice for all everyday automation tasks with a small project scope. SIMATIC HMI Basic Panels 2nd generation are the ideal entry-level series for simple HMI applications. The device series offers panels with 4", 7", 9" and 12" displays, and combined key or touch operation
SIMATIC WinCC in the Totally Integrated Automation Portal (TIA Portal) is part of a new, integrated engineering concept which offers a uniform engineering environment for programming and configuration of control, visualization and drive solutions. The engineering framework has been optimized for the highest level of user friendliness. It integrates controllers, distributed I/O, HMI, drives, motion control and motor management.
Features:
Innovative design and easy operation
Compact construction with integrated IOs and flexibility due to the board concept
Security Integrated Security thanks to protected access to the CPU and program copy protection
Technology Integrated Incorporated functions and flexible connection of drives
Versatile diagnostics - System diagnostics indicate error messages in plaintext in the TIA Portal on the HMI or web server
Efficient engineering With SIMATIC STEP 7 Basic in the TIA Portal
Safety Integrated Fail-safe CPUs for the execution of standard and safety-related programs
Flexible integration into all network structures PROFINET, PROFIBUS, AS-i, IO-Link, CANopen or even connection to remote control centers
Use in extreme ambient conditions as SIPLUS S7-1200 version
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
