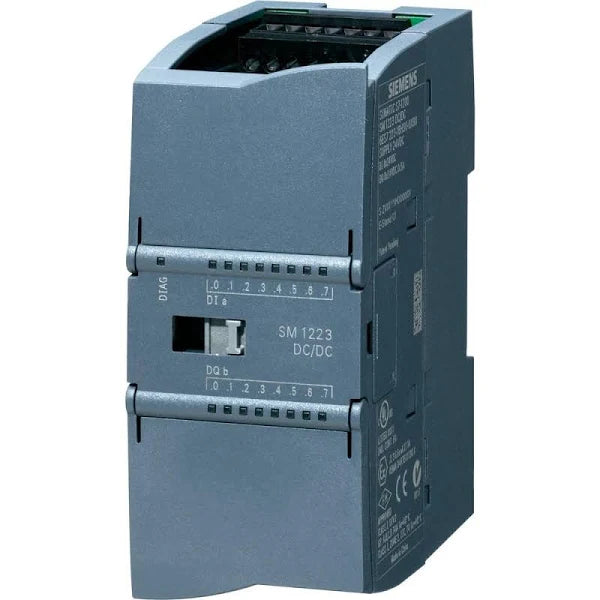

6ES7223-1BH32-0XB0 | Siemens SIMATIC S7-1200 SM1223 Digital I/O Module 8DI / 8DO 24VDC
- Regular price
- $228.00
- Sale price
- $228.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7223-1BH32-0XB0
Description
The Siemens 6ES7223-1BH32-0XB0 is an SM1223 digital combination module for SIMATIC S7-1200 controllers. It provides eight 24 VDC digital inputs and eight 24 VDC transistor outputs, each rated at 0.5 A. The module features galvanic isolation and is designed for compact machine control and general automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | 6ES7223-1BH32-0XB0 |
| Subcategory | VDC Logic I/O Module |
| Series | S7-1200 Series |
| Product Type | Digital I/O Combination Module |
| Supply Voltage | 24 VDC |
| Digital Inputs | 8 |
| Digital Outputs | 8 (transistor type) |
| Output Current Rating | 0.5 A per channel |
| Number of I/O Ports | 16 total |
| Input Current | 145 mA |
| Input Type | Digital, sink/source |
| Output Type | Digital, transistor |
| For Use With | SIMATIC S7-1200 controllers |
| Galvanic Isolation | Yes |
| Operating Temperature Range | -20 to 60 °C |
| Primary Application | Machine control, automation expansion |
Information About 6ES7223-1BH32-0XB0
The 6ES7223-1BH32-0XB0 belongs to the SIMATIC S7-1200 I/O family and integrates seamlessly with S7-1200 CPUs to expand digital input and output capacity. Its design offers flexible signal handling with sink/source digital inputs and transistor outputs suitable for fast switching tasks. The module is powered from a 24 VDC supply and provides reliable isolation between input and output groups, making it suitable for industrial environments requiring robust digital control. Typical applications include small automation systems, machine-level control, distributed I/O expansion, and signal interfacing within TIA Portal engineering environments.
Key Features:
- Combination I/O module: Includes 8 digital inputs and 8 digital transistor outputs.
- 24 VDC operation: Compatible with standard industrial control voltages.
- Transistor outputs: Rated 0.5 A each for fast, reliable switching.
- Galvanically isolated channels: Enhances protection and signal integrity.
- S7-1200 compatible: Designed for seamless integration with SIMATIC controllers.
- Compact footprint: Ideal for space-constrained control cabinets.
- Flexible input configuration: Supports sink and source wiring.
- Designed for TIA Portal: Fully supported for diagnostics, configuration, and engineering.
The 6ES7223-1BH32-0XB0 delivers the reliability and precision required for digital signal handling in S7-1200 automation systems.
