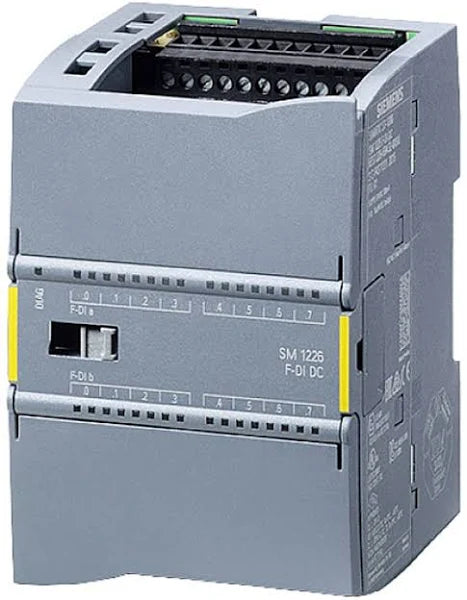

6ES7226-6BA32-0XB0 | Siemens | Digital Input Module
- Regular price
- $287.00
- Sale price
- $287.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7226-6BA32-0XB0
Description
The 6ES7226-6BA32-0XB0 is a Digital Input Module designed for the SIMATIC S7-1200 series. Specifically, it is the SM1226 model featuring F-DI 16X 24V DC inputs with PROFIsafe functionality. With a compact overall width of 70 mm, it provides robust digital input capabilities for industrial applications. The module supports safety functions up to PL E (ISO 13849-1) and SIL3 (IEC 61508), ensuring high levels of safety and reliability in automated systems.
Technical Specifications
|
Part # |
6ES7226-6BA32-0XB0 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
VDC Logic I/O Module |
|
Design |
Digital input module (fail-safe) |
|
Digital inputs (fail-safe) |
16 |
|
Supply voltage |
24 V DC |
|
Input voltage |
-30-5/15-30 V DC |
|
Permissible range |
20.4-28.8 V DC |
|
Input current |
0.5 mA |
|
Short circuit protection |
No |
|
PFHd (1/h) |
1.0 E-10 |
|
Permissible period of use |
TM 20 years |
|
Dimensions (H x W x D) |
70 x 100 x 75 mm |
|
Mounting |
DIN-rail 35 mm |
|
Connection |
Screw terminals |
|
Ambient temperature min. |
0 °C |
|
Ambient temperature max. |
55 °C |
|
Protection rating |
IP20 |
Information About 6ES7226-6BA32-0XB0
The 6ES7226-6BA32-0XB0, also known as the SM1226 Digital Input Module, is designed for use within the SIMATIC S7-1200 system. This digital input module features F-DI 16X 24 V DC capabilities, providing a reliable interface for digital signals within the 24 V DC range. It is equipped with PROFIsafe functionality, ensuring enhanced safety in industrial applications.
With an overall width of 70 mm, the SM1226 Digital Input Module offers compact dimensions, allowing for efficient use of space in control cabinets or industrial enclosures. Its compact size contributes to streamlined installation and system integration.
The SM1226 Digital Input Module is engineered to meet stringent safety standards. It is capable of achieving up to PL E (ISO 13849-1) and SIL3 (IEC 61508) safety levels, ensuring compliance with safety regulations and requirements in industrial environments. This high level of safety certification provides peace of mind and confidence in the module's performance and reliability.
Featuring 16 digital input channels, the SM1226 module offers ample capacity to accommodate a variety of digital signals in industrial automation systems. These inputs are optimized for use with 24 V DC signals, ensuring compatibility with common industrial voltage levels.
The module is designed for easy integration into existing SIMATIC S7-1200 systems, providing seamless compatibility and interoperability with other components and modules within the system architecture. Its modular design allows for flexible expansion and scalability, enabling users to adapt their automation systems to evolving needs and requirements.
The SM1226 Digital Input Module is equipped with screw terminals for convenient and secure connection of field wiring. This terminal configuration simplifies installation and maintenance tasks, facilitating efficient wiring practices in industrial settings.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
