6ES7232-4HA30-0XB0 | Siemens | Signal Board

Description

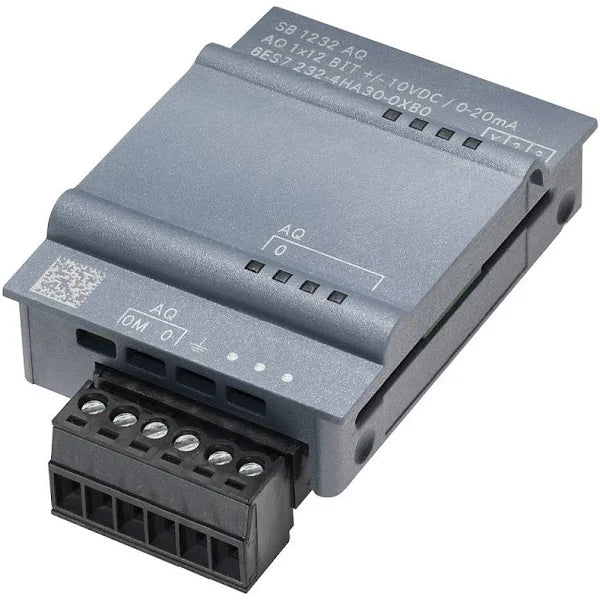

The Siemens 6ES7232-4HA30-0XB0 Signal Board SB 1232 is a component designed for the Siemens SIMATIC S7-1200 series. It serves as an analog output module featuring one analog output (1 AO) channel. This module is capable of generating signals within a range of +/- 10 VDC with a resolution of 12 bits or within a range of 0-20 mA with a resolution of 11 bits. The module is engineered to provide precise and reliable analog output functionality, making it suitable for a variety of industrial automation applications within the SIMATIC S7-1200 control system.

Technical Specifications

Information About 6ES7232-4HA30-0XB0

The Siemens 6ES7232-4HA30-0XB0 Signal Board SB 1232 is a component designed for integration within Siemens SIMATIC S7-1200 systems. Specifically, it serves as an analog output module, denoted as SB 1232, featuring a single analog output (1 AO) channel.

This signal board provides flexibility in generating analog signals within two distinct ranges. It supports output signals ranging from +/- 10 VDC with a resolution of 12 bits. Additionally, it accommodates output signals within the 0-20 mA range with a resolution of 11 bits. These specifications enable precise control and manipulation of analog signals in various industrial automation and control applications.

The 6ES7232-4HA30-0XB0 Signal Board SB 1232 is engineered to meet the stringent requirements of industrial environments, ensuring reliable and consistent performance under challenging conditions. Its compatibility with the SIMATIC S7-1200 series underscores its suitability for a wide range of automation and control tasks within industrial settings.

With its capability to interface seamlessly with the SIMATIC S7-1200 system, this signal board facilitates the integration of analog output functionality into existing automation systems. It enables users to control and regulate analog devices and processes with precision, contributing to enhanced efficiency and productivity in industrial operations.

The signal board is equipped with screw terminals, providing a secure and robust connection interface for wiring and installation purposes. This terminal type ensures ease of installation and maintenance, allowing for efficient deployment and management of the signal board within the automation system.
