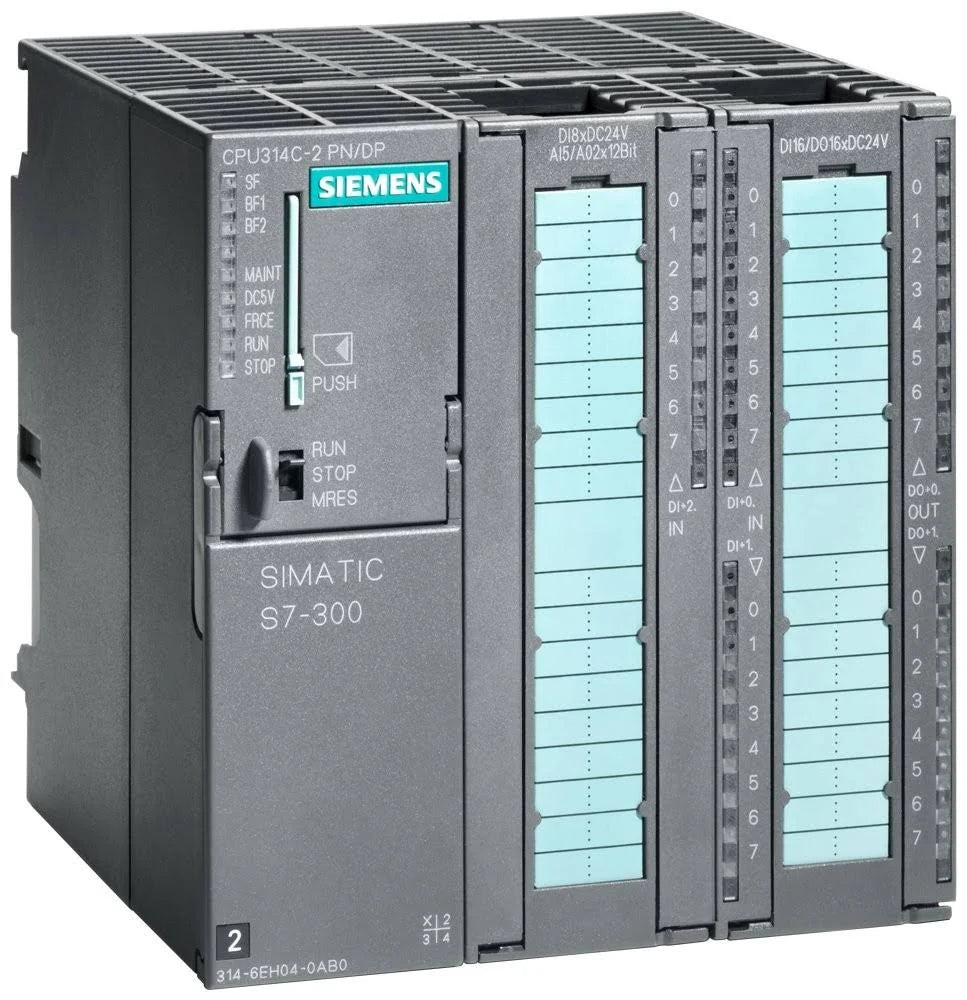

6ES7314-6EH04-0AB0 | Siemens S7-300 CPU314C-2 PN/DP Compact Controller
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7314-6EH04-0AB0
Description
The Siemens 6ES7314-6EH04-0AB0 is a compact SIMATIC S7-300 controller designed for advanced industrial automation tasks. It provides integrated digital, analog, PROFINET, and PROFIBUS connectivity in one module, enabling flexible and efficient machine control.
Technical Specifications
| Part Number | 6ES7314-6EH04-0AB0 |
| Manufacturer | Siemens |
| Series | SIMATIC S7-300 |
| Category | Controls & Indicators |
| Subcategory | CPU Module |
| Work Memory | 192 KB |
| Digital Inputs | 24 x 24V DC (Sink) |
| Digital Outputs | 16 x 24V DC (0.5A) |
| Analog Inputs | 4 x Current/Voltage |
| RTD Input | 1 x Pt100 or 0–600 Ω |
| Analog Outputs | 2 x Current/Voltage |
| High-Speed Counters | 4 (60 kHz) |
| Interface 1 | MPI/PROFIBUS DP 12 Mbit/s |
| Interface 2 | Ethernet/PROFINET with 2-Port Switch |
| Power Supply | 24 VDC |
| Mounting | DIN-rail |
| Required Accessories | 2×40-pin Front Connectors, Micro Memory Card |
Information About 6ES7314-6EH04-0AB0
The Siemens 6ES7314-6EH04-0AB0 SIMATIC S7-300 CPU314C-2 PN/DP is a multifunctional compact controller designed for mid-range industrial automation. It integrates digital and analog I/O, fast counters, PROFINET, and PROFIBUS communication in a single unit, enabling highly flexible system design. With its built-in Ethernet interface featuring a 2-port switch, the controller supports efficient line-topology networking, while the MPI/DP interface ensures compatibility with a broad range of Siemens field devices. The 192 KB work memory, combined with multiple I/O options, allows the CPU to handle complex logic, monitoring, and real-time control tasks in machinery, production lines, and process equipment.
Key Features:
- Integrated PROFINET with 2-Port Switch: Enables seamless Ethernet networking, line topologies, and real-time data exchange across automation devices.
- MPI/PROFIBUS DP Communication: Provides master/slave capability for linking HMIs, drives, remote I/O systems, and legacy Siemens equipment.
- Extensive Built-In I/O: Includes 24 digital inputs, 16 digital outputs, 4 analog inputs, 1 RTD input, and 2 analog outputs for comprehensive signal processing.
- High-Speed Counter Functionality: Four 60 kHz counters allow precise measurement of fast pulses from encoders, sensors, and motion feedback devices.
- Industrial-Grade Memory Capacity: 192 KB of work memory supports mid-size automation programs with complex logic, PID loops, and communication tasks.
- Compact Modular Form Factor: Fits seamlessly into S7-300 racks, minimizing panel space while maintaining scalability and modular expansion options.
- Versatile Analog Support: Current/voltage input and output channels plus RTD measurement enable direct connection to sensors and actuators.
- Robust Electrical Design: 24V DC operation with protected I/O ensures reliable performance in harsh industrial environments.
- Seamless Integration with TIA Portal: Fully supported engineering workflow for configuration, diagnostics, and commissioning.
- Flexible System Expansion: Supports additional S7-300 I/O modules, communication modules, and distributed ET 200 systems.
The 6ES7314-6EH04-0AB0 delivers the reliability and precision required for mid-range automation systems, machine control tasks, and PROFINET/PROFIBUS-integrated architectures.
