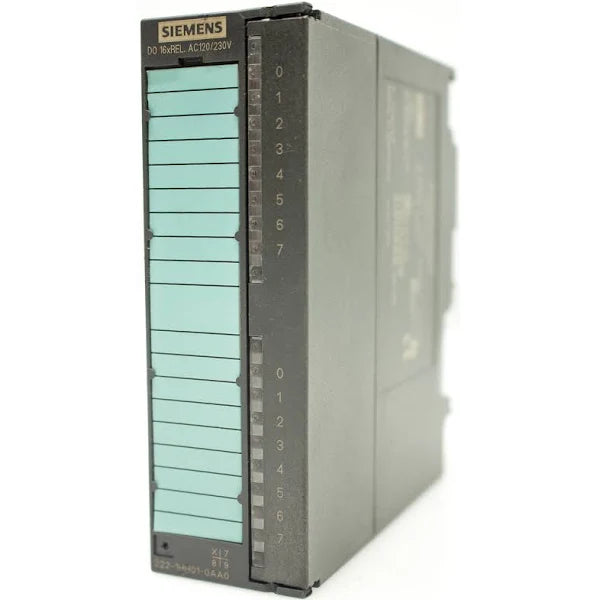

6ES7322-1HH01-0AA0 | Siemens | Digital Output
6ES7322-1HH01-0AA0 | Siemens | Digital Output
Part #: 6ES7322-1HH01-0AA0 Manufactured by: Siemens

6ES7322-1HH01-0AA0 | Siemens | Digital Output

Regular price
$295.00
Sale price
$295.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The Siemens 6ES7322-1HH01-0AA0 is a part of the SIMATIC S7-300 SM322 series, serving as a digital output module. It featur...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 6ES7322-1HH01-0AA0
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
6ES7322-1HH01-0AA0 | Siemens | Digital Output
    6ES7322-1HH01-0AA0 | Siemens | Digital Output
6ES7322-1HH01-0AA0 | Siemens | Digital Output
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 6ES7322-1HH01-0AA0

Description / Specifications

Description

The Siemens 6ES7322-1HH01-0AA0 is a SIMATIC S7-300 SM322 Digital Output module. It features (16) relay contact digital outputs with 8 inputs per group. The outputs support a current of 2A at either 24V DC or 230V AC. The module utilizes a 20-pin configuration and offers optically isolated functionality.


Technical Specifications



Part #

6ES7322-1HH01-0AA0

Manufacturer

SIEMENS

Category

PLCs/Machine Control

Subcategory

PLC Module/Rack Supports isochronous mode

Number of outputs

16

Cable length


- unshielded

max. 600 m

- shielded

max. 1000 m

Rated power supply L+ to the relays

24 V DC

Total current of outputs (per group)

max. 8 A

Electrical isolation


- between channels and the backplane bus

yes

- between channels in groups of

8

Maximum potential difference


- Between Minternal and the power supply to relays

230 V AC

- Between outputs of different groups

500 V AC

Isolation test voltage


- between Minternal and the power supply to relays

500 V DC

- between Minternal and the power supply to relays and outputs

1500 V AC

- between outputs of different groups

2000 V AC

Current consumption


- from the backplane bus

max. 100 mA

- from power supply L+

max. 250 mA

Power loss of the module

typ. 4.5 W

Status display

green LED per channel

Interrupts

none

Diagnostic functions

none

Thermal current, continuous

max. 2 A

Minimum load voltage / current

10 V / 10 mA

Short-circuit current to IEC 947-5-1

200 A, with B10/B16 circuit breaker

Size of the motor starter

max. size 5 to NEMA

Lamp load

50 W / 230 V AC, 5 W / 24 V DC

Contact protection (internal)

none

Wiring two outputs in parallel


- for redundant load control

supported (only outputs of the same group)

- for performance increase

not supported

Control of a digital input

supported

Switching frequency


- Mechanical

max. 10 Hz

- with resistive load

max. 1 Hz

- with inductive load to IEC 947-5-1, DC13/AC15

max. 0.5 Hz

- with lamp load

max. 1 Hz

Wiring of the actuators

using a 20-pin front connector



Information About 6ES7322-1HH01-0AA0



The Siemens 6ES7322-1HH01-0AA0, belonging to the SIMATIC S7-300 SM322 series, is a digital output module designed for industrial automation applications. It features 16 relay contact digital outputs, offering reliable control over various connected devices or equipment. Each group of outputs is equipped with 8 inputs, providing sufficient connectivity for diverse operational requirements.

This module is capable of handling both low-voltage and line-voltage applications with a rating of 2A for both 24V DC and 230V AC systems. The relay contact outputs ensure robust switching capabilities suitable for industrial environments.

With a 20-pin configuration, the module offers easy integration into existing systems, facilitating seamless installation and connectivity. Additionally, the digital outputs are optically isolated, ensuring enhanced safety and protection against electrical interference.

The SIMATIC S7-300 SM322 module is engineered to meet stringent industrial standards, guaranteeing reliable performance and durability in demanding operational conditions. Its design prioritizes efficiency and versatility, making it suitable for a wide range of automation tasks across various industries.

The 6ES7322-1HH01-0AA0 module conforms to industry norms and standards, ensuring compatibility and interoperability with existing systems and components. Its design facilitates efficient control and monitoring of industrial processes, contributing to enhanced productivity and operational efficiency.

The relay contact digital outputs offer precise and reliable control over connected devices, ensuring accurate operation and optimal performance. Each output is designed to deliver consistent and stable switching, enabling seamless integration into complex automation systems.

The module's optically isolated design enhances safety and reliability by preventing electrical interference and minimizing the risk of damage to connected equipment. This feature ensures robust and dependable operation in challenging industrial environments.


Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Siemens 6ES7322-1HH01-0AA0 is a SIMATIC S7-300 SM322 Digital Output module. It features (16) relay contact digital outputs with 8 inputs per group. The outputs support a current of 2A at either 24V DC or 230V AC. The module utilizes a 20-pin configuration and offers optically isolated functionality.


Technical Specifications



Part #

6ES7322-1HH01-0AA0

Manufacturer

SIEMENS

Category

PLCs/Machine Control

Subcategory

PLC Module/Rack Supports isochronous mode

Number of outputs

16

Cable length


- unshielded

max. 600 m

- shielded

max. 1000 m

Rated power supply L+ to the relays

24 V DC

Total current of outputs (per group)

max. 8 A

Electrical isolation


- between channels and the backplane bus

yes

- between channels in groups of

8

Maximum potential difference


- Between Minternal and the power supply to relays

230 V AC

- Between outputs of different groups

500 V AC

Isolation test voltage


- between Minternal and the power supply to relays

500 V DC

- between Minternal and the power supply to relays and outputs

1500 V AC

- between outputs of different groups

2000 V AC

Current consumption


- from the backplane bus

max. 100 mA

- from power supply L+

max. 250 mA

Power loss of the module

typ. 4.5 W

Status display

green LED per channel

Interrupts

none

Diagnostic functions

none

Thermal current, continuous

max. 2 A

Minimum load voltage / current

10 V / 10 mA

Short-circuit current to IEC 947-5-1

200 A, with B10/B16 circuit breaker

Size of the motor starter

max. size 5 to NEMA

Lamp load

50 W / 230 V AC, 5 W / 24 V DC

Contact protection (internal)

none

Wiring two outputs in parallel


- for redundant load control

supported (only outputs of the same group)

- for performance increase

not supported

Control of a digital input

supported

Switching frequency


- Mechanical

max. 10 Hz

- with resistive load

max. 1 Hz

- with inductive load to IEC 947-5-1, DC13/AC15

max. 0.5 Hz

- with lamp load

max. 1 Hz

Wiring of the actuators

using a 20-pin front connector



Information About 6ES7322-1HH01-0AA0



The Siemens 6ES7322-1HH01-0AA0, belonging to the SIMATIC S7-300 SM322 series, is a digital output module designed for industrial automation applications. It features 16 relay contact digital outputs, offering reliable control over various connected devices or equipment. Each group of outputs is equipped with 8 inputs, providing sufficient connectivity for diverse operational requirements.

This module is capable of handling both low-voltage and line-voltage applications with a rating of 2A for both 24V DC and 230V AC systems. The relay contact outputs ensure robust switching capabilities suitable for industrial environments.

With a 20-pin configuration, the module offers easy integration into existing systems, facilitating seamless installation and connectivity. Additionally, the digital outputs are optically isolated, ensuring enhanced safety and protection against electrical interference.

The SIMATIC S7-300 SM322 module is engineered to meet stringent industrial standards, guaranteeing reliable performance and durability in demanding operational conditions. Its design prioritizes efficiency and versatility, making it suitable for a wide range of automation tasks across various industries.

The 6ES7322-1HH01-0AA0 module conforms to industry norms and standards, ensuring compatibility and interoperability with existing systems and components. Its design facilitates efficient control and monitoring of industrial processes, contributing to enhanced productivity and operational efficiency.

The relay contact digital outputs offer precise and reliable control over connected devices, ensuring accurate operation and optimal performance. Each output is designed to deliver consistent and stable switching, enabling seamless integration into complex automation systems.

The module's optically isolated design enhances safety and reliability by preventing electrical interference and minimizing the risk of damage to connected equipment. This feature ensures robust and dependable operation in challenging industrial environments.


Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
