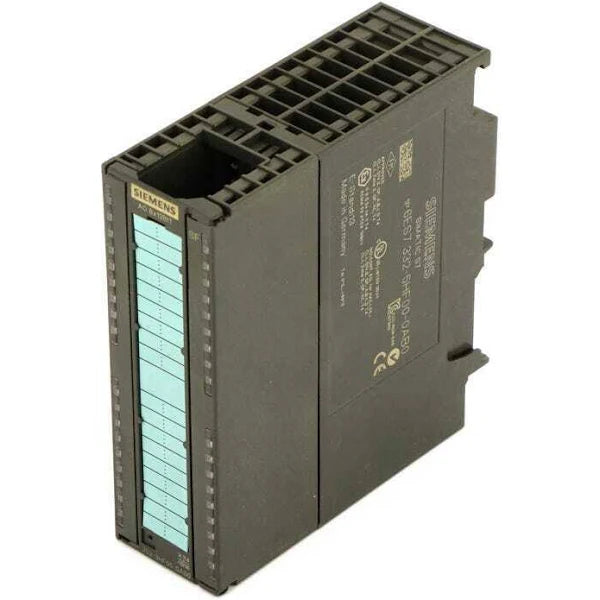

6ES7332-5HF00-0AB0 | Siemens | Analog Output
- Regular price
- $792.00
- Sale price
- $792.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7332-5HF00-0AB0
Description
The Siemens 6ES7332-5HF00-0AB0 SIMATIC S7-300 Analog Output module, designated as SM 332, is engineered for precise analog signal output in industrial automation applications. Featuring optically isolated circuitry, it ensures reliable signal transmission and isolation from electrical interference. The module provides 8 analog outputs (8 AO) capable of handling both voltage and current signals (U/I), with diagnostic functionalities included.
The analog output resolution is selectable between 11 and 12 bits, offering flexibility to suit varying application requirements. The module is designed with a 40-pin configuration and supports hot-swappable functionality, allowing for removal and insertion while the system is active.
Technical Specifications
|
Part # |
6ES7332-5HF00-0AB0 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
VDC Logic I/O Module |
|
Resolution |
Number of inputs 8 |
|
Length of cable |
Shielded max. 200 m |
|
Conversion time (per channel) |
0.8 ms |
|
Settling time |
0.2 ms |
|
Injection of substitute values |
No |
|
Rated voltage of the electronics L+ |
24 VDC |
|
Reverse polarity protection |
Yes |
|
Insulation |
Tested with 500 VDC |
|
Current source |
From the backplane bus |
|
Power dissipation of the module |
typ. 6.0 W |
|
Crosstalk between the outputs |
> 40 dB |
|
Operational limit |
±0.5% (Voltage output), ±0.6% (Current output) |
|
Basic error |
± 0.4% (Voltage output), ± 0.5% (Current output) |
|
Temperature error |
±0.002% /K |
|
Linearity error |
± 0.05% |
|
Repeatability |
±0.05% |
|
Output ripple; bandwidth |
0 to 50Khz |
|
Diagnostics interrupt |
Yes, parameters can be assigned |
|
Diagnostics functions |
Group error display, Diagnostics information can be displayed |
|
Possible Voltage |
± 10 V, 0 to 10 V, 1 to 5 V |
|
Possible Current |
± 20 mA, 0 to 20 mA, 4 to 20 mA |
|
Load resistance |
Min. 1KΩ, Max. 500 Ω, Max. 600 Ω |
|
Short-circuit protection |
Yes |
|
Short-circuit current |
Max. 25 mA |
|
No-load voltage |
Max. 18 V |
|
Destruction limit against voltages/currents applied |
Max. DC 50 mA |
|
Connection of actuators |
Possible |
Information About 6ES7332-5HF00-0AB0
The Siemens 6ES7332-5HF00-0AB0 SIMATIC S7-300 Analog Output module, known as the SM 332, is a component designed for industrial automation systems. This module features optically isolated circuits, ensuring reliable signal transmission and isolation from electrical interference. It provides 8 analog outputs (8 AO) capable of handling both voltage and current signals (U/I), facilitating diverse control and monitoring applications.
The module offers diagnostic capabilities, enabling efficient troubleshooting and maintenance of connected systems. It supports a resolution of 11/12 bits, allowing for precise analog signal generation. With a 40-pin configuration, the module integrates seamlessly into the S7-300 system architecture, utilizing the backplane bus for communication and power supply.
Designed for user convenience, the module supports hot-swappable functionality, enabling removal and insertion while the system remains active. This feature enhances system flexibility and minimizes downtime during maintenance operations.
The Siemens 6ES7332-5HF00-0AB0 SIMATIC S7-300 Analog Output module is engineered to meet the demands of industrial environments, providing reliable performance and robust functionality for analog signal control and monitoring applications. Its optically isolated design ensures signal integrity, while diagnostic capabilities facilitate efficient system maintenance and troubleshooting.
With its 11/12-bit resolution, the module offers precise control over analog signal generation, enhancing system accuracy and efficiency. The 40-pin configuration and backplane bus integration simplify installation and integration within the S7-300 system architecture, ensuring seamless operation in industrial environments.
