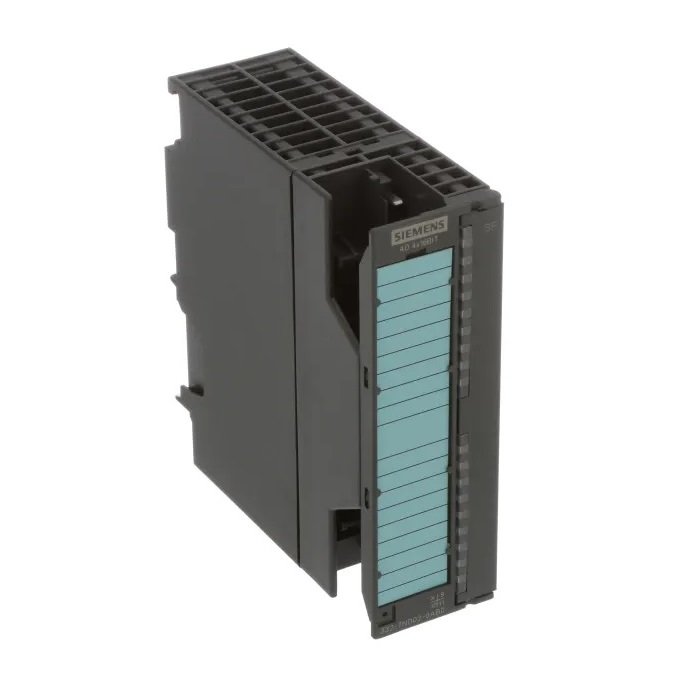

6ES7332-7ND02-0AB0 | Siemens SIMATIC S7-300 SM 332 4-Channel Analog Output Module
- Regular price
- $988.00
- Sale price
- $988.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7332-7ND02-0AB0
Description
The Siemens 6ES7332-7ND02-0AB0 is an SM 332 analog output module designed for the SIMATIC S7-300 automation system. It provides four individually isolated analog output channels with 16-bit resolution, supporting voltage and current outputs for precise industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 6ES7332-7ND02-0AB0 |
| Subcategory | Analog Output Module |
| Series | SIMATIC S7-300 |
| Module Type | SM 332 |
| Number of Channels | 4 Analog Outputs (Isolated by Channel) |
| Resolution | 16 Bit |
| Voltage Output Range | 0–10 V, ±10 V, 1–5 V |
| Current Output Range | 0/4–20 mA, ±20 mA |
| Isolation | Galvanically Isolated per Channel |
| Output Type | Voltage and Current |
| Bus Type | PROFIBUS / MPI Compatible |
| Isochronous Mode Support | Yes, with Improved Bus Cycle Times |
| Terminal Type | 20-Pole Connection |
| Mounting Type | DIN Rail |
| Power Supply | From Backplane Bus |
| Operating Environment | Industrial Control Systems |
| Dimensions (L x W x H) | 15.10 × 13.10 × 5.20 cm |
| Net Weight | 0.296 kg (0.65 lbs) |
Information About 6ES7332-7ND02-0AB0
The 6ES7332-7ND02-0AB0 is a member of the Siemens SIMATIC S7-300 SM 332 family, offering high-precision analog output capabilities for industrial automation and process control. Each of the four channels is galvanically isolated, ensuring interference-free signal transmission and reliable performance in complex environments. With 16-bit resolution and flexible output options including voltage and current modes, it provides accurate signal generation for actuators, drives, and measurement systems. The module also supports isochronous operation, enhancing synchronization and reducing bus cycle times for high-speed control applications.
Key Features:
- 4 Isolated Analog Outputs: Each channel provides independent isolation to ensure signal integrity and minimize electrical noise.
- High 16-Bit Resolution: Delivers fine output precision for process and control applications requiring accurate analog signals.
- Flexible Output Ranges: Supports voltage (0–10 V, ±10 V, 1–5 V) and current (0/4–20 mA, ±20 mA) for versatile use across various control devices.
- Isochronous Mode Capability: Enables precise timing synchronization between modules for improved bus cycle performance.
- Robust Channel Isolation: Ensures reliable operation in environments with electrical interference and grounding differences.
- 20-Pole Terminal Connection: Provides easy wiring and secure connectivity for industrial installations.
- Compact Modular Design: Fits seamlessly into the S7-300 rack, allowing easy expansion and system scalability.
- Industrial Reliability: Engineered for demanding control environments with continuous, stable performance.
The 6ES7332-7ND02-0AB0 delivers the reliability and precision required for industrial automation systems, ensuring high signal accuracy and consistent control performance.
