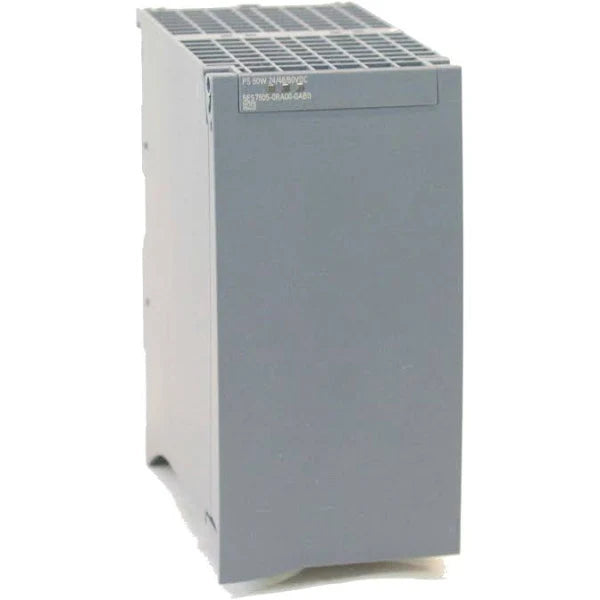

6ES7505-0RA00-0AB0 | Siemens Power Supply
- Regular price
- $682.00
- Sale price
- $682.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7505-0RA00-0AB0
Description
The Siemens 6ES7505-0RA00-0AB0 SIMATIC S7-1500 Power Supply is designed to provide reliable power to the SIMATIC S7-1500 system. With an input range of 24/48/60V DC and a power output of 60W, this power supply ensures stable and consistent electrical power for the operation of industrial automation systems. It is suitable for various industrial applications where a dependable power source is essential for the uninterrupted performance of control systems.
Technical Specifications
|
Part Number |
6ES7505-0RA00-0AB0 |
|
Manufacturer |
Siemens |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply Hardware version FS02 |
|
Firmware version |
V1.0.1 |
|
Engineering with STEP 7 TIA Portal |
V12 / V12 |
|
STEP 7 |
V5.5 SP3 or higher |
|
Rated value (DC) |
24 V / 48 V / 60 V |
|
Valid range low limit (DC) |
Static: 19.2 V, Dynamic: 18.5 V |
|
Valid range high limit (DC) |
Static: 72 V, Dynamic: 75.5 V |
|
Reverse polarity protection |
Yes |
|
Short-circuit protection |
Yes |
|
Current consumption (rated value) |
3 A |
|
Rated value at 48 V DC |
1.5 A |
|
Rated value at 60 V DC |
1.2 A |
|
Power feed to the backplane bus |
60 W |
|
Power loss at rated conditions |
12 W |
|
Degree of protection according to EN |
IP20 |
|
Protection class |
1; with ground conductor |
Information About 6ES7505-0RA00-0AB0
The Siemens 6ES7505-0RA00-0AB0 SIMATIC S7-1500 Power Supply is engineered to provide reliable power support for industrial automation applications. With its versatile input range of 24/48/60V DC, this power supply offers flexibility in various operational environments. It is specifically designed for integration within the Siemens SIMATIC S7-1500 system.
This power supply unit is identified by the part number 6ES7505-0RA00-0AB0. It is capable of delivering a power output of 60W, ensuring stable and consistent performance across connected devices and modules within the automation system.
The input specifications include compatibility with DC voltages of 24V, 48V, and 60V, accommodating diverse power input requirements commonly found in industrial setups. This wide input range enhances the adaptability of the power supply to different voltage configurations, allowing seamless integration into various industrial environments.
The Siemens 6ES7505-0RA00-0AB0 power supply unit is equipped with protective features such as reverse polarity protection and short-circuit protection, enhancing operational safety and reliability. These protective mechanisms mitigate the risk of damage to connected devices and ensure the integrity of the power supply unit during operation.
With a rated current consumption of 3A and rated values of 1.5A at 48V DC and 1.2A at 60V DC, this power supply unit efficiently manages power distribution within the automation system while maintaining optimal performance levels. Additionally, it provides power feed to the backplane bus, delivering 60W of power to connected modules and components.
The power supply unit exhibits a power loss of 12W under rated conditions, contributing to energy efficiency and reducing operational costs over the long term. It adheres to the degree of protection standard IP20 according to EN 60529, ensuring adequate protection against solid objects and enhancing the durability of the unit in industrial environments.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
