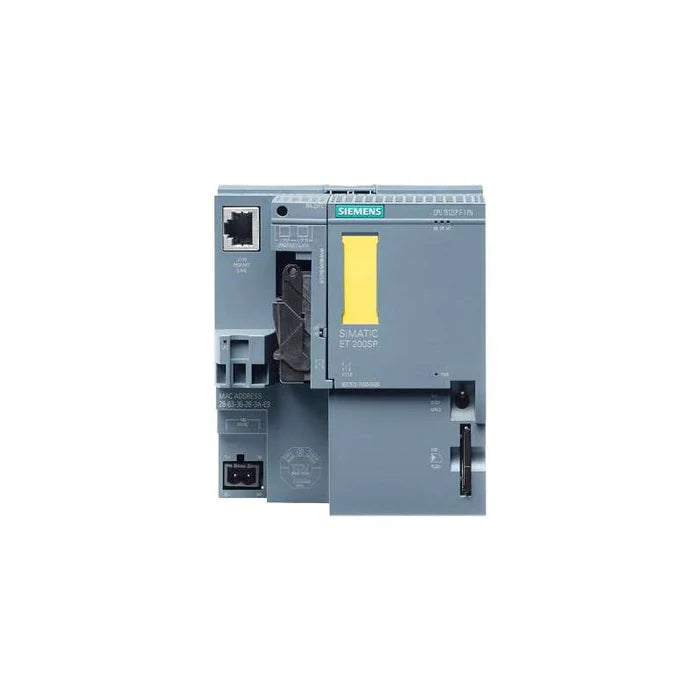

6ES7512-1SK01-0AB0 | Siemens | Central Processing Unit, Memory 300 Kb

Description

Control and automate operations using this PLC CPU from Siemens. When linked with an RJ45 connector, it delivers data at a speed of 100Mbps, so you can be sure of rapid transfers. Thanks to 20 input/output sources, you can control multiple devices at once and maximise productivity. With a supply voltage of 24V DC, this CPU is suited to low-voltage applications. A low current rating of 600mA means it's energy-efficient and keeps heat emission to a minimum. Compact dimensions of 100 (W) x 117 (H) x 75mm (D) mean the unit fits seamlessly into setups with space constraints.

Technical Specifications

Information About 6ES7512-1SK01-0AB0

Siemens SIMATIC central processing unit 300kB and 1MB 6ES7512-1SK01-0AB0 input voltage at DC 19.2 ... 28.8V, type of input voltage DC, number of hardware interfaces Industrial Ethernet 1, number of interfaces PROFINET 1, number of hardware interfaces serial RS -232 0, number of HW interfaces serial RS-422 0, number of HW interfaces serial RS-485 1, number of HW interfaces serial TTY 0, number of HW interfaces USB 0, number of HW interfaces parallel 0 , Number of HW interfaces wireless 0, Number of HW interfaces other 0, With optical interface, Supports protocol for TCP/IP, Supports protocol for PROFIBUS, Supports protocol for ASI, Supports protocol for MODBUS, Supports protocol for PROFINET IO, Supports Protocol for PROFIsafe, supports protocol for other bus systems, system components, degree of protection (IP) IP20, with plug-in modules, digital I/O, with plug-in modules, analog I/O, with plug-in modules, comm Communication modules, with pluggable assemblies, function and technology modules, with pluggable assemblies, central modules, with pluggable assemblies, other, fieldbus connection possible via separate bus coupler, with bus coupler for modular station structure, DIN rail mounting possible, wall/direct mounting possible, suitable for safety functions , SIL according to IEC 61508 3, performance level according to EN ISO 13849-1 level e, explosion protection category for gas ATEX gas explosion protection, cat. 3G, explosion protection category for dust without, width 100mm, height 117mm, depth 75mm, SIMATIC DP, CPU 1512SP F-1 PN for ET 200SP, central processing unit with work memory 300 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 3-port switch, 48 NS bit performance, SIMATIC memory card required, bus adapter required for Port 1 and 2 The SIMATIC ET 200SP is a modular, scalable and highly flexible, distributed I/O system. Due to its small footprint, it is particularly designed for installation in small switch boxes close to the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. The SIMATIC ET 200SP can be expanded with up to 64 I/O modules that can be plugged in in any combination. The system offers a very extensive range of assemblies. Many modules are also available in different versions, which significantly improves scalability in terms of functionality and price. In addition to modules with standard functionality (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. Modules with basic functionality (BA) are available for price-sensitive applications. The advantage of the ET 200SP system is that it is easy to use, e.g. B. through the free choice of the PROFINET connection technology via the bus adapter, the tool-free wiring with push-in technology, improved accessibility of the wiring through the new arrangement of the spring openers next to the associated conductor opening and the channel-specific diagnostic functions. The possibility of changing modules and terminal boxes during operation, the so-called hot-swapping, ensures machine availability and productivity. Interface modules with integrated CPU and PROFINET connection are available for SIMATIC ET 200SP. The functionality corresponds to a CPU of the SIMATIC S7-1500 family. A SIMATIC memory card is required to operate this module.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
