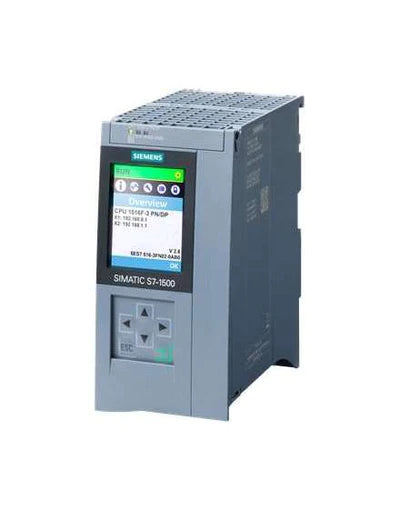

6ES7516-3FN02-0AB0 | Siemens SIMATIC S7-1500F CPU1516F-3 PN/DP Processor
- Regular price
- $4,942.00
- Sale price
- $4,942.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 6ES7516-3FN02-0AB0
Description
The Siemens 6ES7516-3FN02-0AB0 is a SIMATIC S7-1500 CPU 1516-3 PN/DP programmable logic controller (PLC) designed for high-performance automation tasks. It provides powerful processing, integrated PROFINET and PROFIBUS interfaces, and extensive memory resources.
Technical Specifications
Brand | Siemens |
Rated Value (DC) | 24 V |
Permissible Range, Lower Limit (DC) | 19.2 V |
Permissible Range, Upper Limit (DC) | 28.8 V |
Mains/Voltage Failure Stored Energy Time | 5 Ms |
Repeat Rate, Min. | 1/S |
Current Consumption (Rated Value) | 0.85 A |
Current Consumption, Max. | 1.1 A |
Inrush Current, Max. | 2.4 A; Rated Value |
Power Loss, Typ. | 7 W |
Number Of Slots For SIMATIC Memory Card | 1 |
SIMATIC Memory Card Required | Yes |
Plug-In (SIMATIC Memory Card), Max. | 32 Gbyte |
Number Of Elements (Total) | 8 000; Blocks (OB, FB, FC, DB) And UDTs |
Information About 6ES7516-3FN02-0AB0
The 6ES7516-3FN02-0AB0 belongs to the Siemens SIMATIC S7-1500 family, developed to deliver advanced control, communication, and diagnostic capabilities. This CPU model offers 3 MB of program memory and 1.5 MB of data memory, supporting highly complex applications. It features integrated PROFINET (2 ports) and PROFIBUS DP interfaces, enabling seamless communication with field devices and higher-level systems. The controller supports up to 32 distributed I/O stations and up to 2,048 I/O signals. Engineering is carried out in TIA Portal, offering efficient project design, diagnostics, and simulation. Built-in security functions protect against unauthorized access and manipulation, while fast instruction processing ensures optimized cycle times.
Key Features:
- Design: High-performance CPU for the SIMATIC S7-1500 automation platform.
- Memory: 3 MB program memory and 1.5 MB data memory.
- Interfaces: Integrated PROFINET (2 ports) and PROFIBUS DP communication.
- Performance: Optimized cycle times for complex and time-critical processes.
- Capacity: Supports up to 32 distributed I/O stations and 2,048 I/O signals.
- Diagnostics: Comprehensive system diagnostics with detailed fault information.
- Security: Built-in protection against unauthorized access and program changes.
- Application Range: Suitable for large-scale machine automation, process industries, and high-performance control tasks.
The 6ES7516-3FN02-0AB0 delivers the speed, connectivity, and reliability required for advanced industrial automation and process control systems.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
