Product Description P/N: 6ES7517-3FP00-0AB0
Description

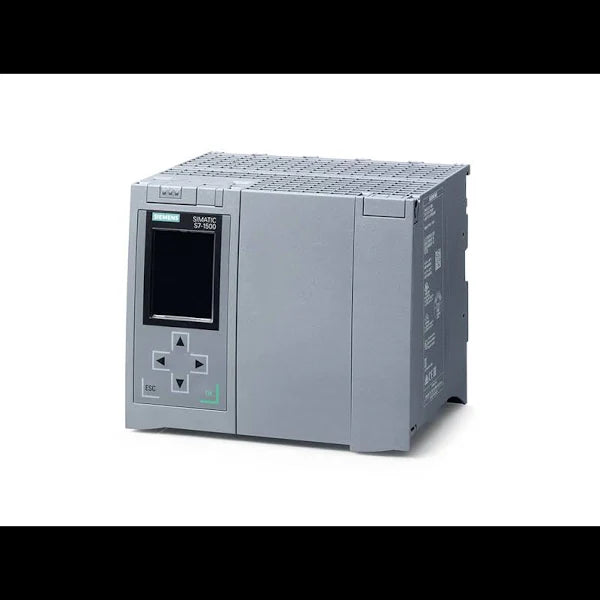

The Siemens 6ES7517-3FP00-0AB0 is a SIMATIC S7-1500 CPU 1517-3 PN/DP programmable logic controller (PLC) designed for high-end automation tasks. It provides powerful processing performance, integrated PROFINET and PROFIBUS interfaces, and extensive communication capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Control Devices |
| Part Number | 6ES7517-3FP00-0AB0 |
| Subcategory | CPU & Control Circuit Boards |
| Product Type | CPU 1517F-3PN/DP (SIMATIC S7-1500F) |
| Firmware Version | V2.9 |
| Work Memory | 3 MB program / 8 MB data |
| Communication Interfaces | PROFINET IRT (2-port switch), PROFINET RT, PROFIBUS |
| Performance | 2 ns bit performance |
| Memory Card Requirement | SIMATIC memory card required |
| Display | 6.1 cm screen diagonal |
| Rated Supply Voltage | 24 VDC |
| Supply Voltage Range | 19.2–28.8 VDC |
| Reverse Polarity Protection | Yes |
| Current Consumption (Rated) | 1.55 A |
| Inrush Current (Max) | 2.4 A |
| I²t Value | 0.02 A²·s |
| Max. I/O Modules Supported | 16,384 modules/submodules |
| Max. Subprocess Images | 32 |
| Dimensions (W × H × D) | 175 × 147 × 129 mm |
| Unit Weight | 1.98 kg (approx.) |
| Shipping Weight | 3 kg |
| Weight | 0.91 kgs |
Information About 6ES7517-3FP00-0AB0
The 6ES7517-3FP00-0AB0 is part of the Siemens SIMATIC S7-1500 controller family, developed for maximum performance and scalability in industrial automation. It offers 6 MB of program memory and 20 MB of data memory, supporting highly complex automation programs and fast cycle times. The CPU includes two integrated PROFINET interfaces and one integrated PROFIBUS DP master/slave interface, enabling seamless communication with distributed I/O, drives, and HMI systems. It supports up to 192 PROFINET devices and 125 connections per interface, offering exceptional network capacity. Engineered using TIA Portal, the CPU also includes integrated system diagnostics, security functions, and trace functionality for advanced troubleshooting and motion control.
Key Features:
- Design: High-performance CPU for SIMATIC S7-1500 automation systems.
- Memory: 6 MB program memory and 20 MB data memory.
- Interfaces: Dual PROFINET ports and one PROFIBUS DP interface.
- Performance: Extremely fast instruction processing for complex tasks.
- Communication: Supports up to 192 PROFINET devices and 125 connections per interface.
- Diagnostics: Integrated system diagnostics and trace functions for detailed analysis.
- Security: Includes access protection and manipulation protection features.
- Application Range: Ideal for large machines, process automation, and high-speed manufacturing.
The 6ES7517-3FP00-0AB0 delivers the performance, communication capacity, and reliability required for demanding industrial automation applications.
