Product Description P/N: 6ES7522-1BH01-0AB0

Description / Specifications

Description

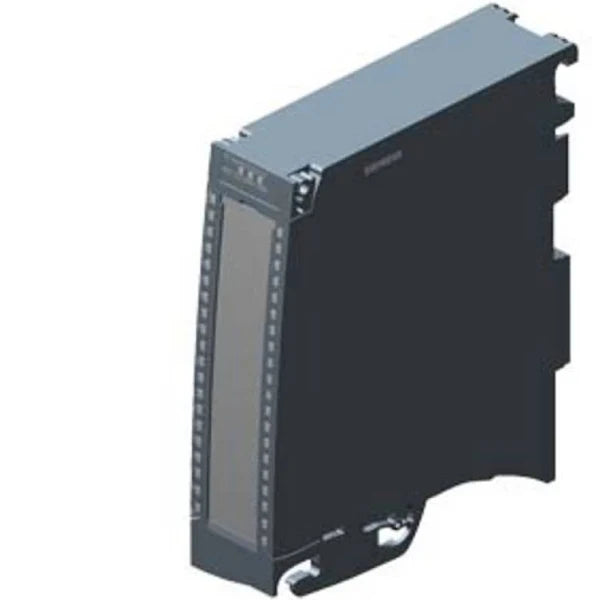

The Siemens 6ES7522-1BH01-0AB0 is a SIMATIC S7-1500 digital output module designed to control actuators and devices in industrial automation systems. It provides 16 high-speed digital outputs at 24V DC. This unit is widely used in machine building, material handling, and process automation applications.





Technical Specifications

Brand Siemens
Part Number 6ES7522-1BH01-0AB0
Number of IO Ports 16
Number of Outputs 16
Output Type Digital
Series S7-1500 Series
Supply Voltage 24 VDC
Mounting Type DIN Rail
Termination Style Screw Terminal
Operating Temperature -30°C ~ 60°C
Output Current (A) 0.5
Current Consumption (A) 0.03
Backplane Power Consumption (W) 0.7W
Dimensions H x W x D (mm) 147 x 35 x 129





Information About 6ES7522-1BH01-0AB0

The 6ES7522-1BH01-0AB0 is part of the Siemens SIMATIC S7-1500 SM 522 series, developed to offer flexible and high-performance digital output modules. It provides 16 sourcing (high-side) outputs, each rated at 24V DC / 0.5 A, suitable for driving relays, solenoids, lamps, and other actuators. The module features diagnostics for wire break, short circuit, and overload, enhancing system reliability and simplifying maintenance. It communicates with the CPU via the S7-1500 backplane bus and supports parameterization and monitoring in TIA Portal. Integrated output grouping and fast switching capabilities allow precise control of high-speed processes. Its compact design ensures efficient panel space usage in modular automation systems.

Key Features:

  • Design: 16-channel digital output module for SIMATIC S7-1500 systems.
  • Output Type: 24V DC sourcing (high-side) outputs.
  • Output Rating: 0.5 A per channel for driving various loads.
  • Performance: Fast switching capability for time-critical processes.
  • Diagnostics: Detects wire break, short circuit, and overload conditions.
  • Integration: Configured and monitored using Siemens TIA Portal.
  • Installation: Compact modular design for S7-1500 racks.
  • Application Range: Ideal for machine control, material handling, and process automation.

The 6ES7522-1BH01-0AB0 delivers the speed, diagnostic functions, and reliability required for precise digital output control in S7-1500 automation systems.



    Manufacturer information

    Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
