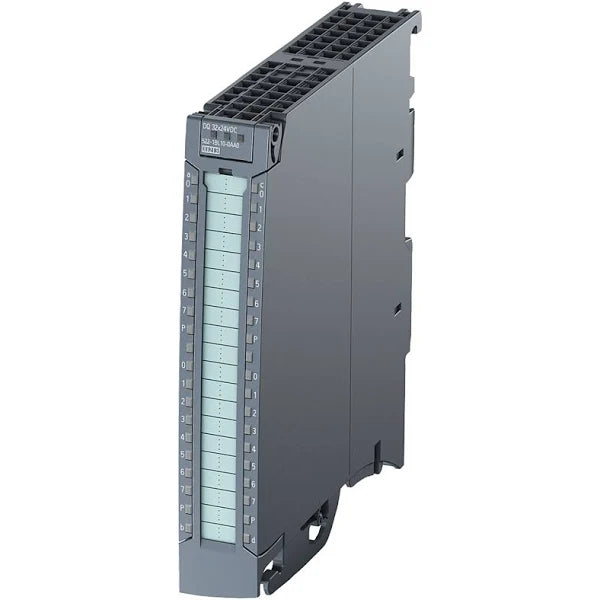

6ES7522-1BL01-0AB0 | Siemens SIMATIC S7-1500 Digital Output Module, 32× 24V DC Outputs
- Regular price
- $579.00
- Sale price
- $579.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7522-1BL01-0AB0
Description
The Siemens 6ES7522-1BL01-0AB0 is a high-feature digital output module designed for the SIMATIC S7-1500 automation platform, offering 32 channels of 24V DC outputs organized in groups of eight. Each group supports up to 4A total load, providing reliable control of industrial actuators with built-in diagnostics for robust system performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Subcategory | VDC Logic I/O Module |
| Part Number | 6ES7522-1BL01-0AB0 |
| Product Series | SIMATIC |
| Sub-range | S7-1500 |
| Design | High Feature |
| Main Function | DC Digital Output Module |
| Digital Outputs | 32 × 24V DC, 500 mA each |
| Output Grouping | 4 groups of 8 outputs, 4A per group |
| Load Type | Resistive loads 48–12,000 Ω |
| Operating Mode | Isochronous mode |
| Diagnostics | Wire-break, short-circuit, group error, supply voltage monitoring |
| I&M Functions | I&M0 to I&M3 |
| Voltage (DC) | 24 VDC |
| Interface Indicators | LED status indicators |
| Degree of Protection | IP20 |
| Mounting Mode | Backplane / Rack |
| Dimensions (H×W×D) | 147 × 35 × 129 mm |
Information About 6ES7522-1BL01-0AB0
The 6ES7522-1BL01-0AB0 is part of the Siemens SIMATIC S7-1500 family and serves as a high-feature digital output module for advanced automation tasks. It is engineered to provide 32 channels of fast, accurate 24V DC output control, organized in electrically separated groups for improved safety and reliability. Designed for use in isochronous mode, the module supports synchronized and deterministic control cycles required in high-speed production environments. Its extensive diagnostics—covering wire-break detection, short-circuit monitoring, supply voltage problems, and group-level errors—ensures rapid fault identification and system stability. The module features potential separation, LED indicators for clear status feedback, and compatibility with standard S7-1500 backplane systems, making it an essential component for modern industrial automation setups.
Key Features
- High-density 32-channel output architecture: provides extensive output capability for controlling actuators, solenoids, valves, and high-speed equipment across a single compact module.
- Grouped output design for electrical protection: four isolated groups of eight outputs allow separation of machine zones, minimizing fault propagation and improving system resilience.
- Advanced diagnostic intelligence: includes wire-break detection, short-circuit monitoring, load supply supervision, and group-level error reporting to streamline troubleshooting and improve uptime.
- Isochronous operation capability: supports synchronized signal output for precise timing, making the module suitable for motion control, packaging machinery, and high-speed production lines.
- Robust 24V DC output performance: each channel supports up to 500 mA with resistive loads from 48 to 12,000 Ω, ensuring adaptability to a wide range of industrial devices.
- Integrated I&M functions (I&M0–I&M3): allows module identification, maintenance data storage, and lifecycle tracking to support structured system documentation.
- Potential separation between groups: enhances safety and reduces electrical interference, enabling clean signal operation in harsh industrial environments.
- Compact IP20 industrial design: optimized for control cabinets with S7-1500 rack mounting, offering durability, space efficiency, and easy wiring access via LED diagnostics.
The 6ES7522-1BL01-0AB0 delivers the reliability and precision required for high-performance digital output control within SIMATIC S7-1500 automation systems.
