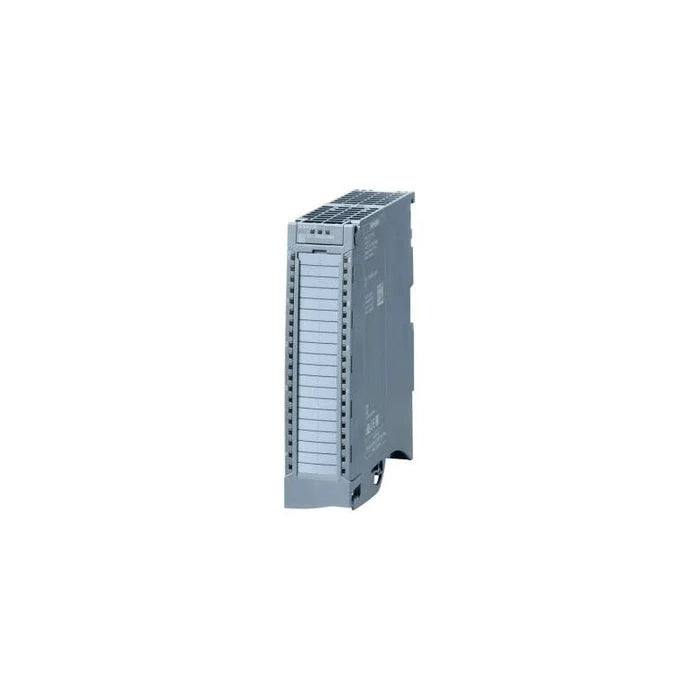

6ES7531-7NF00-0AB0 | SIEMENS SIMATIC S7-1500 Analog Input AI 8xU/I/ HF
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7531-7NF00-0AB0
Description
The Siemens 6ES7531-7NF00-0AB0 is a SIMATIC S7-1500 analog input module designed for precise signal acquisition in industrial control systems. It provides 8 differential analog input channels with high resolution and accuracy.
Technical Specifications
| Brand | SIEMENS |
| Number Of Inputs | 8 |
| Resolution | 24 bit |
| Accuracy | 0.05/0.1% Voltage/Current |
| Voltage Rating | 24 VDC |
| Amperage Rating | 50 mA |
| Terminal Type | Push-In/Screw |
| Temperature Rating | 0 to 40 deg C Vertical, 0 to 60 deg C Horizontal |
| Dimensions | 147 mm H x 35 mm W x 129 mm D |
| Display | LED indicator |
| Degree of protection | IP20 |
Information About 6ES7531-7NF00-0AB0
The 6ES7531-7NF00-0AB0 is part of the Siemens SIMATIC S7-1500 automation platform, specifically the SM 531 AI 8xU/I/RTD/TC module type. It supports universal analog inputs, accepting voltage (±10 V, 0–10 V), current (0/4–20 mA), RTDs (Pt100, Pt1000), and thermocouples (type J, K, T, etc.). With 16-bit resolution and channel-to-channel isolation, it ensures accurate measurement even in noisy industrial environments. Integrated diagnostics detect wire breaks, short circuits, and out-of-range signals, enhancing system reliability. The module communicates via the S7-1500 backplane bus and is configured using TIA Portal, allowing seamless integration with Siemens controllers. Its compact design fits standard S7-1500 racks, enabling scalable analog input expansion.
Key Features:
- Design: Universal analog input module for SIMATIC S7-1500 systems.
- Channels: 8 differential analog inputs.
- Signal Types: Supports voltage, current, RTD, and thermocouple inputs.
- Resolution: 16-bit for high-precision signal acquisition.
- Diagnostics: Detects wire break, short circuit, and range errors.
- Isolation: Channel-to-channel isolation ensures signal integrity.
- Integration: Configured via TIA Portal and communicates over the backplane bus.
- Application Range: Ideal for process automation, machine control, and industrial monitoring.
The 6ES7531-7NF00-0AB0 delivers the flexibility, precision, and reliability required for high-quality analog data acquisition in S7-1500 automation systems.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
