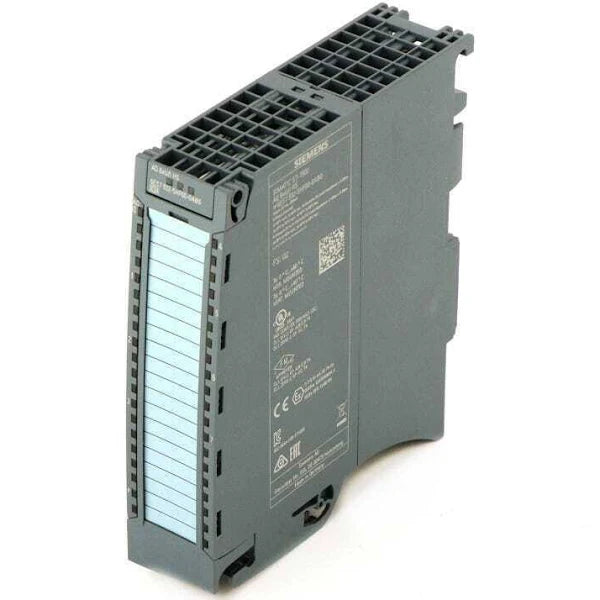

6ES7532-5HF00-0AB0 | Siemens Analog Output Module
6ES7532-5HF00-0AB0 | Siemens Analog Output Module
6ES7532-5HF00-0AB0 | Siemens Analog Output Module
    6ES7532-5HF00-0AB0 | Siemens Analog Output Module
6ES7532-5HF00-0AB0 | Siemens Analog Output Module

6ES7532-5HF00-0AB0 | Siemens Analog Output Module

Part #: 6ES7532-5HF00-0AB0 Manufactured by: Siemens
Regular price
$659.00
Sale price
$659.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens 6ES7532-5HF00-0AB0 SIMATIC S7-1500 Analog Output Module AQ 8xU/I HS, also identified by the part number 6ES75...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6ES7532-5HF00-0AB0
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 6ES7532-5HF00-0AB0

Description / Specifications

Description

The Siemens 6ES7532-5HF00-0AB0 SIMATIC S7-1500 Analog Output Module AQ 8xU/I HS is a specialized component designed for the Siemens SIMATIC S7-1500 series programmable logic controllers (PLCs). It facilitates analog output functionalities with high-speed performance.

Featuring 8 channels, this module supports both current and voltage outputs, providing versatility in various industrial applications. The supported output voltage ranges include 0-10V, 1-5V, and -10V to +10V, while the supported current ranges encompass 0-20mA, -20mA to +20mA, and 4-20mA.

Equipped with 16-bit resolution, the module ensures precise and accurate analog signal processing, essential for demanding control and monitoring tasks in industrial automation environments.

Manufactured by Siemens, a leader in industrial automation solutions, the 6ES7532-5HF00-0AB0 module meets rigorous quality standards, ensuring reliable and efficient performance in industrial applications requiring analog output control.





Technical Specifications

Part #

6ES7532-5HF00-0AB0

Manufacturer

SIEMENS

Category

PLCs/Machine Control

Subcategory

VDC Logic I/O Module

Product type designation

AQ 8xU/I HS

Hardware version

E01

Firmware version

V2.0.0

I&M data

Yes; IM0 to IM3

Engineering with STEP 7 TIA Portal

Can be configured/integrated as of version V12.0 / V12.0

STEP 7

Can be configured/integrated as of version as of V5.5 SP3 / -

MSO

Yes

Parameter assignment in RUN possible

Yes

Calibration in RUN possible

Yes

Type of supply voltage

DC

Rated value (DC)

24 V

Valid range, low limit (DC)

20.4 V

Valid range, high limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

260 mA; (with 24 V DC supply)

Power consumption from the backplane bus

1.15 W

Power loss, typ.

7 W

Number of analog outputs

8

Voltage output, short-circuit protection

Yes

Voltage output, short-circuit current, max.

45 mA

Current output, open-circuit voltage, max.

20 V

Cycle time (all channels)

min. 125 µs; (regardless of the number of activated channels)





Information About 6ES7532-5HF00-0AB0

The Siemens 6ES7532-5HF00-0AB0 SIMATIC S7-1500 Analog Output Module AQ 8xU/I HS is designed to provide precise analog output signals in industrial automation applications. With the part number 6ES7532-5HF00-0AB0, this module belongs to the SIMATIC S7-1500 series, offering high-performance analog output capabilities.

Featuring 8 current/voltage outputs, this module enables flexible control over various industrial processes. It supports a wide range of analog output signals, including 0-10V, 1-5V, -10V to +10V, 0-20mA, -20mA to +20mA, and 4-20mA. The 16-bit resolution ensures accurate and finely tuned analog signal generation, meeting the demands of modern automation systems.

The Siemens 6ES7532-5HF00-0AB0 module integrates seamlessly with the SIMATIC S7-1500 platform, allowing for easy configuration and integration into industrial control systems. Its compatibility with STEP 7 TIA Portal enables efficient engineering and programming, enhancing productivity and system performance.

With a robust design and reliable construction, this analog output module ensures stable and consistent operation even in demanding industrial environments. Its high-speed operation and precise signal generation make it suitable for a wide range of applications, including process control, monitoring, and automation tasks.

The module supports a variety of operating modes, including MSO (multi-slot operation), allowing for flexible configuration and parameter adjustment even during runtime. It offers comprehensive diagnostic capabilities and supports online parameterization, calibration, and configuration, enhancing system flexibility and ease of maintenance.

For power supply, the module operates on a DC voltage of 24V, with a valid range between 20.4V to 28.8V, ensuring stable and reliable performance. It consumes a maximum current of 260mA with a 24V DC power supply, making it



Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
