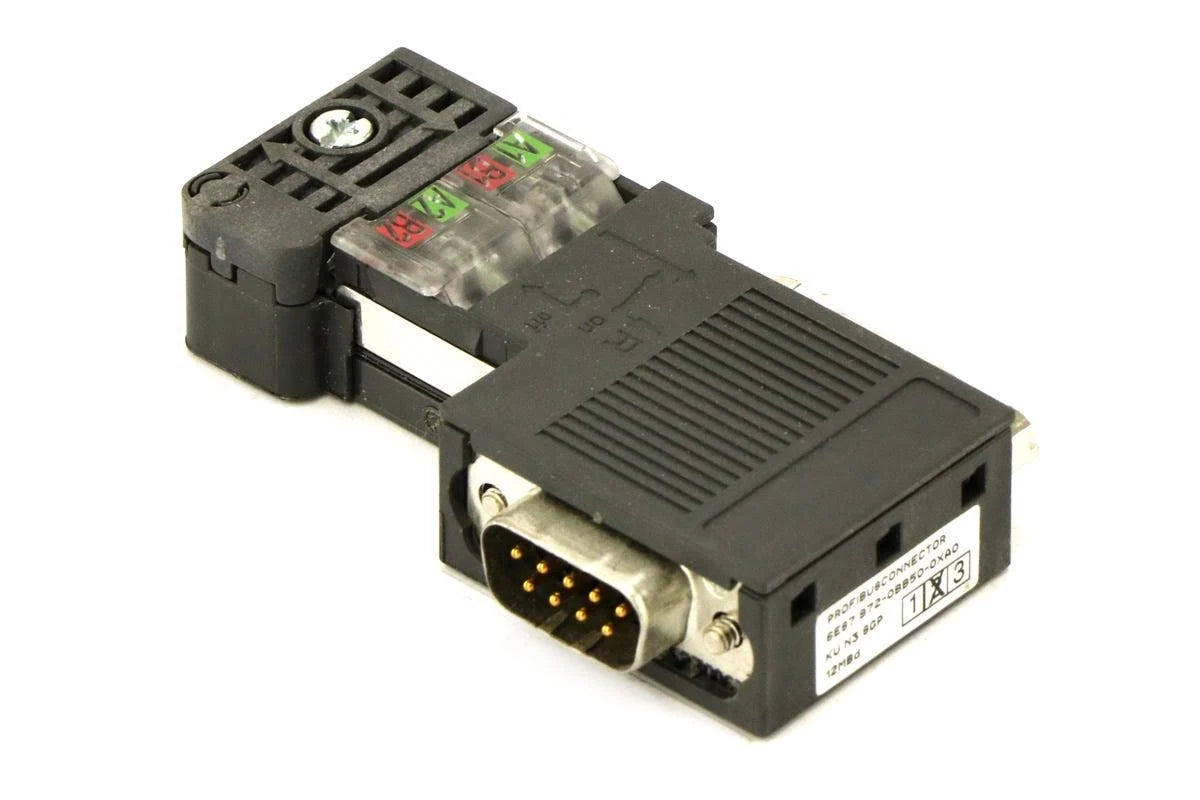

6ES7972-0BB50-0XA0 | Siemens SIMATIC DP PB Connector 90 Degree
- Regular price
- $72.00
- Sale price
- $72.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7972-0BB50-0XA0
Description
The Siemens 6ES7972-0BB50-0XA0 is a SIMATIC DP bus connector designed for PROFIBUS networks, featuring a 90-degree angled cable outlet. It supports high-speed data transmission up to 12 Mbit/s and incorporates Siemens’ Fast Connect (IPCD) technology for rapid and secure installation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Components
|
| Part Number | 6ES7972-0BB50-0XA0 |
| Subcategory | Connector/Terminal/Pin |
| Series | SIMATIC DP |
| Connector Type | PROFIBUS Bus Connector |
| Cable Outlet | 90-Degree Angle |
| Transmission Rate | Up to 12 Mbit/s |
| Technology | IPCD Fast Connect |
| PG Socket | Yes (included for diagnostics/programming access) |
| Dimensions (W x H x D) | 15.8 x 72.2 x 36.4 mm |
| Use Case | PROFIBUS Device Field Connection |
| Weight | 0,060 Kg |
Information About 6ES7972-0BB50-0XA0
The 6ES7972-0BB50-0XA0 SIMATIC DP connector is engineered for efficient connection of PROFIBUS cables to field devices in industrial automation systems. With its angled 90° cable outlet, the connector facilitates space-saving installation, particularly in tight control panel layouts. Measuring 15.8 x 72.2 x 36.4 mm (W x H x D), it is compact yet robust, making it suitable for demanding environments. The integrated PG socket allows for tool-free connection of programming devices without disconnecting the field cable. Siemens' IPCD Fast Connect technology ensures secure and rapid wiring with minimal effort, enhancing both installation speed and signal integrity.
Key Features:
- 90° Cable Outlet Design: Optimized for compact installations and panel space constraints.
- High-Speed Transmission: Supports PROFIBUS data rates up to 12 Mbit/s for demanding automation systems.
- Fast Connect Technology: Siemens IPCD technology enables secure, time-saving wire termination.
- Integrated PG Socket: Allows parallel access for programming or diagnostics without cable disconnection.
- Rugged Construction: Industrial-grade design for reliable operation in harsh environments.
- Compact Dimensions: 15.8 mm wide, 72.2 mm high, and 36.4 mm deep — ideal for dense installations.
- Standards Compliance: Designed to meet Siemens SIMATIC DP specifications for PROFIBUS field connectivity.
The 6ES7972-0BB50-0XA0 provides a reliable and space-efficient solution for connecting PROFIBUS field devices, simplifying both installation and maintenance workflows.
