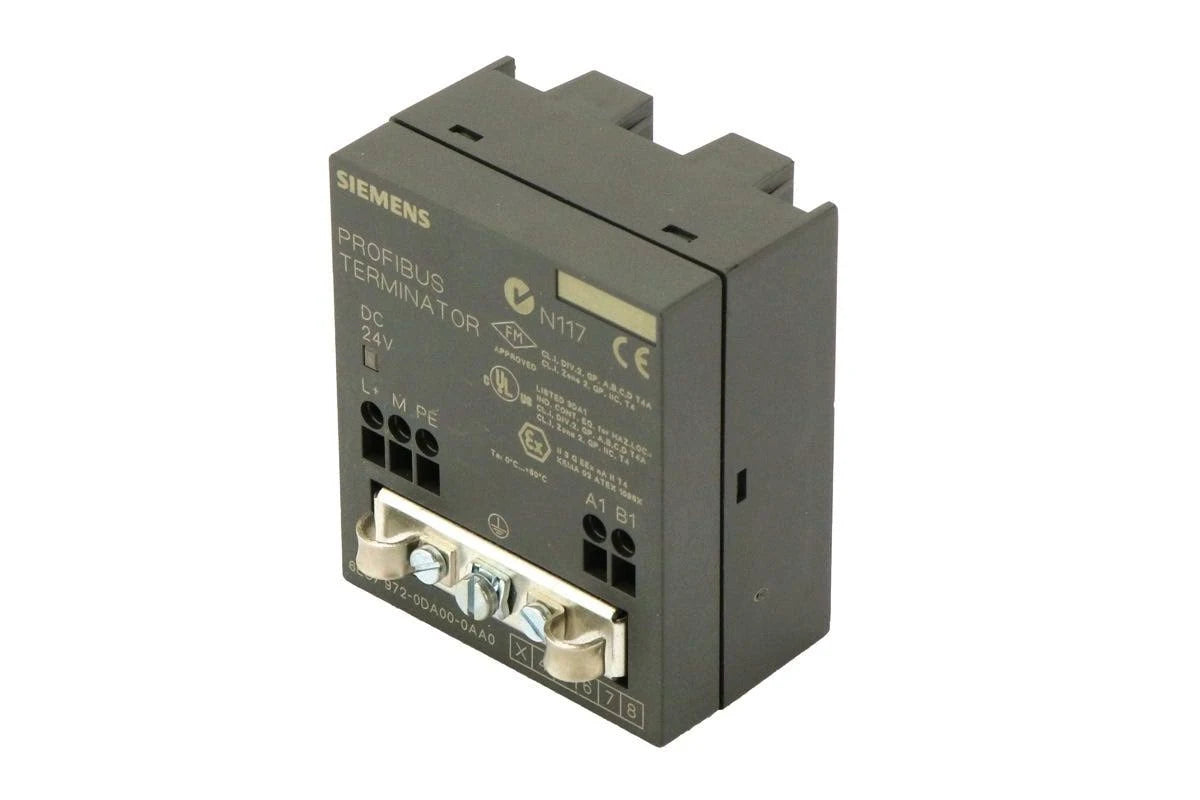

6ES7972-0DA00-0AA0 | Siemens SIMATIC DP RS485 Terminating Resistor for Terminating PROFIBUS/MPI Networks
- Regular price
- $179.00
- Sale price
- $179.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7972-0DA00-0AA0
Description
The Siemens 6ES7972-0DA00-0AA0 is a robust RS485 terminating resistor designed to reliably terminate PROFIBUS and MPI networks. It ensures stable data communication and reduces signal reflections in fieldbus and industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category | Components |
| Part Number | 6ES7972-0DA00-0AA0 |
| Subcategory | Resistors |
|
Rated Value (DC)
|
20.4 V - 28.8 V |
| Input Current Consumption, typ. | 30 mA |
| Power Loss, max | 0.72 W |
| Transmission Rate, max | 12 Mbit/s; 9.6 kbit/s to 12 Mbit/s |
| IP Degree Of Protection | IP20 |
| Ambient Temperature During Operation |
0 °C - 60 °C |
| Ambient Temperature During Storage/Transportation | -40 °C - 70 °C |
| Relative Humidity | Operation, max.:95 %; at +25 °C |
| Connection Method | Screw terminal block |
| Weight | 0.095 kgs |
| Dimensions (W x H x D) | 60 mm x 70 mm x 43 mm |
Information About 6ES7972-0DA00-0AA0
The Siemens 6ES7972-0DA00-0AA0 is a high-quality RS485 terminating resistor designed for the reliable termination of PROFIBUS and MPI networks in industrial automation environments. As part of the Siemens SIMATIC range, this terminating resistor ensures optimal data transmission performance by minimizing signal reflections and maintaining signal integrity across fieldbus connections.
Key Features:
-
Reliable Termination: Provides proper electrical termination for RS485 bus lines in PROFIBUS and MPI networks, preventing signal reflections that could cause data transmission errors.
-
Simple Installation: Features a plug-and-play design that allows for quick and hassle-free installation, ensuring fast deployment and minimal downtime.
-
Compact Form Factor: Engineered with a compact size, it fits neatly into bus connectors and field devices, ensuring efficient use of space within control cabinets and field installations.
-
Durable Construction: Built with Siemens’ robust quality standards, ensuring long service life and reliable operation in harsh industrial environments.
-
Compatibility: Fully compatible with Siemens SIMATIC components and other PROFIBUS/MPI-compliant devices, making it a versatile solution for terminating fieldbus networks.
-
Optimized Signal Integrity: Maintains the integrity of data communication in RS485 networks by stabilizing the bus and eliminating line reflections.
-
Versatile Applications: Suitable for use in various industrial sectors, including factory automation, process control, and building automation systems.
The Siemens 6ES7972-0DA00-0AA0 terminating resistor is an essential accessory for stable PROFIBUS and MPI network performance, supporting efficient and error-free data exchange in industrial communication systems.
