6FC5303-0AA00-2AA0 | Siemens Sinumerik Handheld Terminal
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6FC5303-0AA00-2AA0
Description

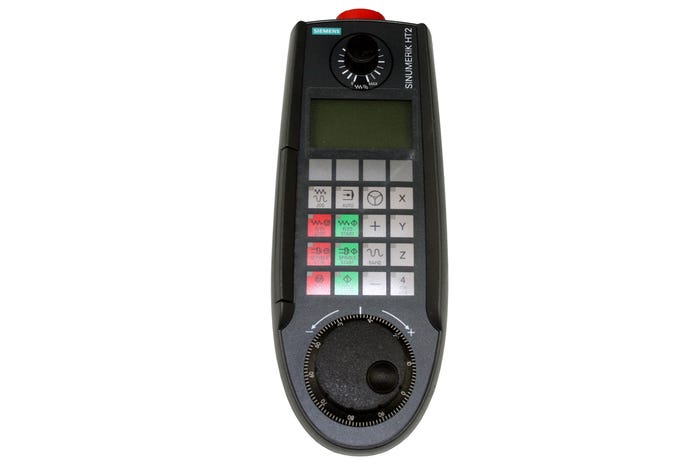

The Siemens SINUMERIK HT 2 Handheld Terminal (6FC5303-0AA00-2AA0) is a robust and ergonomic operator interface designed for manual control and setup of CNC machine tools.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Servo Products
|
| Part Number | 6FC5303-0AA00-2AA0 |
| Subcatecory |
Teach Pendant
|
| Number of Keys | 20 MEM keys |
| Emergency Stop |
Yes (Emergency Stop Button) |
| Channel Configuration | 2-channel |
| Step Type | Three-step |
| Enabling Buttons | 2 enabling buttons |
| Wheel Type | Magnetic wheel |
| Override Control | Override rotary button |
| Key Switch | 3-position key switch (2 keys) |
| Power Supply | 24 VDC |
| Ingress Protection Rating | IP65 |
| Weight | 0,690 kgs |
Information About 6FC5303-0AA00-2AA0
The Siemens SINUMERIK HT 2 Handheld Terminal (Part Number: 6FC5303-0AA00-2AA0) is a rugged and ergonomic operator interface designed for manual control and setup of CNC machine tools. It integrates seamlessly with SINUMERIK systems, providing intuitive operation in demanding industrial environments.
Key Features:
-
Display: 4-line monochrome LCD with 128 × 64 pixel resolution
-
Input Voltage: 24 V DC
-
Power Consumption: Maximum 2.5 W
-
Protection Class: IP65 (dust-tight and protected against water jets)
-
Weight: Approximately 0.69 kg
-
Dimensions: Width: 100 mm, Height: 76.2 mm, Length: 255 mm
-
Operating Temperature: 0 to 55 °C
-
Storage Temperature: -20 to 55 °C
-
Relative Humidity: 5% to 95% (non-condensing)
-
Certifications: CE, cULus
-
Country of Origin: Austria
The SINUMERIK HT 2 handheld terminal is engineered for ease of use, durability, and precise manual control during machine setup and operation. Its compact design and IP65-rated enclosure make it suitable for harsh industrial settings. The terminal's compatibility with SINUMERIK systems ensures seamless integration into existing CNC environments.
Description
The Siemens SINUMERIK HT 2 Handheld Terminal (6FC5303-0AA00-2AA0) is a robust and ergonomic operator interface designed for manual control and setup of CNC machine tools.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Servo Products
|
| Part Number | 6FC5303-0AA00-2AA0 |
| Subcatecory |
Teach Pendant
|
| Number of Keys | 20 MEM keys |
| Emergency Stop |
Yes (Emergency Stop Button) |
| Channel Configuration | 2-channel |
| Step Type | Three-step |
| Enabling Buttons | 2 enabling buttons |
| Wheel Type | Magnetic wheel |
| Override Control | Override rotary button |
| Key Switch | 3-position key switch (2 keys) |
| Power Supply | 24 VDC |
| Ingress Protection Rating | IP65 |
| Weight | 0,690 kgs |
Information About 6FC5303-0AA00-2AA0
The Siemens SINUMERIK HT 2 Handheld Terminal (Part Number: 6FC5303-0AA00-2AA0) is a rugged and ergonomic operator interface designed for manual control and setup of CNC machine tools. It integrates seamlessly with SINUMERIK systems, providing intuitive operation in demanding industrial environments.
Key Features:
-
Display: 4-line monochrome LCD with 128 × 64 pixel resolution
-
Input Voltage: 24 V DC
-
Power Consumption: Maximum 2.5 W
-
Protection Class: IP65 (dust-tight and protected against water jets)
-
Weight: Approximately 0.69 kg
-
Dimensions: Width: 100 mm, Height: 76.2 mm, Length: 255 mm
-
Operating Temperature: 0 to 55 °C
-
Storage Temperature: -20 to 55 °C
-
Relative Humidity: 5% to 95% (non-condensing)
-
Certifications: CE, cULus
-
Country of Origin: Austria
The SINUMERIK HT 2 handheld terminal is engineered for ease of use, durability, and precise manual control during machine setup and operation. Its compact design and IP65-rated enclosure make it suitable for harsh industrial settings. The terminal's compatibility with SINUMERIK systems ensures seamless integration into existing CNC environments.
