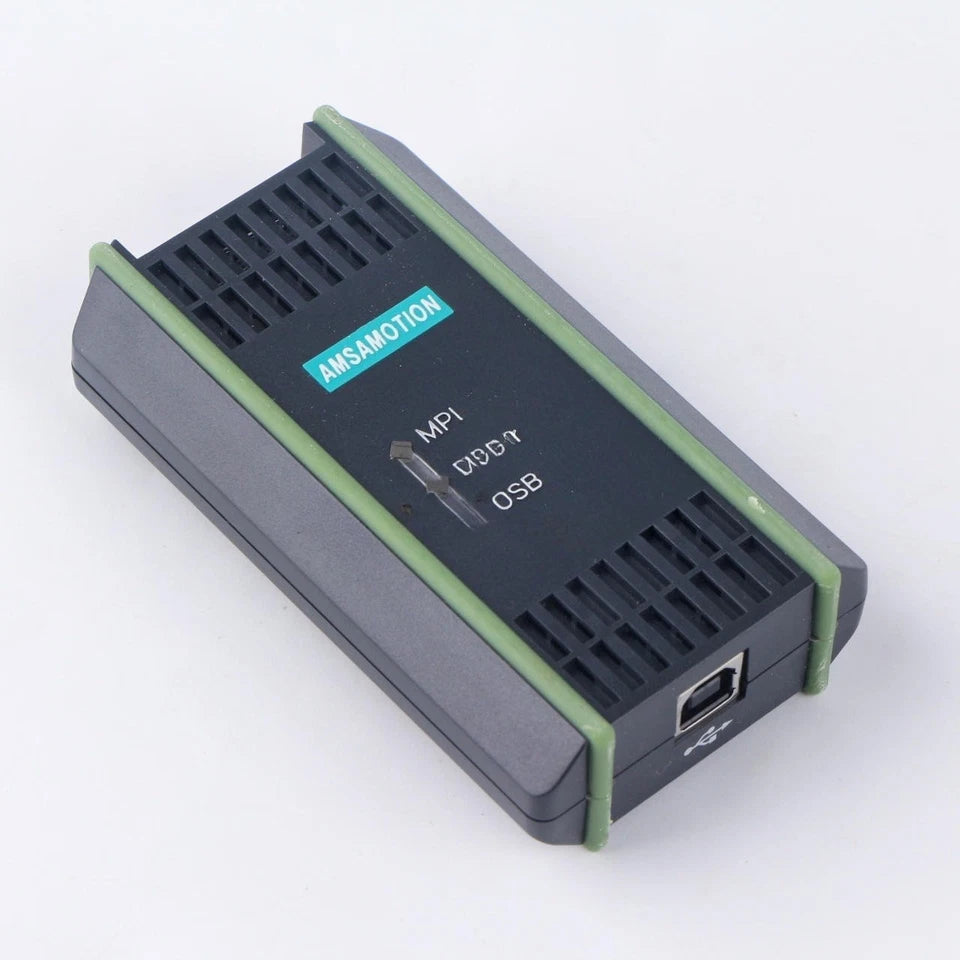

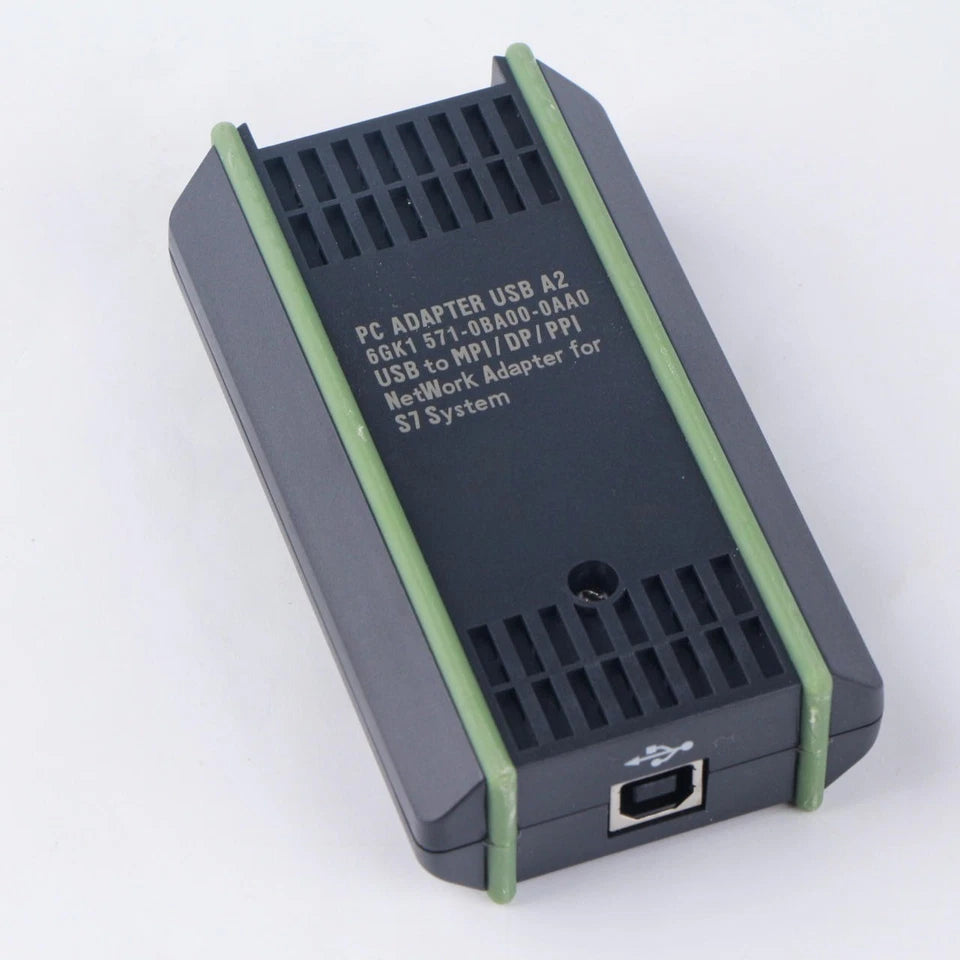

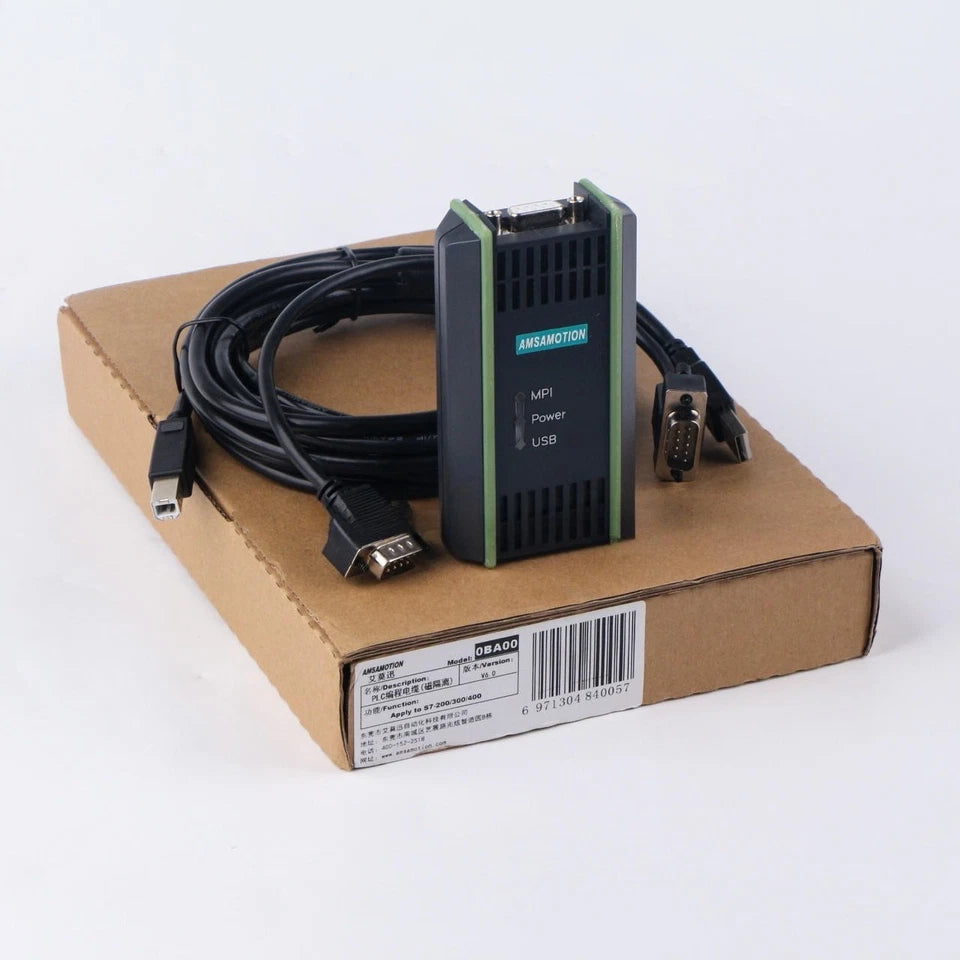

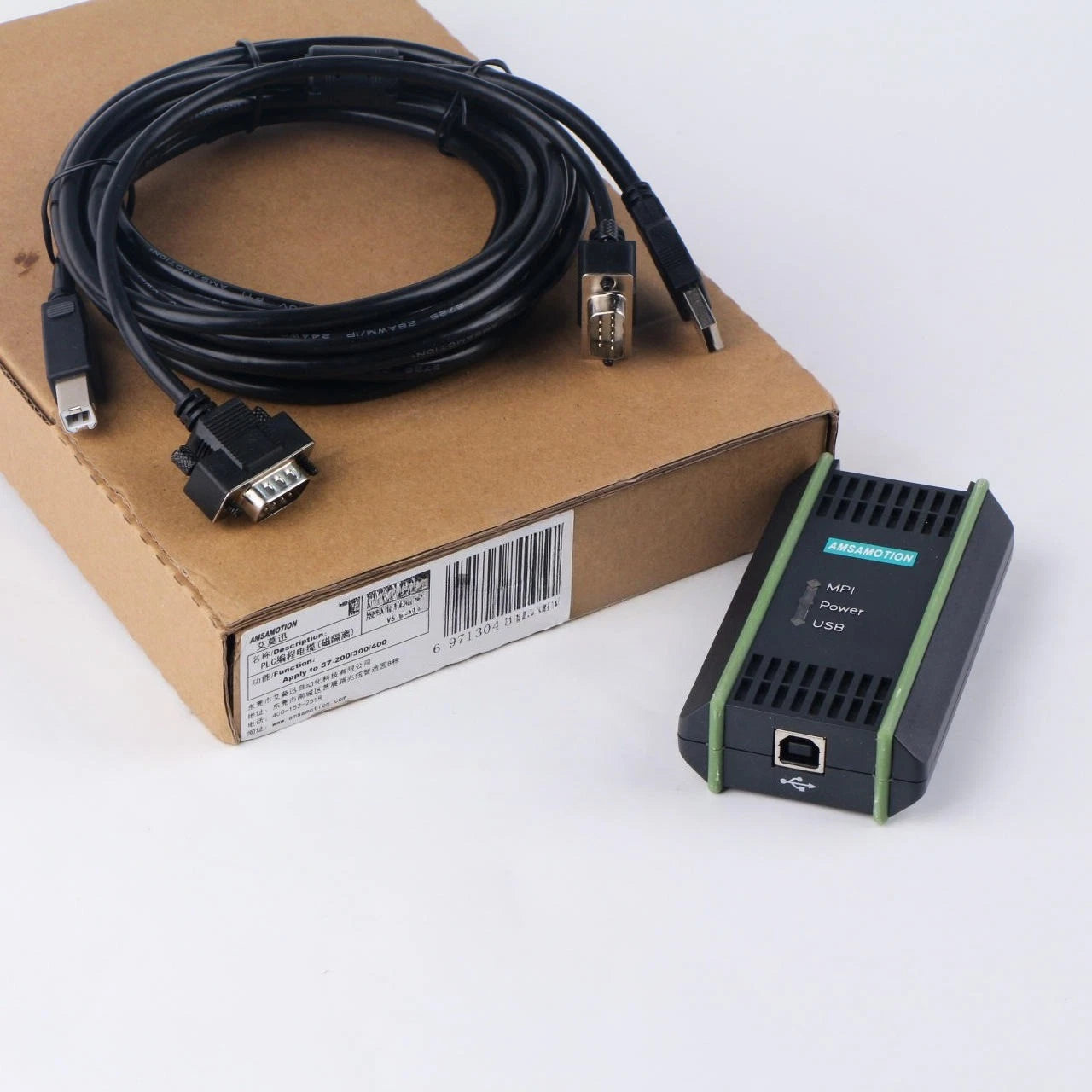

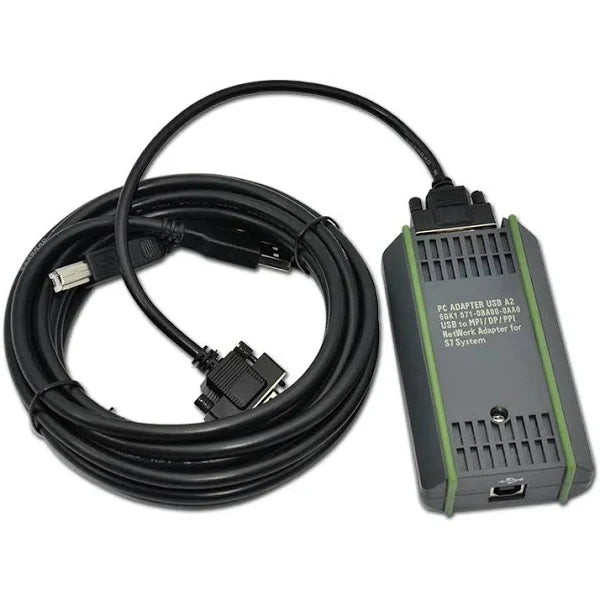

6GK1571-0BA00-0AA0 | Siemens SIMATIC S7 USB PC Adapter (USB-to-RS485 PROFIBUS/MPI Interface)
- Regular price
- $189.00
- Sale price
- $189.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6GK1571-0BA00-0AA0
Description

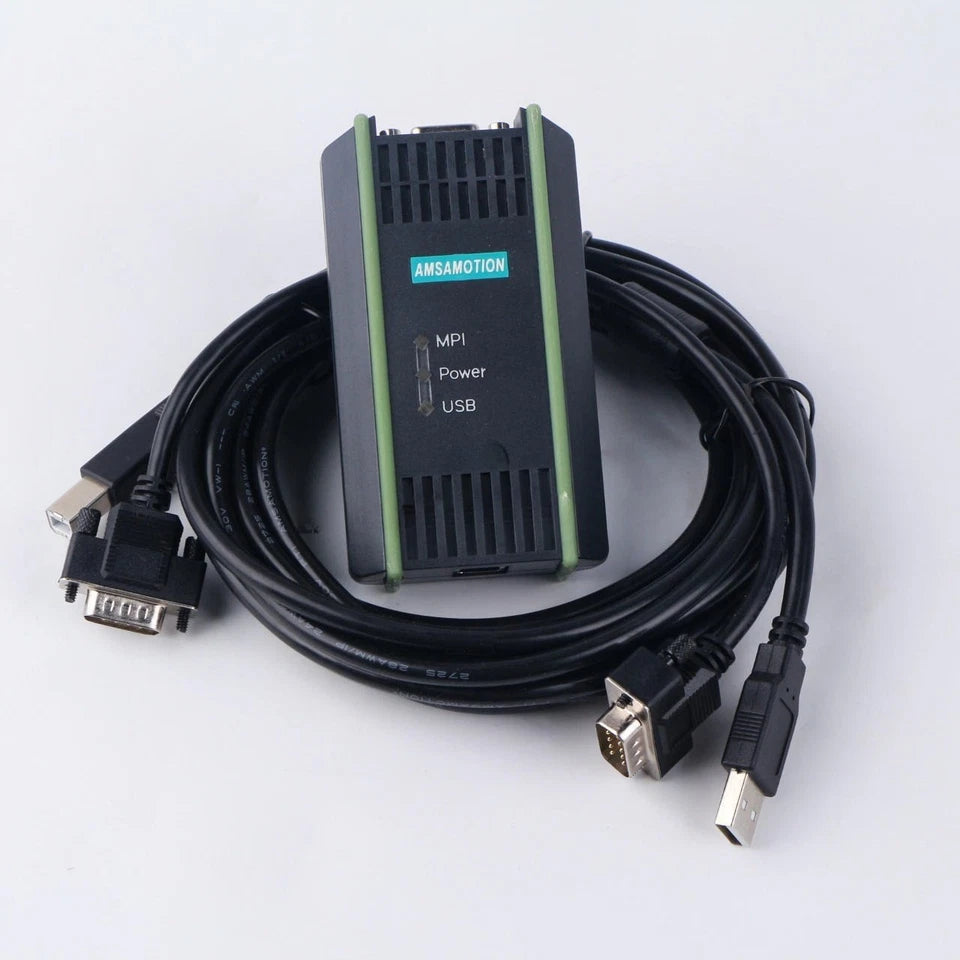

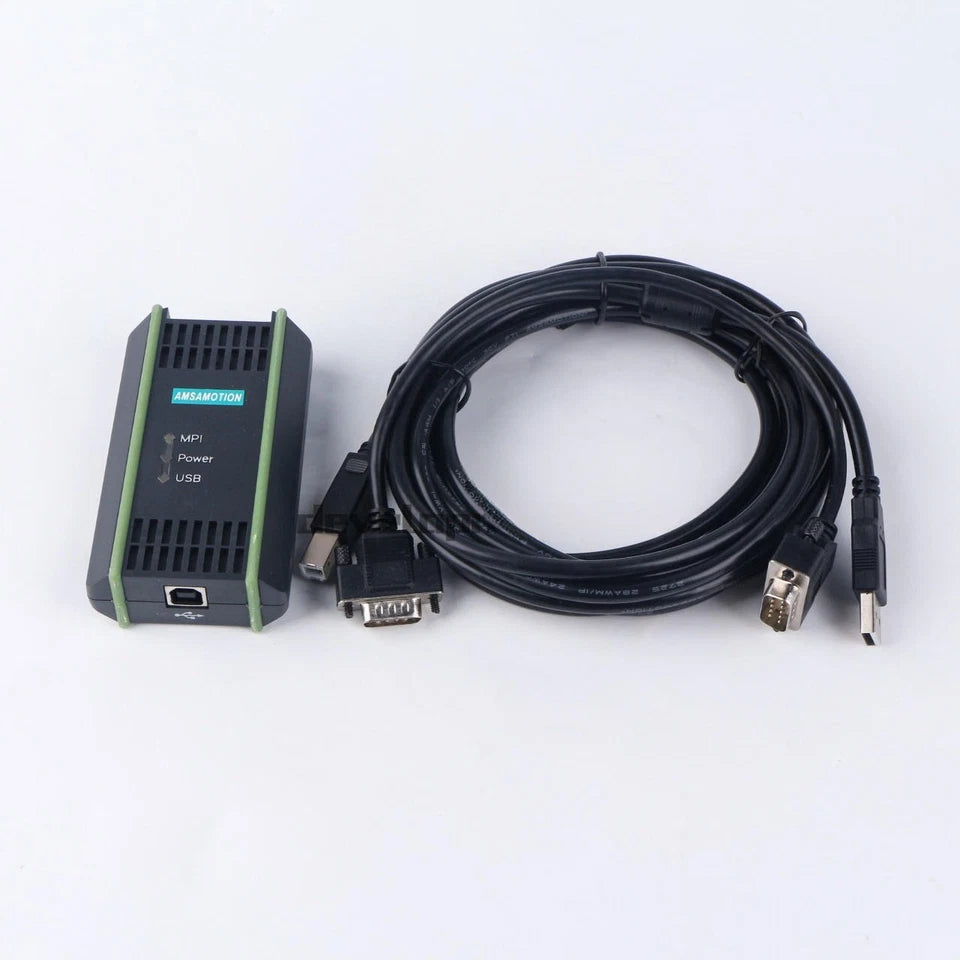

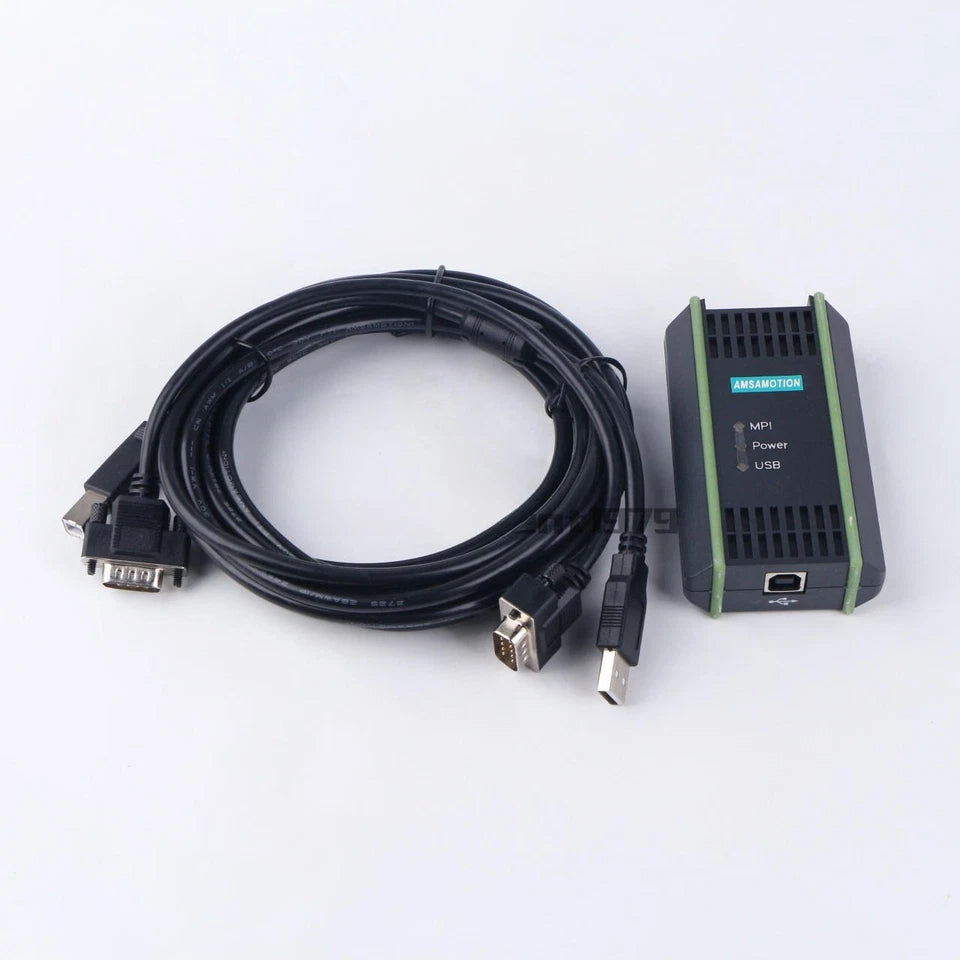

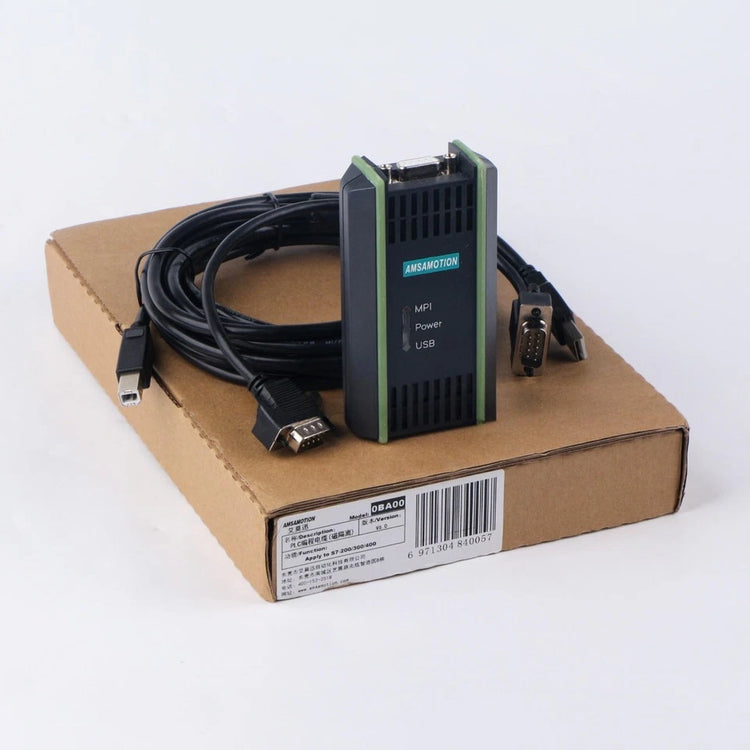

The Siemens 6GK1571-0BA00-0AA0 is a SIMATIC S7 USB PC Adapter designed for programming and communication with S7-200, S7-300, S7-400, and C7 controllers. It converts USB 2.0 signals to RS-485 for PROFIBUS DP and MPI networks, enabling direct PG/PC or notebook connectivity. Supplied with a 5 m USB cable and 0.3 m MPI cable, this adapter supports Windows XP, Vista, and Windows 7 (32/64-bit).
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Computer |
| Part Number | 6GK1571-0BA00-0AA0 |
| Subcategory | Communication Cable/Adaptor |
| Series | 6GK Series |
| Suitable For Use With | PG/PC or notebook; SIMATIC S7-200/300/400/C7 |
| Main Function | USB-to-RS485 communication adapter |
| Functions | USB A2 PC adapter |
| Supply Voltage | 5 VDC (from USB) |
| Connection Type (Electrical) | 9-pin D-Sub female connector |

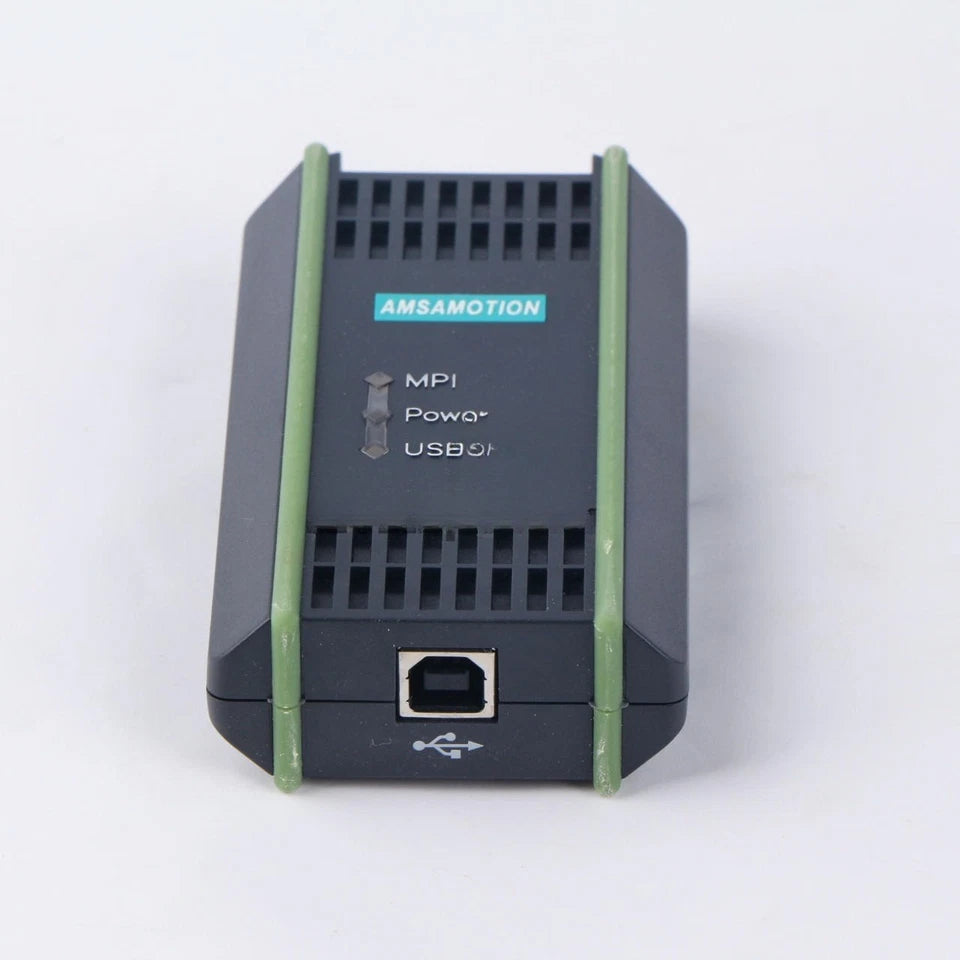

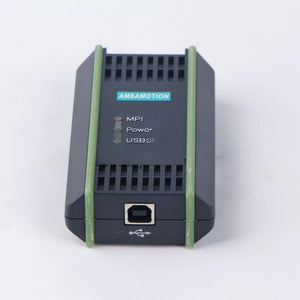

| USB Port | USB 2.0 Type B |
| Communication Protocols | PROFIBUS DP, RS-485, MPI |
| Communication Speed | 9.6 kbit/s – 12 Mbit/s |
| Degree of Protection | IP20 |
| Ambient Operating Temperature | 0…60 °C |
| MPI Cable Length | 300 mm |
| USB Cable Length | 5 m |
| Power Loss | 1 W |
| Current Draw (USB) | 0.2 A |
| Relative Humidity | Up to 95% non-condensing |
| Application | PLC programming, downloading, diagnostics |
Information About 6GK1571-0BA00-0AA0
The 6GK1571-0BA00-0AA0 belongs to the Siemens 6GK communication series and functions as a USB-to-RS485 interface for SIMATIC S7 controller families. Its design features a USB 2.0 Type-B connection and a 9-pin D-Sub female connector to ensure reliable communication with MPI and PROFIBUS networks at transmission speeds from 9.6 kbit/s to 12 Mbit/s. The adapter operates from a 5V DC supply provided via USB and is suitable for panel or field programming tasks in industrial automation environments. Typical applications include uploading/downloading PLC programs, diagnostic access, and online monitoring for Siemens automation systems.
Key Features
- USB-to-RS485 interface: Converts USB 2.0 signals to MPI/DP PROFIBUS communication.
- Compatible with S7 controllers: Supports S7-200, S7-300, S7-400, and C7 PLC families.
- Wide communication speed range: Operates from 9.6 kbit/s up to 12 Mbit/s.

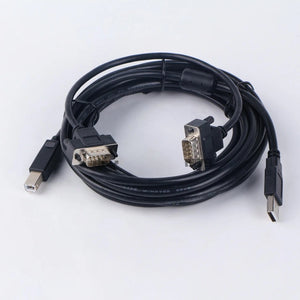

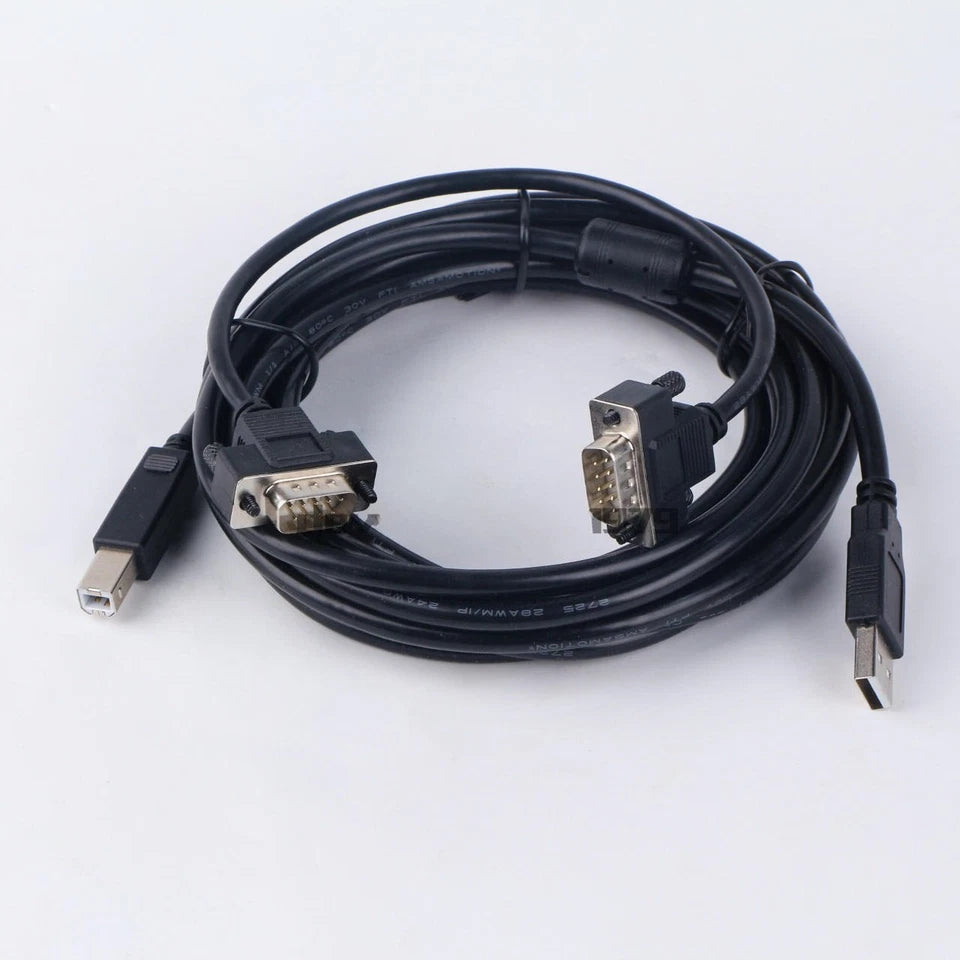

- Includes cables: Comes with a 5 m USB cable and 0.3 m MPI cable.
- 9-pin D-Sub female connector: Standard RS-485 industrial connection interface.
- Operates from USB power: Requires 5VDC supply with approx. 0.2 A current draw.
- Industrial operating range: Rated for 0…60 °C and 95% relative humidity.
- IP20 device rating: Suitable for use inside control cabinets or protected environments.
The 6GK1571-0BA00-0AA0 delivers the reliability and precision required for PLC programming, diagnostics, and industrial communication with SIMATIC S7 systems.
