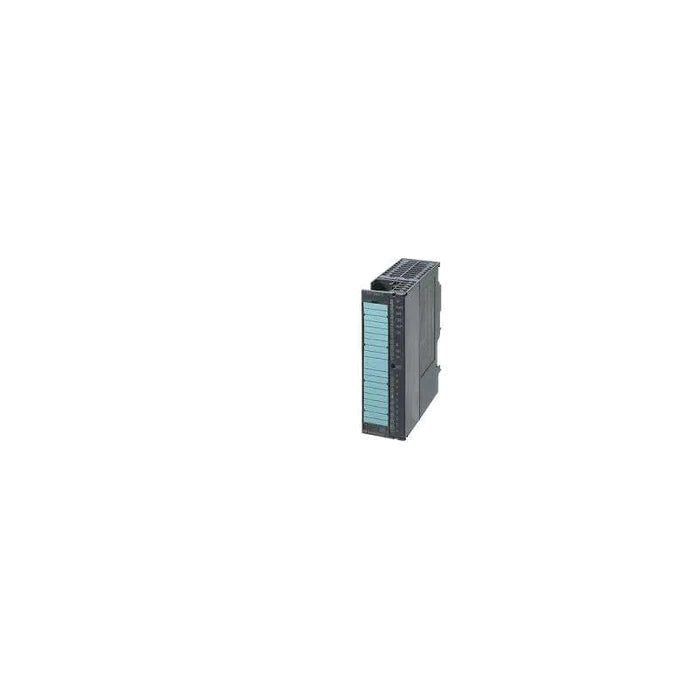

Part #: 6GK7343-2AH10-0XA0 Manufactured by: Siemens
Regular price
$849.00
Sale price
$849.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Siemens 6GK7343-2AH10-0XA0 simatic net, cp 343-2 p communications processor for connection of simatic s7-300 & et200m to a...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6GK7343-2AH10-0XA0
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 6GK7343-2AH10-0XA0

Description / Specifications

Description

The Siemens 6GK7343-2AH10-0XA0 is a SIMATIC S7-300 CP 343-2 communication processor designed to enable PROFIBUS DP connectivity for S7-300 automation systems. It provides high-speed data exchange between S7-300 CPUs and distributed field devices.





Technical Specifications

Brand SIEMENS
Product designation AS-Interface Master
Protection class IP IP20
Design of the electrical connection / of the AS-Interface S7-300, front connector, 20-pin
Type of voltage supply via backplane bus
Operating condition / separate power supply 24 V No
Resistive loss 4 W
Insulation voltage / rated value 500 V
Product function / adapted for AS-i Power24V Yes





Information About 6GK7343-2AH10-0XA0

The 6GK7343-2AH10-0XA0 is part of the Siemens SIMATIC CP 343 communication processor family, developed to expand communication capabilities of S7-300 controllers. It provides a dedicated PROFIBUS DP interface operating at speeds up to 12 Mbps, supporting master and slave functionality. This allows the CPU to offload bus communication tasks, improving system performance and response time. The module supports cyclic and acyclic data exchange with PROFIBUS devices, and it integrates seamlessly with STEP 7 / TIA Portal for configuration and diagnostics. LED indicators provide quick status and fault feedback. Installed in an S7-300 rack, it connects directly to the backplane bus for fast communication with the CPU.

Key Features:

  • Design: PROFIBUS DP communication processor for SIMATIC S7-300 systems.
  • Interface: One PROFIBUS DP port, up to 12 Mbps.
  • Functionality: Supports master and slave operation modes.
  • Performance: Offloads bus communication tasks from the CPU to improve throughput.
  • Integration: Configured and diagnosed using STEP 7 / TIA Portal.
  • Diagnostics: LED indicators provide bus and module status information.
  • Installation: Rack-mounted module using the S7-300 backplane bus.
  • Application Range: Ideal for distributed I/O, drives, and process automation systems.

The 6GK7343-2AH10-0XA0 delivers the reliable communication performance and flexibility required for integrating S7-300 systems into PROFIBUS DP industrial networks.
