6KE$243001X1A1 | General Electric AF-300E$ Drive - 1 HP

Description

The General Electric Fuji Electric 6KE$243001X1A1 is a 1 horsepower drive from the AF-300E$ series. Operating on 3-phase power, it accepts an input voltage of 460 Volts at a frequency of 50/60Hz, delivering an output voltage range of 380-460 Volts with a frequency span of 0.2-400Hz. Utilizing Pulse Width Modulation (PWM) Scalar power control, it enhances performance.

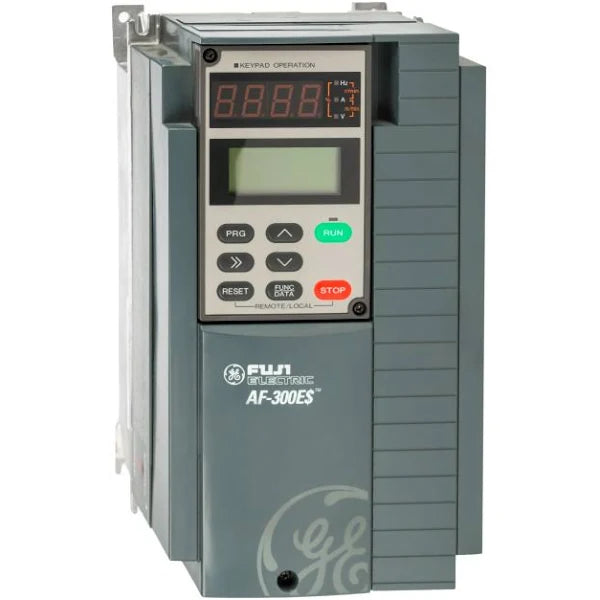

Enclosed in a NEMA 1 housing, suitable for indoor open or panel mounting, the dimensions of the 6KE$243001X1A1 are 10.24in (H) x 5.91in (W) x 5.71in (D), weighing 8.4 pounds. The unit is equipped with a factory-installed keypad on its front plate, featuring 8 dual function keys, a digital monitor, and an LCD graphic display. Mounted with two screws, the keypad facilitates remote operation and display, with easy removal facilitated by loosening the screws.

The keypad provides access to various functions including PROGRAM, FUNCTION, SHIFT, RUN, STOP, and RESET, along with UP/DOWN keys for navigation. Additionally, the LCD brightness is adjustable to accommodate different lighting conditions.

Technical Specifications

Information About 6KE$243001X1A1

The 6KE$243001X1A1 by General Electric is an AF-300E$ Drive designed for robust performance and reliability in demanding industrial applications. This drive, rated at 1 HP, features a NEMA 1 standard enclosure, suitable for indoor mounting in environments that are less than 1000 meters (3300 feet) in elevation. It is critical to ensure that the installation location is free from corrosive gases, oil mist, dust, and direct sunlight exposure to maintain optimal operation and longevity.

Installation and Environmental Specifications
The AF-300E$ Drive is designed exclusively for indoor installation, emphasizing the importance of a controlled environment to prevent potential damage or operational issues. The drive operates effectively in ambient temperatures ranging from -10°C to +50°C (+14°F to +122°F). For environments where temperatures exceed +40°C (+104°F), it is recommended to remove the ventilation covers for units up to 30 HP to ensure proper cooling; this precaution is not necessary for units rated 40 HP and above. Storage temperature for the drive spans from -20°C to +65°C (-4°F to +149°F), ensuring flexibility in various storage conditions.

Humidity and Vibration Tolerance
The drive can operate in environments with relative humidity levels between 20% to 90%, provided that the conditions are non-condensing. This broad range of humidity tolerance makes it suitable for diverse indoor settings. Additionally, the drive is built to withstand vibrations up to 0.6G, ensuring stable performance even in mildly dynamic environments.

Cooling and Output Specifications
For units rated between 1/2 HP and 1 HP, cooling is managed through convection, eliminating the need for external cooling mechanisms and simplifying maintenance. The drive supports a rated output voltage for 3-phase, 3-wire type systems, offering two voltage ranges: 80-240 VAC or 320-480 VAC. It is crucial to note that the output voltage cannot exceed the power supply voltage.

Frequency and Overload Ratings
The AF-300E$ Drive offers a comprehensive frequency range from 0 to 400 Hertz, with specific start and base frequencies set at 0.2 to 60 Hz and 0.2 to 120 Hz, respectively. For applications requiring frequencies above 120 Hz, it is recommended to contact General Electric for application approval to ensure safe and efficient operation. The drive's overload current rating is designed for units up to 30 HP, providing robust protection and ensuring reliable performance under varying load conditions.

In summary, the General Electric 6KE$243001X1A1 AF-300E$ Drive is a highly capable and versatile solution for indoor industrial applications. Its robust design, coupled with a wide range of operational tolerances and environmental protections, makes it a reliable choice for various demanding settings. Whether you require efficient performance in controlled environments or flexibility in storage conditions, this drive delivers dependable results while maintaining ease of installation and operation.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
