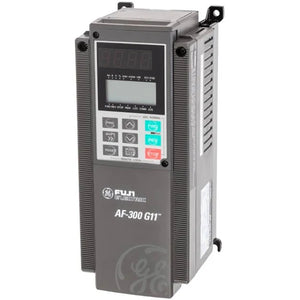

6KG1123F50X1B1 | General Electric 0.5HP Drive
- Regular price
- $965.00
- Sale price
- $965.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 6KG1123F50X1B1
Description
The 6KG1123F50X1B1 is a part of the AF-300 G11 series by Fuji Electric.
Technical Specifications
| Brand | General Electric |
| Category | Drives |
| Part Number | 6KG1123F50X1B1 |
| Subcategory | Drive |
| Product Type | Drive |
| Series | AF-300 G11 |
Information About 6KG1123F50X1B1
The 6KG1123F50X1B1 is a 230 VAC, 3 phase 50/60Hz, NEMA 1, 0.5 HP drive that weighs 4.8 pounds. The rated output current (A) is three. The overload (150% for one minute) is 4.5. The rated output (KVA) is 1.1. The efficiency at 2KHz (%) is 93.5. The efficiency at 15KHz (%) is 91.7. The watts lost at 2KHz (W) is 35. The watts loss at 15KHz (W) is 45. The internal DB (W) is 10. The main circuit terminal configuration for this drive at L1/R, L2/S, L3/T, DB, P1, P(+), N(-), U, V, W. The input fuse L1/R, L2/S, L3/T (nominal) is five. The L1/R, L2/S, L3/T (maximum) (*1) is six. The input circuit breaker (*1) is fifteen. The tightening torque in pounds per inch (Nm) is 10.6 (1.2). The cable size AWG for the U, V, W and the L1/R, L2/S, L3/T is sixteen. The L1/R, L2/S, L3/T is the power terminals and the U, V, W, are the terminals that control the motor. The drive has a keypad that allows the worker to toggle between multiple screens such as normal operation, alarm modes, alarm history, and factors, programming, setting digital frequency, setting function data, checking function data, monitoring operating status, I/O checks, maintenance information, load rate measurement, and data copy.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
Description
The 6KG1123F50X1B1 is a part of the AF-300 G11 series by Fuji Electric.
Technical Specifications
| Brand | General Electric |
| Category | Drives |
| Part Number | 6KG1123F50X1B1 |
| Subcategory | Drive |
| Product Type | Drive |
| Series | AF-300 G11 |
Information About 6KG1123F50X1B1
The 6KG1123F50X1B1 is a 230 VAC, 3 phase 50/60Hz, NEMA 1, 0.5 HP drive that weighs 4.8 pounds. The rated output current (A) is three. The overload (150% for one minute) is 4.5. The rated output (KVA) is 1.1. The efficiency at 2KHz (%) is 93.5. The efficiency at 15KHz (%) is 91.7. The watts lost at 2KHz (W) is 35. The watts loss at 15KHz (W) is 45. The internal DB (W) is 10. The main circuit terminal configuration for this drive at L1/R, L2/S, L3/T, DB, P1, P(+), N(-), U, V, W. The input fuse L1/R, L2/S, L3/T (nominal) is five. The L1/R, L2/S, L3/T (maximum) (*1) is six. The input circuit breaker (*1) is fifteen. The tightening torque in pounds per inch (Nm) is 10.6 (1.2). The cable size AWG for the U, V, W and the L1/R, L2/S, L3/T is sixteen. The L1/R, L2/S, L3/T is the power terminals and the U, V, W, are the terminals that control the motor. The drive has a keypad that allows the worker to toggle between multiple screens such as normal operation, alarm modes, alarm history, and factors, programming, setting digital frequency, setting function data, checking function data, monitoring operating status, I/O checks, maintenance information, load rate measurement, and data copy.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
