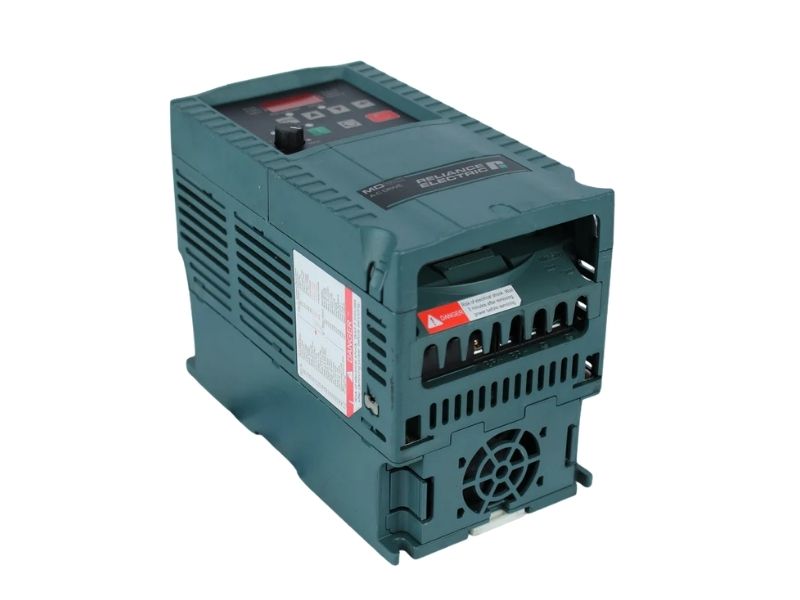

6MDVN-4P5101 | Ge Fanuc 1HP 0.75kW 1 Phase Input 3 Phase Output 230v Drive
- Regular price
- $875.00
- Sale price
- $875.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6MDVN-4P5101
DescriptionΒ
The 6MDVN-4P5101 is a 1 HP, 0.75 kW drive from Reliance Electric, part of the MD60 drive series. This drive operates with a 115V, 50/60 Hz, single-phase input and delivers a three-phase output at 230V. It features an output current of 4.5 A and is housed in a frame size B.Β
Β
Β
Technical SpecificationsΒ
|
ManufacturerΒ |
Reliance ElectricΒ |
|
SeriesΒ |
MD60Β |
|
Part NumberΒ |
6MDVN-4P5101Β |
|
HPΒ |
1 HPΒ |
|
Input VoltageΒ |
230 VACΒ |
|
EnclosureΒ |
NEMA 1 or ChassisΒ |
|
HzΒ |
50/60 HzΒ |
|
kWΒ |
0.75 kWΒ |
|
Filter/No FilterΒ |
Not FilteredΒ |
|
LabelingΒ |
UL Listed, IEC CertifiedΒ |
Β
Β
Information About 6MDVN-4P5101
The 6MDVN-4P5101 is a drive produced by Reliance Electric, classified under the MD60 drive series. This model is designed for a 115V, 50/60 Hz, single-phase input and provides a three-phase output. The drive has a power rating of 0.75 kW and a horsepower rating of 1.0 HP. It delivers an output current of 4.5 A and belongs to frame size B.Β
The drive's output frequency is governed by display parameter d001, which is read-only by default. The range for this parameter extends from 0.0 to the maximum frequency. The commanded frequency is represented by display parameter d002, also read-only by default, with a range similar to d001.Β
Display parameter d003 indicates the output current. This parameter is read-only by default and ranges from 0.00 to twice the drive-rated amps. The output voltage is monitored through display parameter d004, which is read-only by default and ranges from 0 to the drive-rated volts.Β
Β
Manufacturer information
Ge Fanuc, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, Ge Fanuc played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
