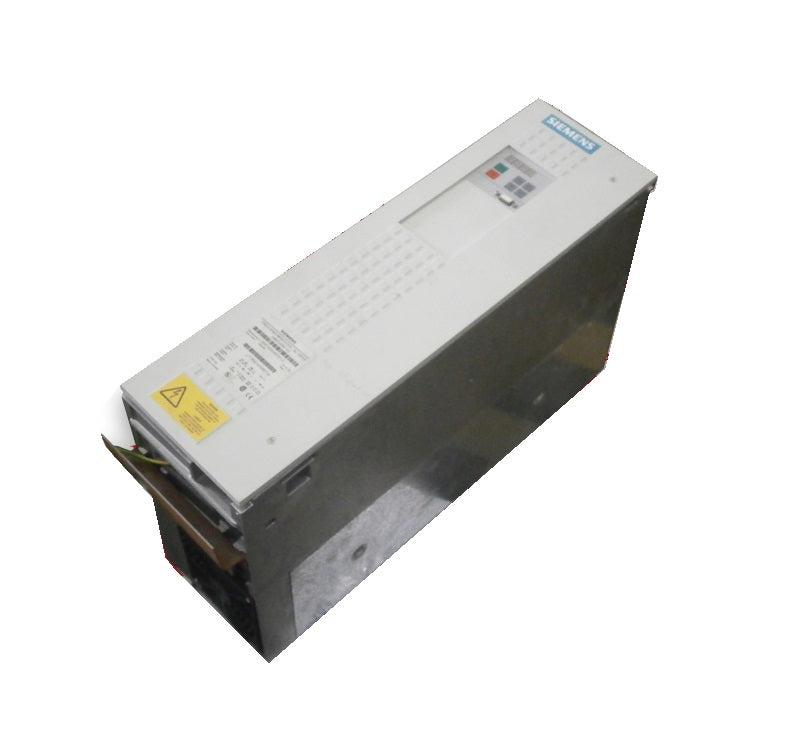

6SE7023-4EC61-Z | Siemens SIMOVERT MASTERDRIVES Vector Control Drive 15kW 480V AC
- Regular price
- $3,047.00
- Sale price
- $3,047.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6SE7023-4EC61-Z
Description
The Siemens® 6SE7023-4EC61-Z is a SIMOVERT MASTERDRIVES Vector Control (VC) Compact Unit designed for precise motor regulation in industrial automation systems. Operating at 380–480 V AC, 50/60 Hz, this drive delivers 34 A nominal current and supports up to 15 kW (20 HP) motor power. Featuring advanced vector control, integrated braking, and IP20 protection, it provides exceptional accuracy, dynamic response, and reliability for demanding motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Drives |
| Part Number | 6SE7023-4EC61-Z |
| Subcategory | AC Drive / Frequency Inverter |
| Series | SIMOVERT MASTERDRIVES VC Compact Plus |
| Input Voltage | 3AC 380–480 V, 50/60 Hz |
| Output Voltage | 3AC 0–480 V |
| Rated Output Current | 34 A |
| Rated Output Power | 15 kW (20 HP) |
| Control Type | Vector Control (VC) |
| Network Compatibility | Non-grounded (TI network) operation supported |
| Communication Interfaces | PROFIBUS DP, PROFINET, Industrial Ethernet (optional) |
| Safety Function | Safe Torque Off (STO) via terminal |
| Integrated Braking | Braking chopper included |
| Cooling Method | Forced air cooling |
| Protection Rating | IP20 |
| Operating Temperature Range | 0–50°C (32–122°F) |
| Mounting Style | Compact panel / cabinet installation |
| Typical Applications | Pumps, conveyors, cranes, machine tools, fans, extruders |
| Documentation | Supplied on CD |
| Lifecycle Status | Discontinued (Spare Part) |
| Manufacturer | Siemens AG |
| Weight | 47.36 lbs (21.5 kg) |
Information About 6SE7023-4EC61-Z
The 6SE7023-4EC61-Z is part of the Siemens SIMOVERT MASTERDRIVES VC series—renowned for its high-performance vector control technology and flexibility across a wide range of industrial processes. It features digital vector control for asynchronous and synchronous motors, enabling stable speed and torque regulation even under variable load conditions. Designed for use with non-grounded (TI network) supply systems, this unit offers integrated Safe Torque Off (STO) functionality for enhanced operational safety. The compact IP20-rated enclosure and forced-air cooling system make it suitable for cabinet installation in constrained industrial spaces. Though discontinued, it remains a valuable spare for legacy systems, with SINAMICS S120 drives serving as the modern replacement platform.
Key Features:
- Advanced Vector Control: Provides precise torque and speed regulation for asynchronous and synchronous motors.
- High Power Rating: Supports up to 15 kW (20 HP) at 380–480 V AC for robust motor control.
- Integrated Safety Function: Includes Safe Torque Off (STO) via terminal for compliance with industrial safety standards.
- Flexible Network Integration: Compatible with PROFIBUS DP, PROFINET, and Industrial Ethernet via optional modules.
- Efficient Braking System: Built-in braking chopper ensures controlled deceleration under load.
- IP20 Protection Class: Suitable for protected electrical cabinet installations.
- Compact & Robust Design: Booksize form factor optimizes cabinet space and installation efficiency.
- Operation with Non-Grounded Supply: L20 variant supports TI network configurations.
The 6SE7023-4EC61-Z delivers the control precision, safety, and durability required for high-performance vector-controlled drive systems in industrial automation environments.
