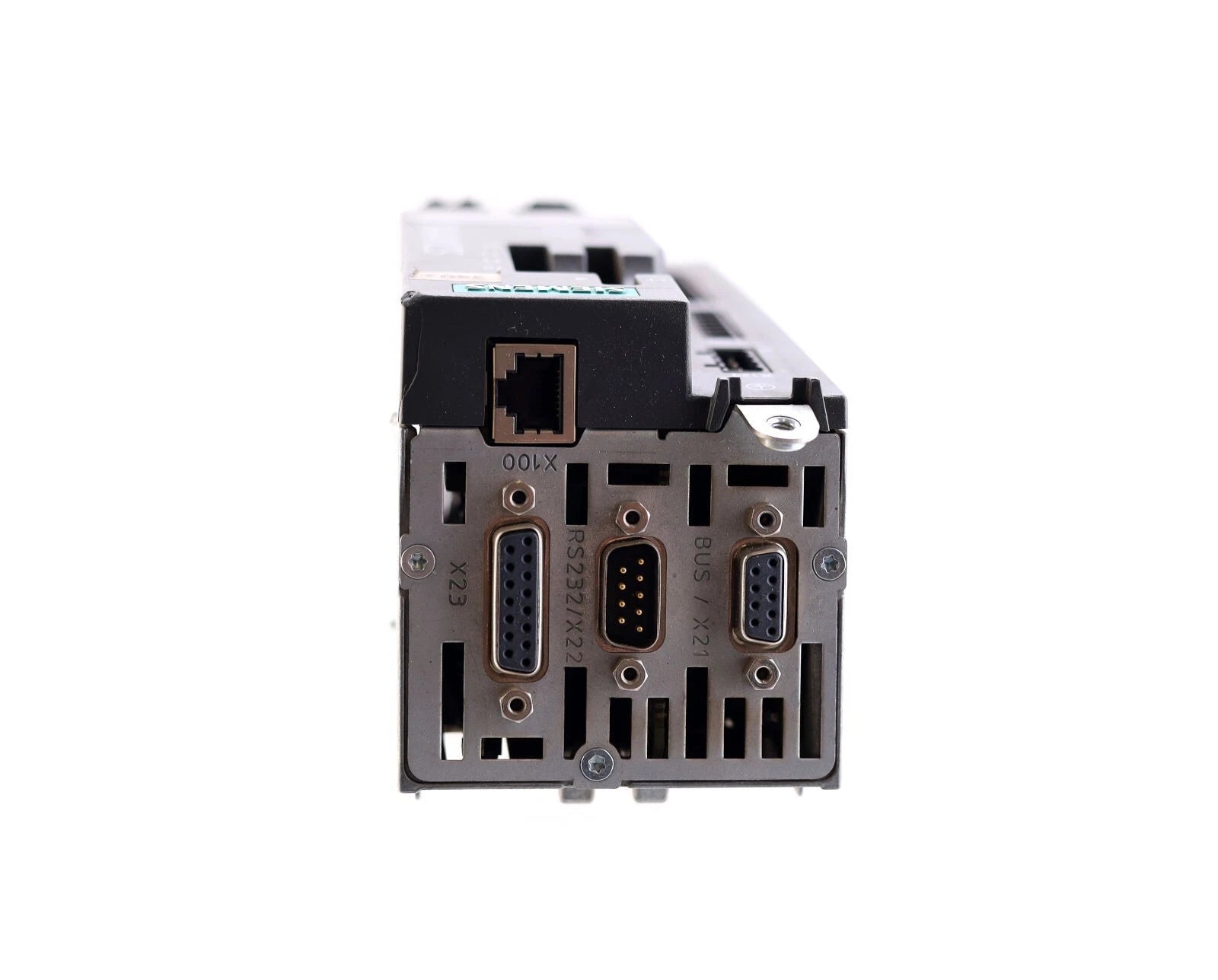

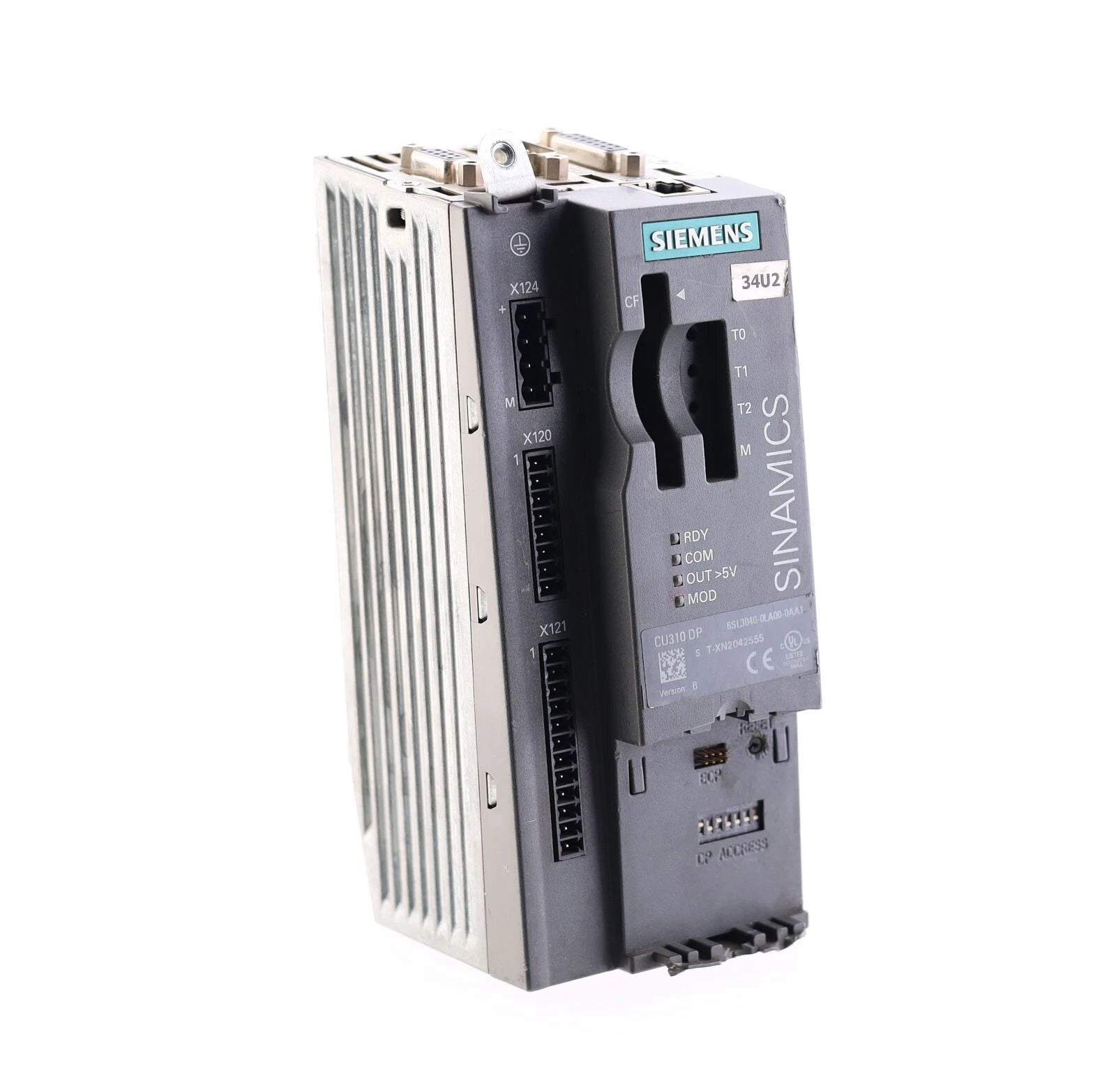

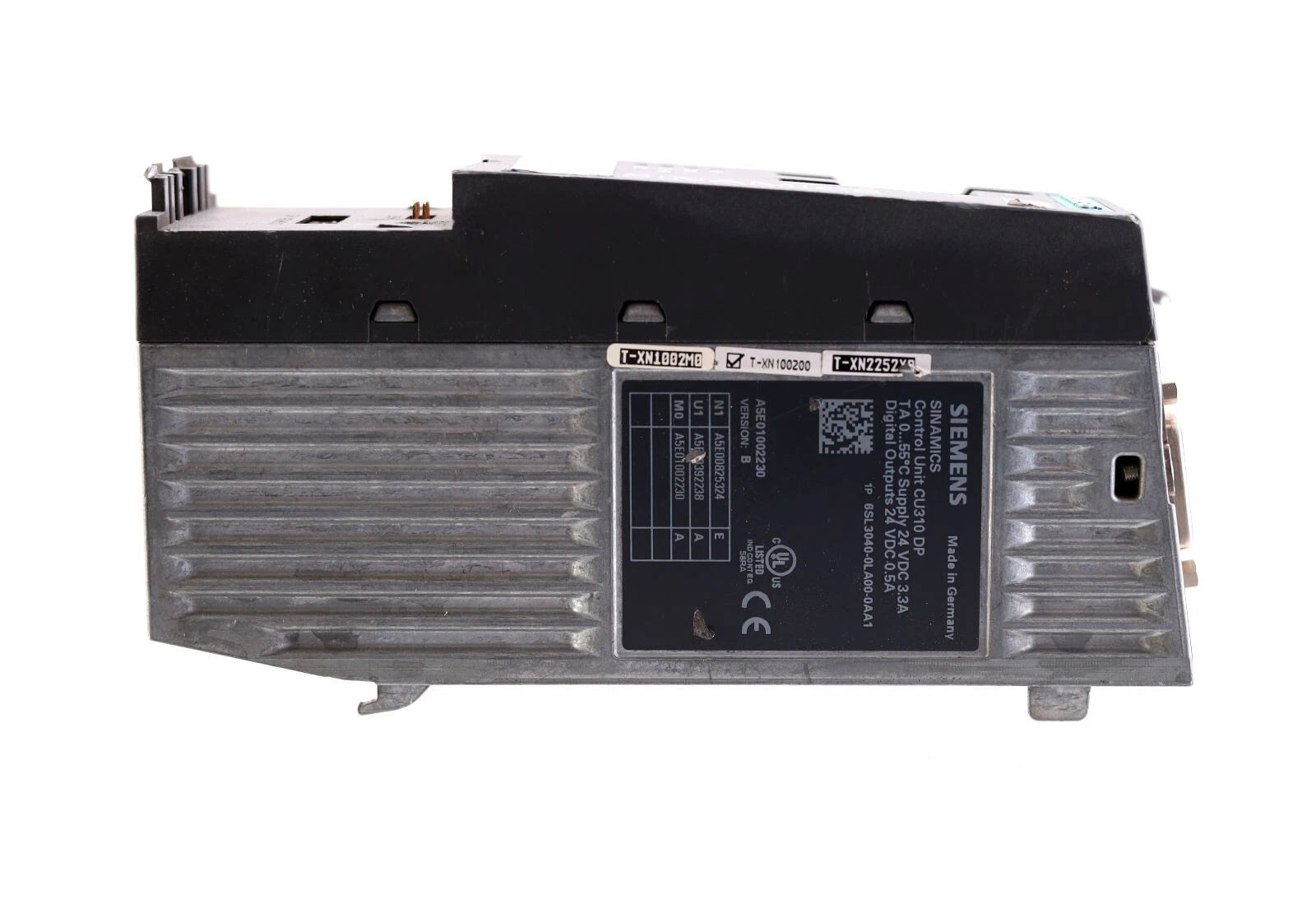

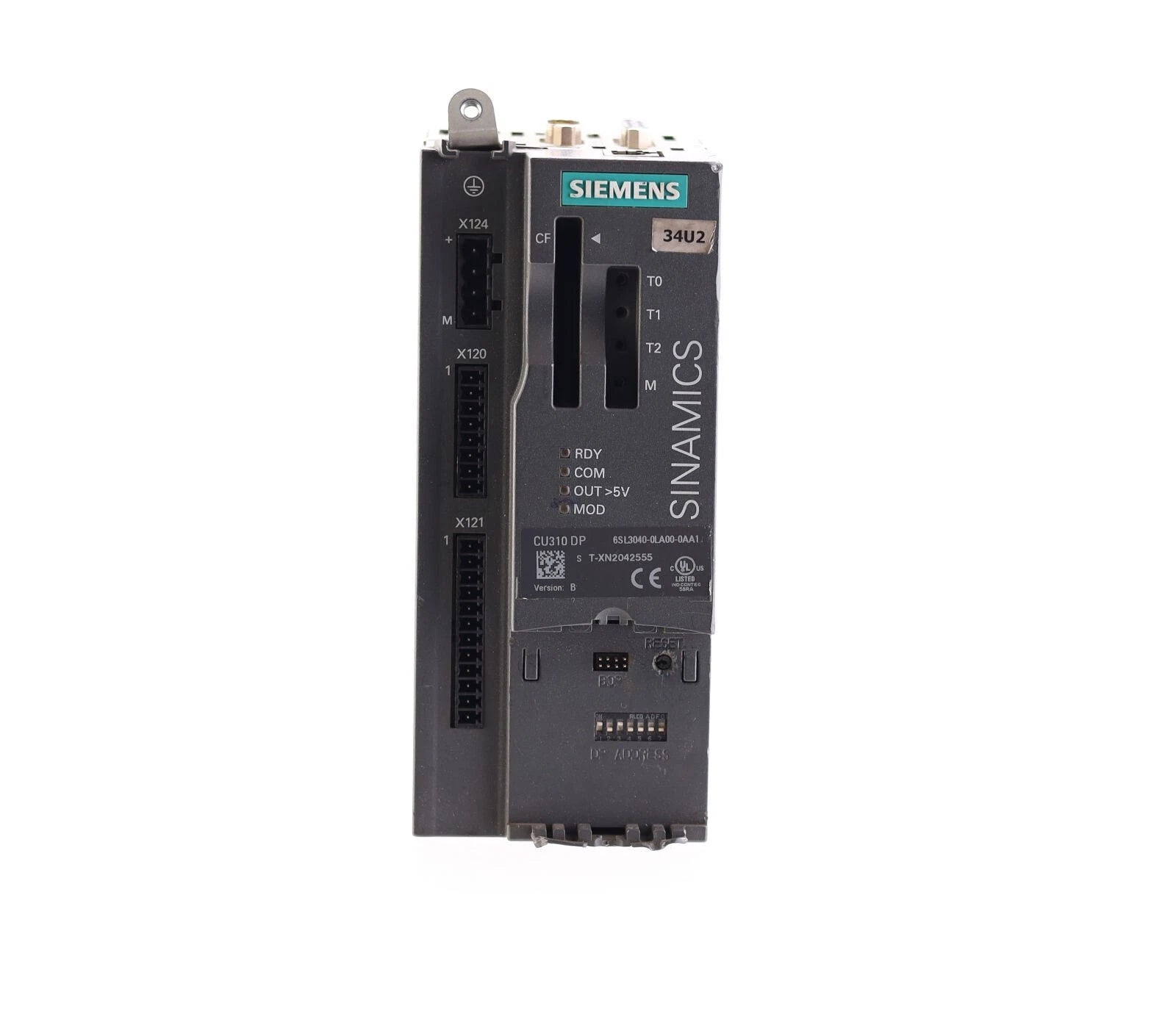

6SL3040-0LA00-0AA1 | Siemens SINAMICS S120 CU310 DP Control Unit 24VDC
- Regular price
- $1,772.00
- Sale price
- $1,772.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6SL3040-0LA00-0AA1
Description
The Siemens 6SL3040-0LA00-0AA1 is a CU310 DP Control Unit from the SINAMICS S120 series, designed for precise drive and motion control. Operating at 24 VDC, it supports TTL and HTL encoders, provides multiple digital inputs/outputs, and ensures reliable integration with PM340 Power Modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Control Units |
| Part Number | 6SL3040-0LA00-0AA1 |
| Subcategory | CU310 DP |
| Series | SINAMICS S120 |
| Product Type | Control Unit |
| Operating Voltage | 24 VDC |
| Power Consumption | 0.35 A (CU310 DP), 0.5 A (PM340 Power Module) |
| Fuse Protection | Up to 20 A |
| Digital Inputs | 4 floating inputs, 4 bidirectional non-floating inputs/outputs |
| Input Voltage Range | -3 V to +30 V |
| Input Response Time | 5 µs (low to high), 50 µs (high to low) |
| Digital Output Voltage | 24 VDC |
| Max Current per Output | 500 mA |
| Supported Encoders | TTL and HTL incremental encoders |
| Encoder Cable Length | 100 m (unipolar), 300 m (bipolar HTL) |
| Wire Cross-Section | 2.5 mm² (power supply), 0.5 mm² (I/O connections) |
| Heat Dissipation | <20 W |
| Operating Temp Range | 0 to 55 °C |
| Dimensions (W x H x D) | 73 mm x 183.2 mm x 89.6 mm |
| Weight | 0.95 kg (approx. 2.1 lbs) |
Information About 6SL3040-0LA00-0AA1
The 6SL3040-0LA00-0AA1 is a Siemens CU310 DP control unit developed for the SINAMICS S120 drive family, offering precise drive management and motion control functions. It operates on a 24 VDC power supply and integrates seamlessly with PM340 Power Modules for scalable drive systems. Equipped with multiple digital inputs and outputs, it offers flexible configuration and high-speed response times, supporting complex automation tasks. Encoder compatibility with both TTL and HTL incremental encoders enhances its adaptability for position and speed feedback. Its compact design with effective heat dissipation ensures reliable performance in industrial environments.
Key Features:
- Compact Control Unit: CU310 DP design optimized for SINAMICS S120 drive applications.
- Stable Power Supply: Operates on 24 VDC with low consumption of 0.35 A for the CU and 0.5 A for the PM340.
- Fuse Protection: Supports up to 20 A, ensuring safety and overload protection.
- Flexible Digital I/O: Includes 4 floating inputs and 4 bidirectional non-floating inputs/outputs for versatile system integration.
- Fast Response Times: High-speed input switching of 5 µs (low to high) and 50 µs (high to low) for precise motion control.
- Encoder Compatibility: Supports TTL and HTL incremental encoders for reliable feedback.
- Extended Cable Length: Up to 100 m for unipolar signals and 300 m for HTL bipolar signals, providing installation flexibility.
- Efficient Heat Management: Keeps heat dissipation below 20 W, reducing energy loss and ensuring reliability.
- Compact Build: Measures only 73 x 183.2 x 89.6 mm for easy cabinet installation.
- Industrial Durability: Designed to operate up to 55 °C, ensuring long-term reliability in demanding environments.
The 6SL3040-0LA00-0AA1 delivers the reliability and precision required for advanced drive control, offering flexible I/O, encoder support, and seamless integration with SINAMICS systems.
