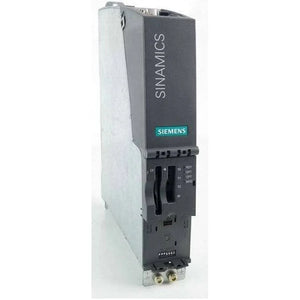

6SL3040-0MA00-0AA1 | Siemens SINAMICS S120 CU320 Control Unit
- Regular price
- $694.00
- Sale price
- $694.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6SL3040-0MA00-0AA1
Description
The Siemens 6SL3040-0MA00-0AA1 is a SINAMICS S120 CU320 control unit designed for advanced drive coordination and motion control applications. Featuring multiple communication interfaces including DRIVE-CLiQ, PROFIBUS, RS232, and operator panel connectivity, it serves as the central control component for modular S120 drive systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Drives |
| Part Number | 6SL3040-0MA00-0AA1 |
| Subcategory | Drive |
| Product Type | SINAMICS Control Unit CU320 Without CompactFlash Card |
| Control Unit | CU320 |

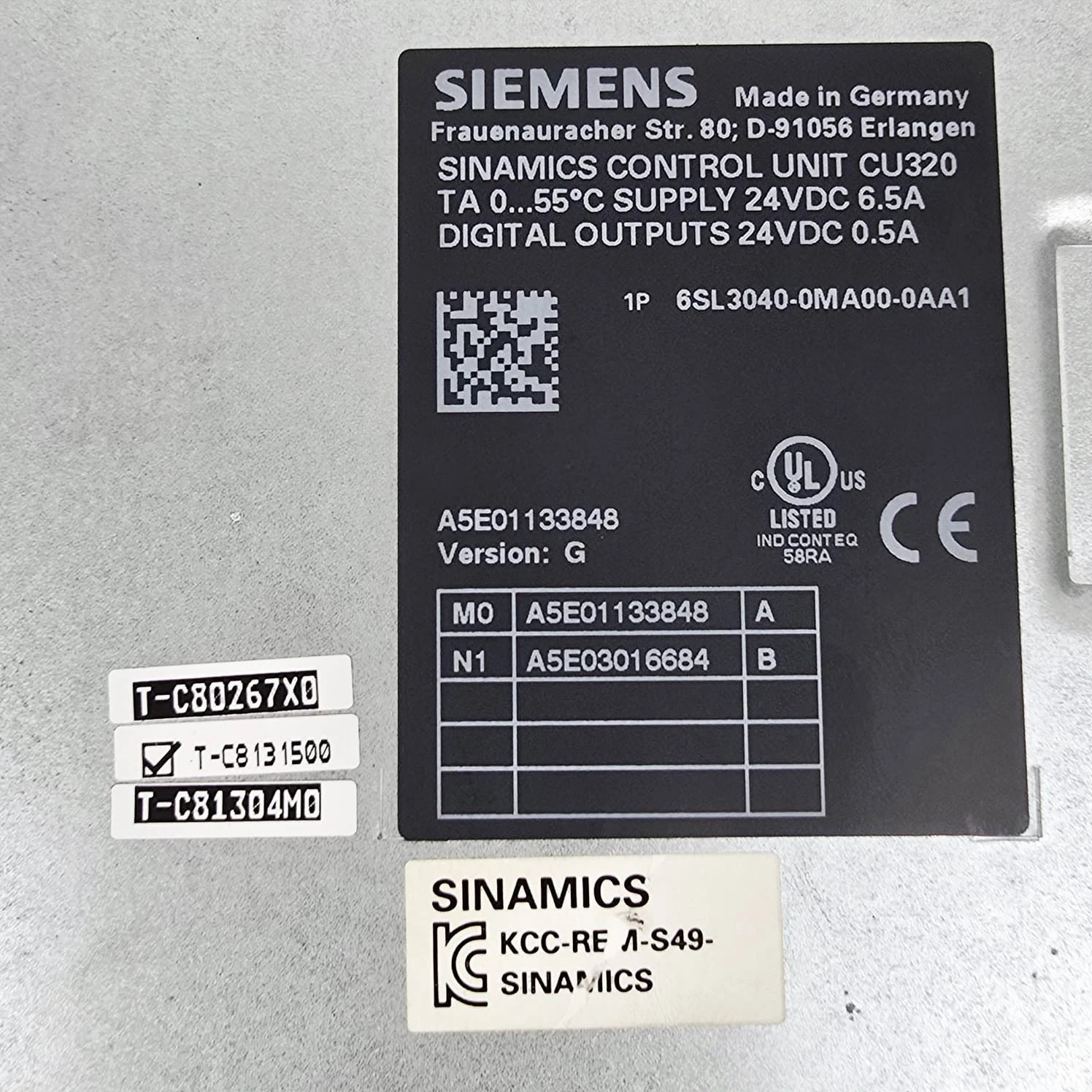

| Power Supply | 24 VDC, 6.5 A |
| Output | 24 VDC, 0.5 A |
| Current Consumption | 0.8 A (without DRIVE-CLiQ/digital outputs) |
| Power Loss | 20 W |
| Ambient Temperature | 0…55 °C |
| CF Card | Not Included |

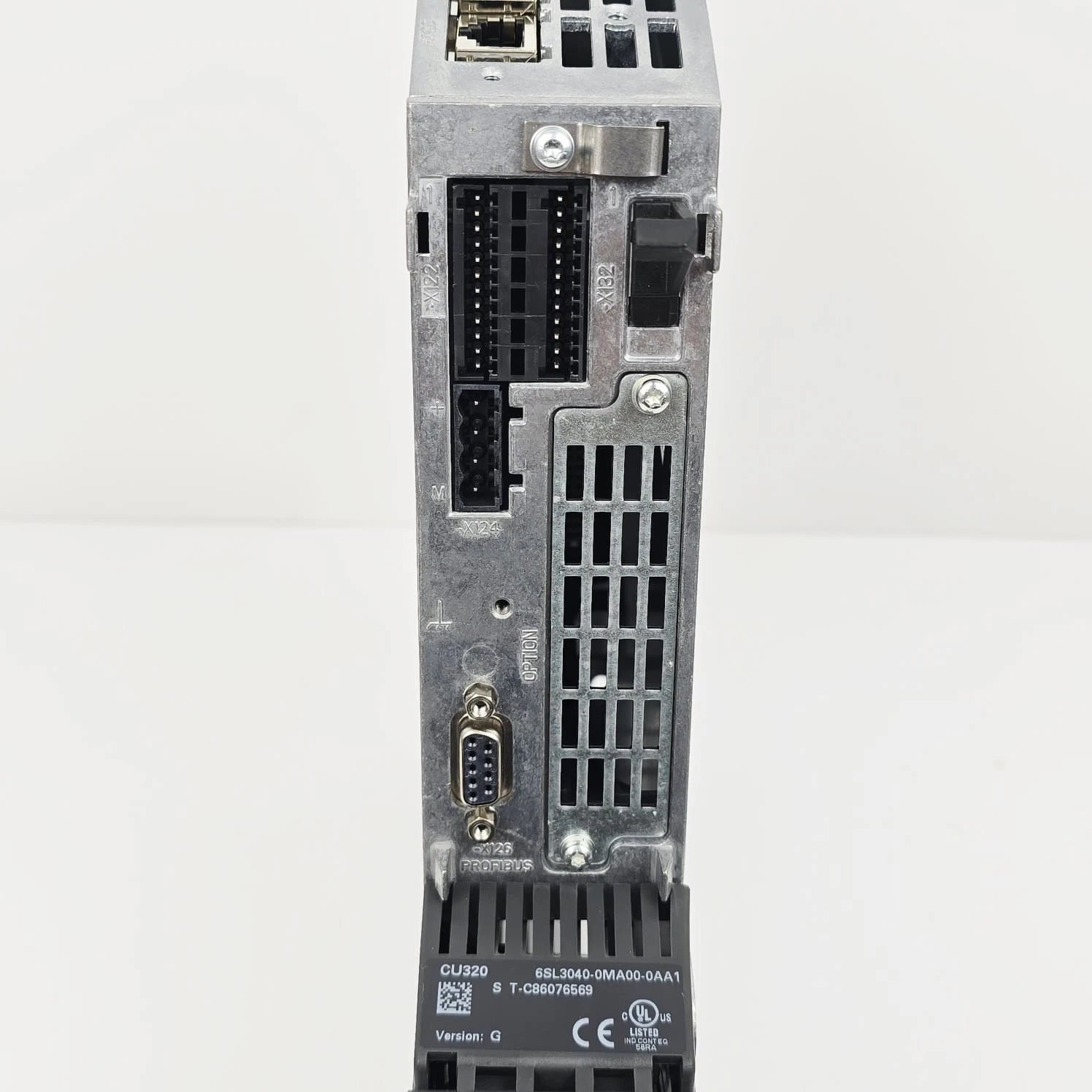

| Interfaces | 4× DRIVE-CLiQ, 1× PROFIBUS (PROFIdrive V4), 1× RS232, 1× BOP20 port, 1× option module slot, 3× test sockets |
| Compatibility | SINAMICS S120 Modular Drive System |
| Mounting | Panel / Drive System Integration |
| Application | Motion control, modular drive coordination |
Information About 6SL3040-0MA00-0AA1
The 6SL3040-0MA00-0AA1 is a Siemens SINAMICS S120 CU320 control unit designed to centralize and coordinate multi-axis motion systems within complex industrial automation environments. It provides communication via DRIVE-CLiQ for Motor Modules, Line Modules, Sensor Modules, and Terminal Modules, enabling synchronized and distributed drive configurations. The unit also supports PROFIBUS communication using the PROFIdrive profile, as well as RS232 and BOP20 operator interfaces for commissioning and direct diagnostics. With a rugged design suitable for 0 to 55 °C operation and modular expansion through optional terminal boards, the CU320 offers flexibility for integrating motion, positioning, and high-performance drive applications.
Key Features:
- DRIVE-CLiQ Integration: Includes four DRIVE-CLiQ ports for Motor Modules, Sensor Modules, Line Modules, and system extension.
- PROFIBUS Connectivity: Supports PROFIdrive V4 for seamless integration with Siemens automation networks.
- RS232 and Operator Panel Interface: Allows commissioning, diagnostics, and local access via BOP20.
- Expandable Modular Architecture: Features a slot for option modules such as TB30 terminal boards.
- Coordinated Multi-Axis Control: Designed as the central controller for SINAMICS S120 distributed drive systems.
- Industrial-Grade Power Handling: Operates from a 24 VDC supply with robust thermal management and low power loss.
- Compact System Integration: Modular design simplifies installation in space-limited drive cabinets.
- Certified Performance: cULus-approved for global industrial use in demanding motion control applications.
The 6SL3040-0MA00-0AA1 delivers the reliability and precision required for advanced multi-axis coordination and high-performance motion control within SINAMICS S120 drive systems.
