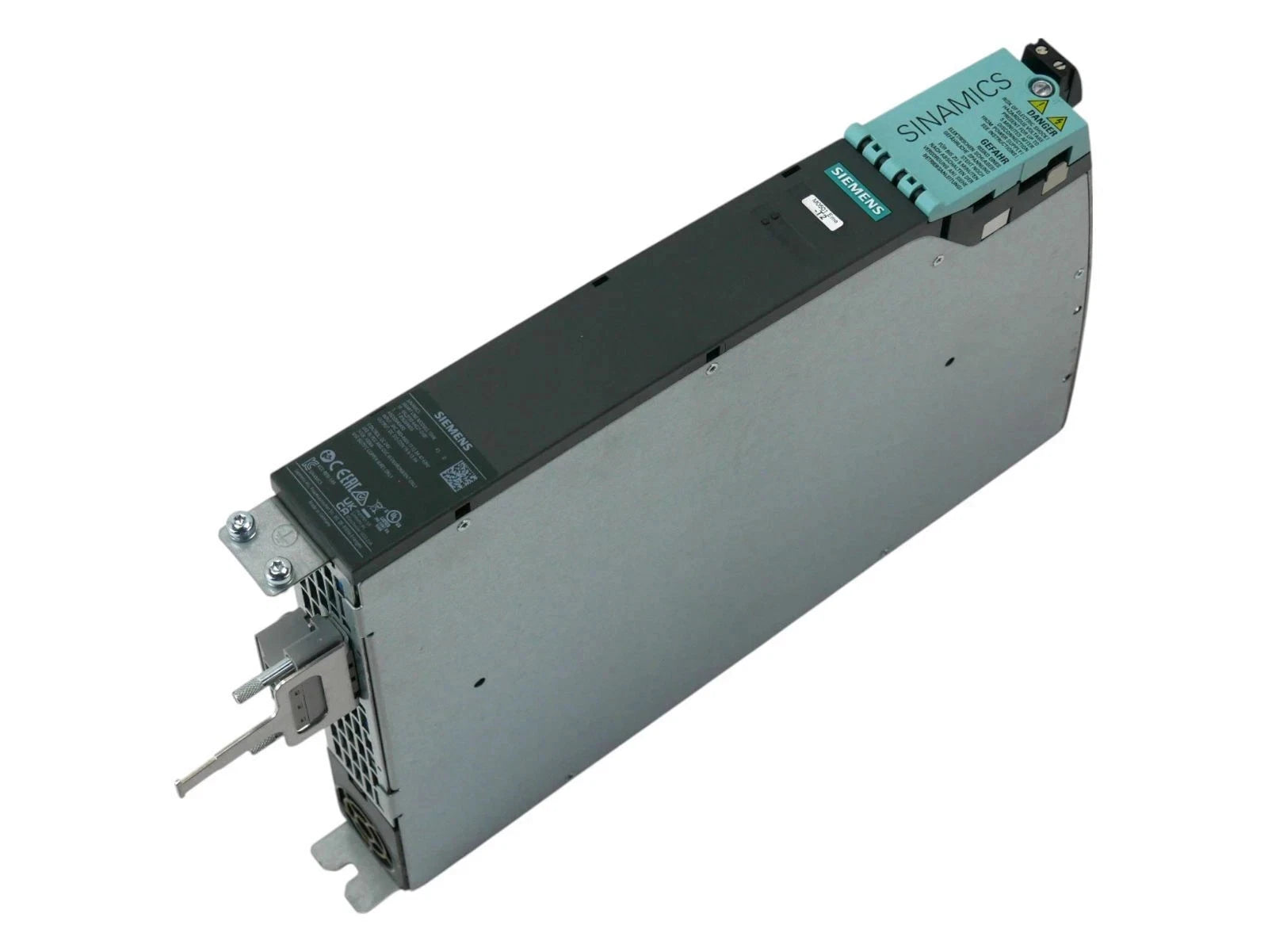

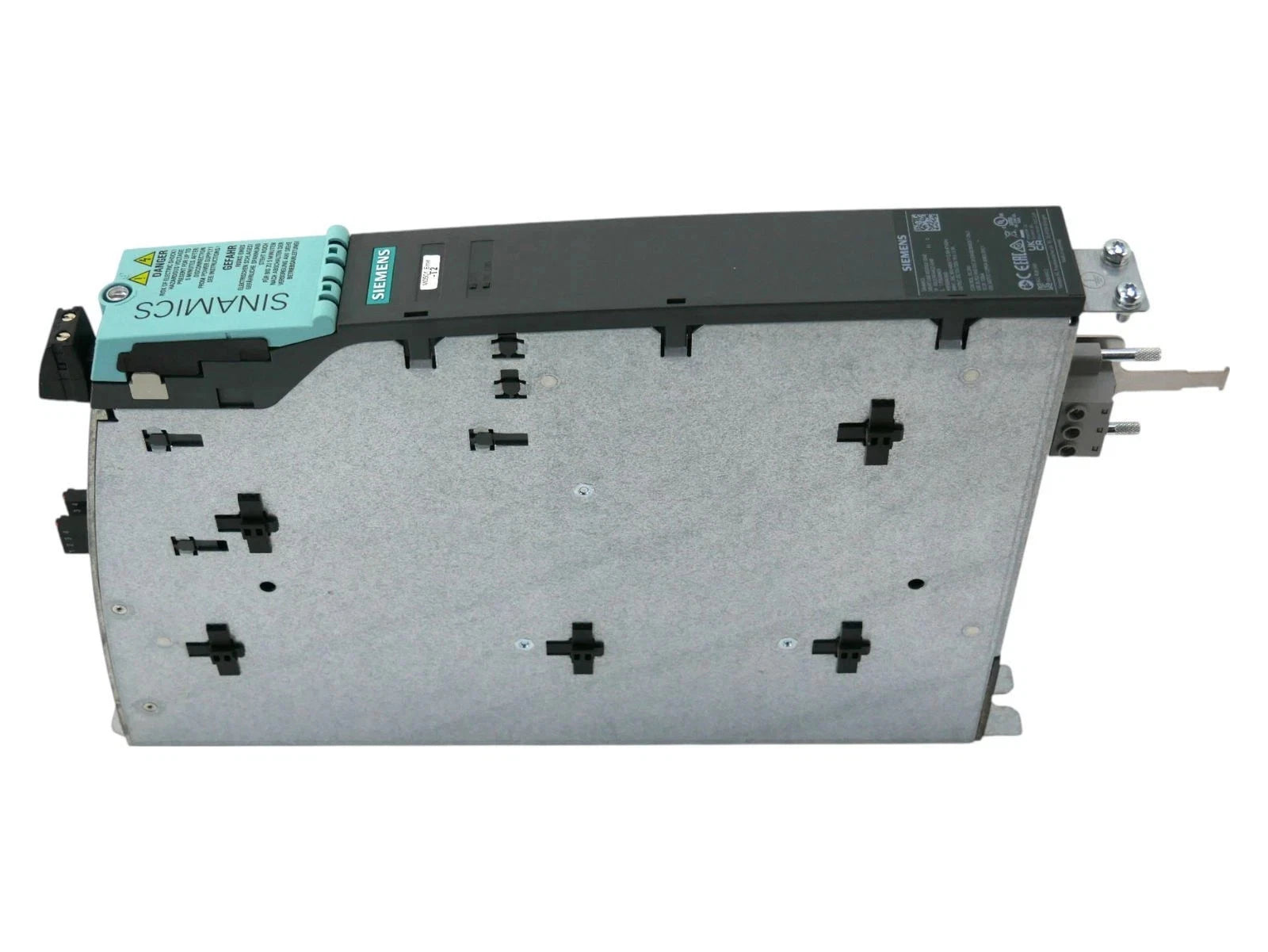

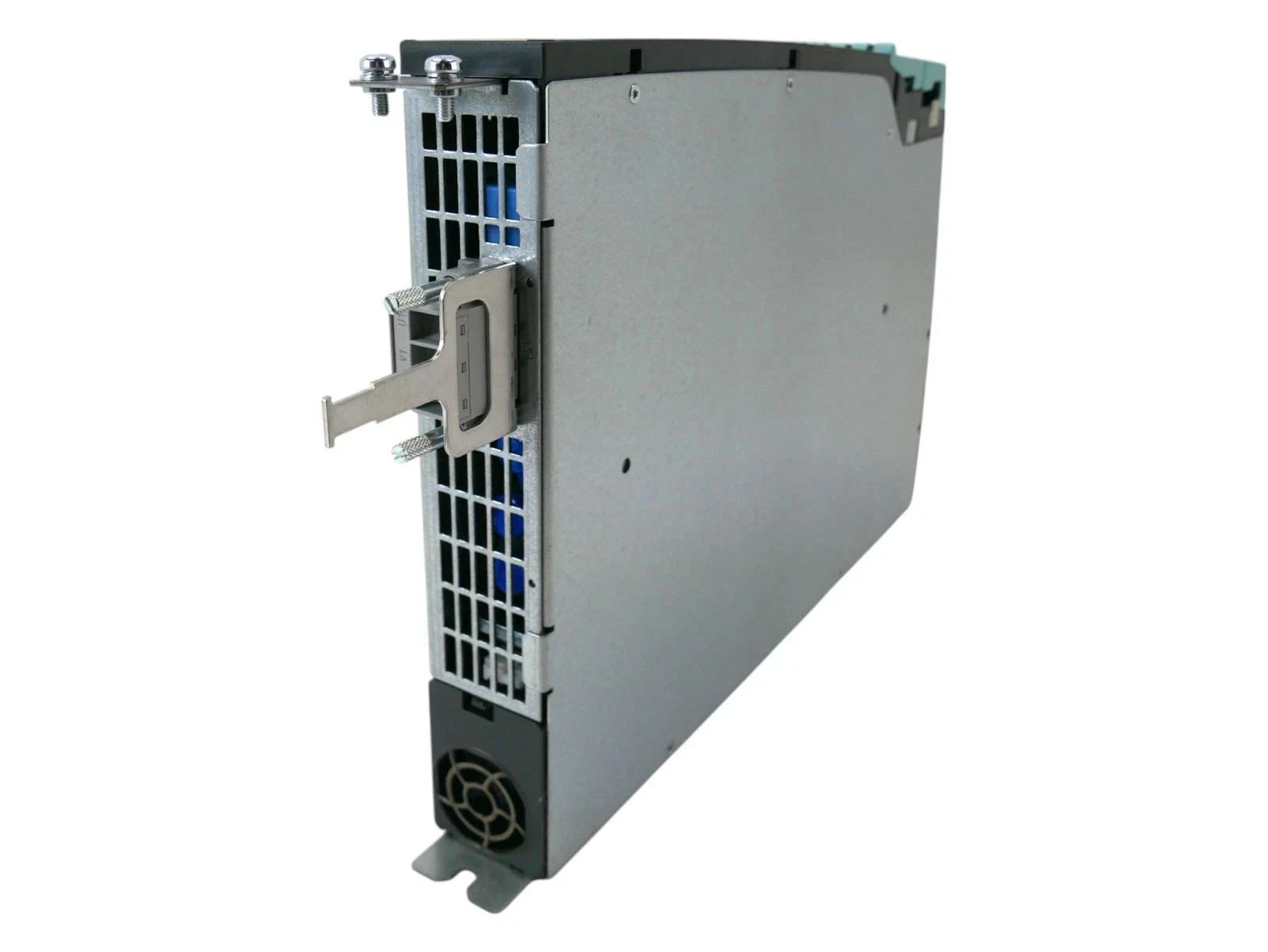

6SL3130-6AE21-0AB1 | SIEMENS SINAMICS S120 Smart Line Module 380-480VAC 600VDC 17A

Description

Siemens 6SL3 130-6AE21-0AB1 SINAMICS S120 Smart Line Module, Input Power: 380-480V AC 3-PH 50/60 Hz; Output Power: 600V DC, 17A, 10kW; Frame Size: Booksize, Internal Air Cooling

Technical Specifications

Information About 6SL3130-6AE21-0AB1

The Siemens part number 6SL3130-6AE21-0AB1 is an AC drive from the SMART LINE MODULE of the SINAMICS S120 series. Manufactured by Siemens, a leading provider of industrial automation solutions, this AC drive is designed for precise and efficient motor control in various applications. The model number for this particular product is 6SL31306AE210AB1.

Design
The 6SL3130-6AE21-0AB1 AC drive is specifically designed for three-phase motor control, offering a maximum current rating of 17 Amps. With a power rating of 10 kW, this AC drive is capable of delivering substantial power to drive motors with high power requirements. It is suitable for applications that require precise control over motor speed and torque, such as CNC machines, conveyors, and industrial pumps.

Operation
The AC drive operates at a voltage range of 380-480 VAC for the input power supply, allowing compatibility with standard industrial power systems. Additionally, it supports a DC link voltage of up to 600 V, enabling efficient energy transfer and regenerative braking capabilities. The AC drive is designed to operate on both 50 Hz and 60 Hz power systems, making it versatile for various international standards.

Features
The frame size of the 6SL3130-6AE21-0AB1 AC drive is categorized as "booksize," which means it has a compact and space-saving design. This allows for easy integration into control cabinets or electrical panels, optimizing space utilization in industrial environments.

The AC drive features internal air cooling, ensuring efficient heat dissipation during operation. The internal cooling mechanism helps maintain optimal operating temperatures, ensuring the longevity and reliability of the drive. It eliminates the need for additional external cooling components, simplifying installation and reducing system complexity.

Connection
One notable inclusion with the 6SL3130-6AE21-0AB1 AC drive is the control voltage adapter. This adapter allows for easy connection and integration of the drive into control systems, providing a seamless interface for control signals and enabling the smooth operation of the motor. The control voltage adapter enhances the compatibility and flexibility of the AC drive, ensuring convenient integration into various automation setups.

Control
The SINAMICS S120 series is a widely recognized and trusted range of AC drives, known for their advanced control features and precise motor control capabilities. The SMART LINE MODULE within the series offers cost-effective and efficient solutions for various industrial applications, providing reliable motor control and optimized energy efficiency.

Siemens, as the manufacturer, is known for its expertise in industrial automation and motor control solutions. The company has a reputation for delivering high-quality products that meet the demanding requirements of industrial applications. With their extensive experience and engineering excellence, Siemens products are known for their reliability, durability, and superior performance.

In summary, the Siemens 6SL3130-6AE21-0AB1 AC drive from the SMART LINE MODULE of the SINAMICS S120 series is a high-quality solution for precise and efficient motor control. With its maximum current rating of 17 Amps, power rating of 10 kW, and support for three-phase operation, it offers reliable performance in a compact design. The inclusion of the control voltage adapter enhances its compatibility and ease of integration. Siemens' reputation for engineering excellence and comprehensive support further adds to the reliability and value of the 6SL3130-6AE21-0AB1 AC drive.
