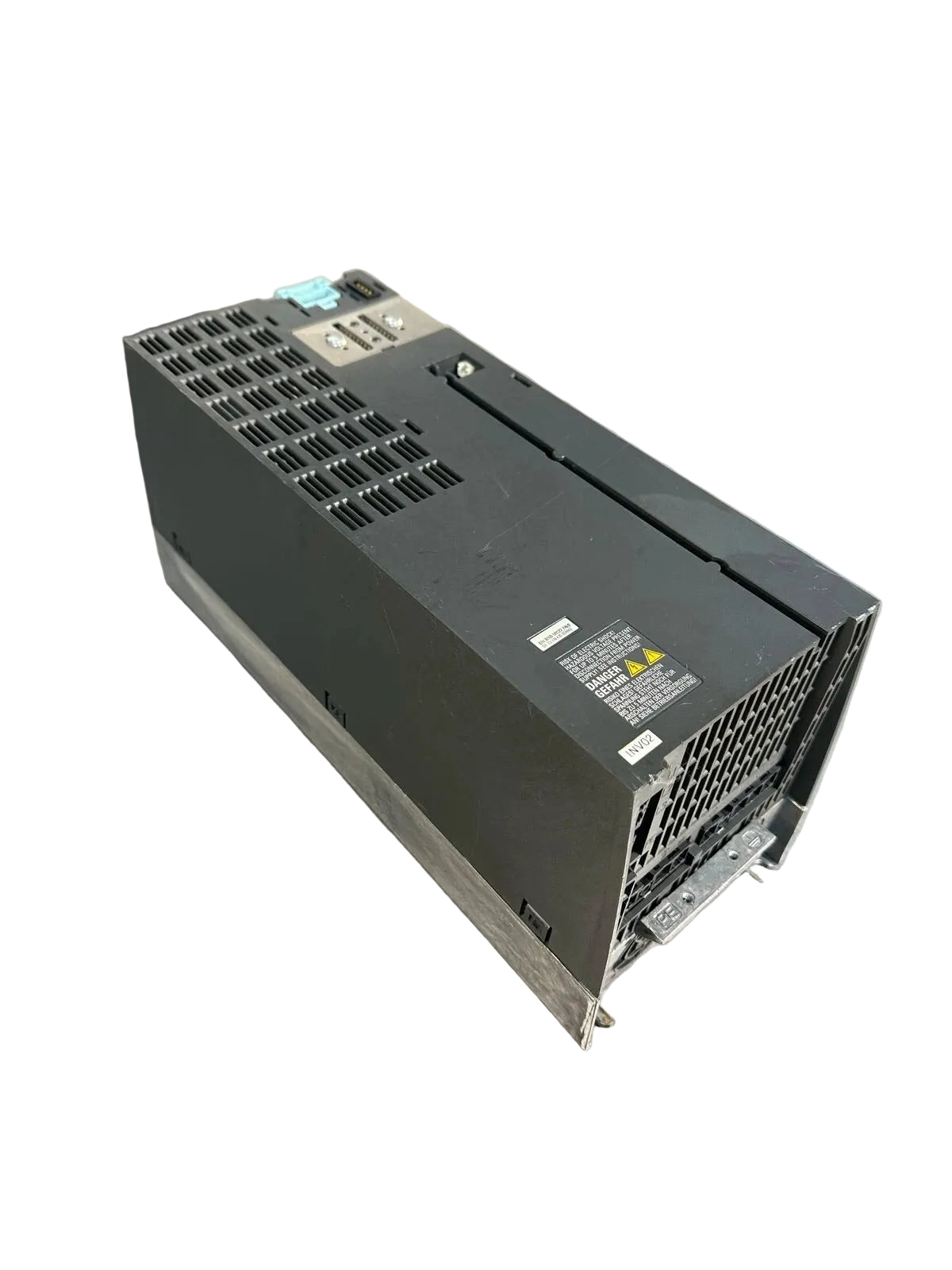

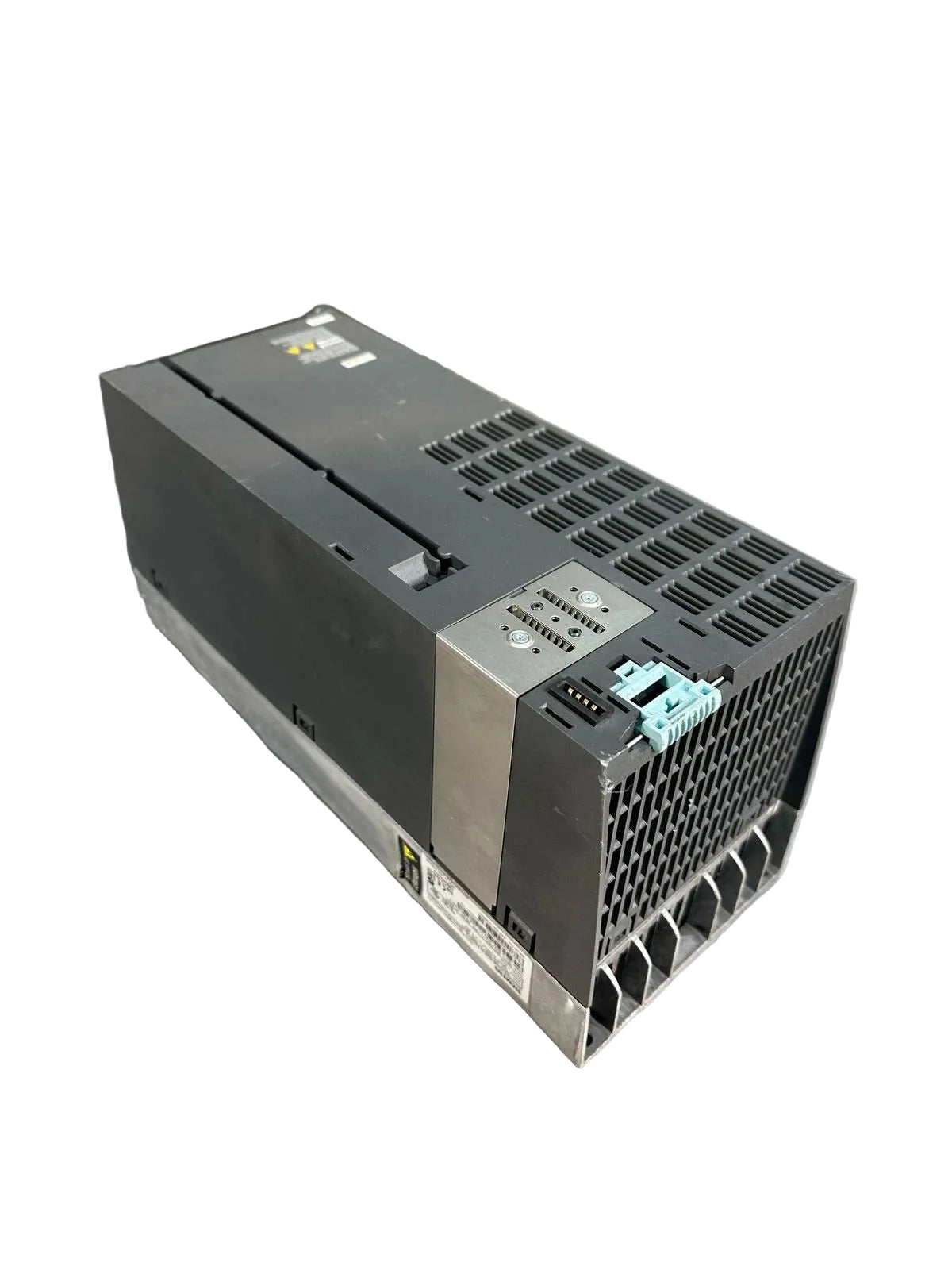

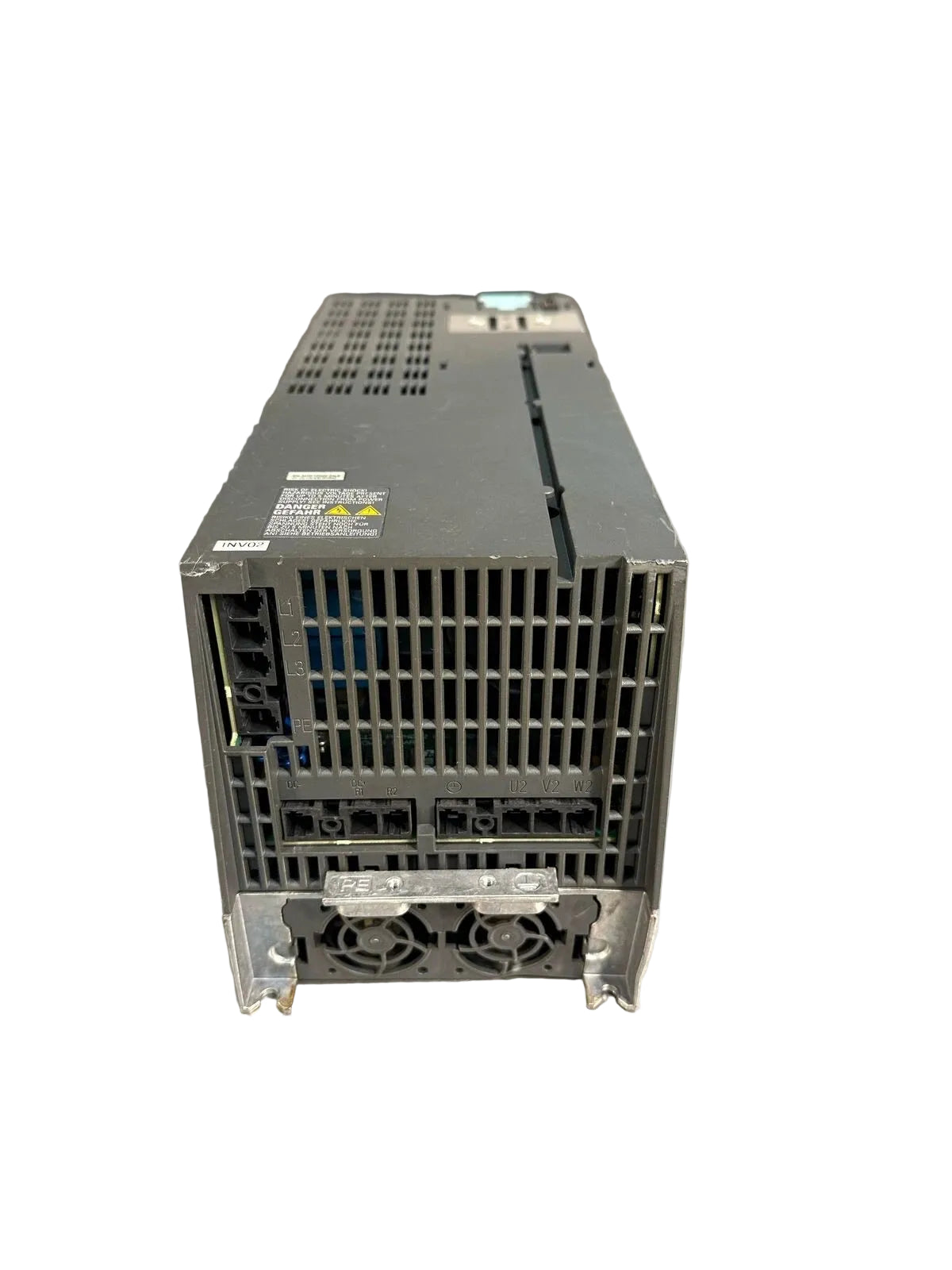

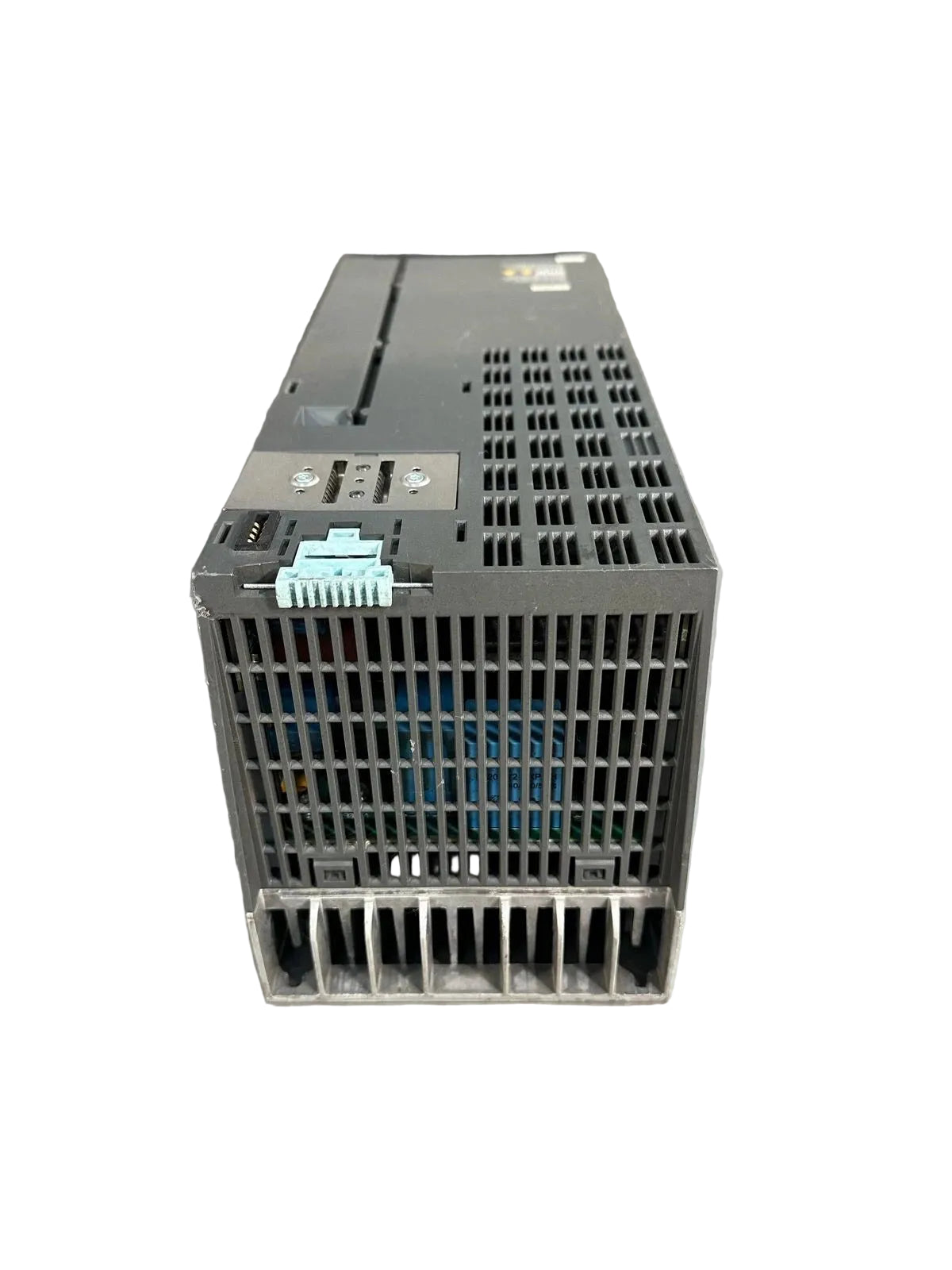

6SL3210-1PC22-2AL0 | Siemens SINAMICS PM240-2 Power Module 200–240VAC 5.5kW Braking Chopper Class A Filter
- Regular price
- $1,279.65
- Sale price
- $1,279.65
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6SL3210-1PC22-2AL0
Description
The Siemens 6SL3210-1PC22-2AL0 is a SINAMICS PM240-2 air-cooled power module designed for AC drive applications requiring integrated filtering and braking control. The 6SL3210-1PC22-2AL0 operates on a 3-phase 200–240 VAC supply and delivers up to 5.5 kW output power depending on overload conditions. It is built for industrial motor control systems where compact inverter power modules are required without an included control unit.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Automation Control Modules |
| Part Number | 6SL3210-1PC22-2AL0 |
| Subcategory | AC Drive Power Modules |
| Product Family | SINAMICS PM240-2 Power Modules |
| Module Type | Air-Cooled Power Module (Blocksize Format) |
| Input Supply Voltage | 3AC 200–240 VAC ±10% |
| Input Frequency Range | 47–63 Hz |
| Output Power (High Overload) | 4 kW (200% for 3 s, 150% for 57 s) |
| Output Power (Low Overload) | 5.5 kW (150% for 3 s, 110% for 57 s) |
| Integrated Filter | Built-In Class A Line Filter |
| Braking Capability | Built-In Braking Chopper |
| Firmware Compatibility | Approved for CU Firmware Version V4.6 |
| Enclosure Protection Rating | IP20 |
| Cooling Type | Air-Cooled |
| Product Dimensions (H × W × D) | 355 mm × 140 mm × 165 mm |
| Lifecycle Status | Active Product |
| Country of Origin | Great Britain |
| Weight | 5.3 kg |
Information About 6SL3210-1PC22-2AL0
The 6SL3210-1PC22-2AL0 belongs to the Siemens SINAMICS PM240-2 series of power modules in blocksize format, engineered for variable-speed drive systems with advanced protection features. It includes a built-in Class A line filter and an integrated braking chopper, enabling efficient motor deceleration and reduced external component requirements. The module supports both high overload and low overload operating modes, allowing flexible drive selection based on load profile and ambient temperature conditions. With IP20 protection and compatibility with SINAMICS control units running firmware version V4.6, it is intended for industrial automation environments where modular drive system architecture is required.
Key Features:
-
SINAMICS PM240-2 Power Module: Air-cooled inverter power stage designed for Siemens modular drive systems.
-
Integrated Class A Line Filter: Built-in filtering reduces electrical noise and simplifies compliance requirements.
-
Built-In Braking Chopper: Supports dynamic braking without external braking modules.
-
3AC 200–240 VAC Supply Range: Designed for industrial three-phase power input at 47–63 Hz.
-
High Overload Performance Mode: Provides 4 kW output with 200% overload capability for short-duration peaks.
-
Low Overload Performance Mode: Supports up to 5.5 kW output under reduced overload and temperature limits.
-
Blocksize Modular Format Design: Compact construction intended for cabinet-mounted drive installations.
-
IP20 Protection Rating: Suitable for enclosed industrial control panel environments.
The 6SL3210-1PC22-2AL0 delivers the reliability and precision required for modular AC motor drive power control with integrated braking and filtering functions.
