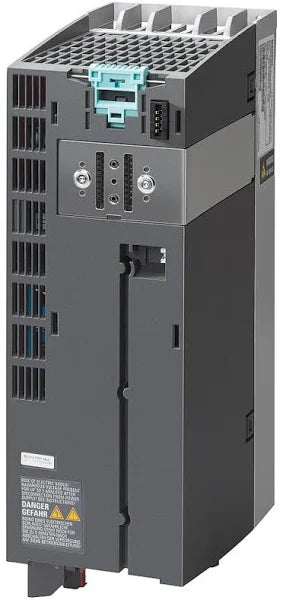

6SL3210-1PE21-1UL0 | Siemens | POWER MODULE
- Regular price
- $405.00
- Sale price
- $405.00
- Regular price
-
Do you need help?
Product Description P/N: 6SL3210-1PE21-1UL0
Description
The Siemens 6SL3210-1PE21-1UL0 DRIVE is part of the SINAMICS G120 series, specifically the POWER MODULE PM240-2 variant. It operates on a 3-phase AC voltage range of 380-480V and delivers a power output of 4 HP. Featuring FSB technology and IP20 protection rating, this drive is engineered to ensure reliable performance in industrial environments.
The SINAMICS G120 series offers a comprehensive range of closed-loop vector drives with integrated safety features, energy-saving capabilities, and extensive network connectivity options. From 1/2 to 335 HP, these drives are adaptable and scalable to suit various industrial applications. With integrated math and logic functions, the need for a separate PLC is eliminated, simplifying system architecture.
Safety functions including Safe Torque Off, Safe Stop 1, Safety Limited Speed, and Safe Brake Control are fully integrated into the SINAMICS G120, complying with EN 60204 and NFPA 79-2007 standards. This ensures enhanced safety levels while minimizing integration overhead in automation and drive environments.
Technical Specifications
Specifications
Part Number |
6SL3210-1PE21-1UL0 |
Manufacturer |
SIEMENS |
Category |
Controls & Indicators |
Subcategory |
Power Controller |
Product Line |
SINAMICS POWER MODULE PM240-2 |
Filter |
Without Filter |
Braking Chopper |
Built-in Braking Chopper |
Input Voltage |
3AC 380-480V +/-10% |
Input Frequency |
47-63 Hz |
Output (High Overload) |
3kW for 200% (3s), 150% (57s), 100% (240s) at -10 to +50°C ambient temperature |
Output (Low Overload) |
4kW for 150% (3s), 110% (57s), 100% (240s) at -10 to +40°C ambient temperature |
Dimensions |
291 x 100 x 165 (HxWxD) |
Protection |
IP20 (without control unit and panel) |
Firmware Compatibility |
CU firmware version V4.6 and above |
Information About 6SL3210-1PE21-1UL0
The Siemens 6SL3210-1PE21-1UL0 is a drive module belonging to the SINAMICS G120 Power Module PM240-2 series. Operating with a power supply of 3AC380-480V, this module is designed to deliver 4HP of output power. Enclosed within an IP20-rated housing, it ensures adequate protection against solid objects and offers optimal safety for industrial environments.
The SINAMICS G120 series is renowned for its closed-loop vector drives, providing advanced levels of safety, energy efficiency, and network connectivity. Offering a power range from 1/2 to 335 HP, the G120 is a scalable and modular standard drive, adaptable to diverse industrial drive applications. Its built-in math and logic capabilities eliminate the need for a separate PLC, enhancing operational efficiency and reducing costs.
Incorporating EN 60204 safety functions, including Safe Torque Off, Safe Stop 1, Safety Limited Speed, and Safe Brake Control, the SINAMICS G120 ensures comprehensive safety measures for production plants. Compliance with NFPA 79-2007 standards further underscores its commitment to safety protocols.
The SINAMICS G120 introduces regenerative power modules to enhance energy savings, efficiently recovering line-commutated energy across all power ratings. Eliminating the need for pulsed resistors and brake choppers, it streamlines control cabinet and cooling system requirements, contributing to overall cost reduction and operational efficiency.
Featuring built-in portals for PROFIBUS and PROFINET communications networks, the SINAMICS G120 ensures seamless integration into field-level environments, optimizing drive performance and network connectivity.
The introduction of SINAMICS wall mount kits facilitates straightforward and direct mounting of G120C compact and G120 PM240-2 modular drives. These cost-effective kits, conforming to NEMA 1 and UL Type 1 standards, offer versatile power ranges from 1/2 to 200 hp and voltages from 230V to 690V. The uniform, compact design across all frame sizes ensures consistent space savings and provides convenient access to drive-mounted operator panels, simplifying commissioning, monitoring, and troubleshooting processes.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
Description
The Siemens 6SL3210-1PE21-1UL0 DRIVE is part of the SINAMICS G120 series, specifically the POWER MODULE PM240-2 variant. It operates on a 3-phase AC voltage range of 380-480V and delivers a power output of 4 HP. Featuring FSB technology and IP20 protection rating, this drive is engineered to ensure reliable performance in industrial environments.
The SINAMICS G120 series offers a comprehensive range of closed-loop vector drives with integrated safety features, energy-saving capabilities, and extensive network connectivity options. From 1/2 to 335 HP, these drives are adaptable and scalable to suit various industrial applications. With integrated math and logic functions, the need for a separate PLC is eliminated, simplifying system architecture.
Safety functions including Safe Torque Off, Safe Stop 1, Safety Limited Speed, and Safe Brake Control are fully integrated into the SINAMICS G120, complying with EN 60204 and NFPA 79-2007 standards. This ensures enhanced safety levels while minimizing integration overhead in automation and drive environments.
Technical Specifications
Specifications
Part Number |
6SL3210-1PE21-1UL0 |
Manufacturer |
SIEMENS |
Category |
Controls & Indicators |
Subcategory |
Power Controller |
Product Line |
SINAMICS POWER MODULE PM240-2 |
Filter |
Without Filter |
Braking Chopper |
Built-in Braking Chopper |
Input Voltage |
3AC 380-480V +/-10% |
Input Frequency |
47-63 Hz |
Output (High Overload) |
3kW for 200% (3s), 150% (57s), 100% (240s) at -10 to +50°C ambient temperature |
Output (Low Overload) |
4kW for 150% (3s), 110% (57s), 100% (240s) at -10 to +40°C ambient temperature |
Dimensions |
291 x 100 x 165 (HxWxD) |
Protection |
IP20 (without control unit and panel) |
Firmware Compatibility |
CU firmware version V4.6 and above |
Information About 6SL3210-1PE21-1UL0
The Siemens 6SL3210-1PE21-1UL0 is a drive module belonging to the SINAMICS G120 Power Module PM240-2 series. Operating with a power supply of 3AC380-480V, this module is designed to deliver 4HP of output power. Enclosed within an IP20-rated housing, it ensures adequate protection against solid objects and offers optimal safety for industrial environments.
The SINAMICS G120 series is renowned for its closed-loop vector drives, providing advanced levels of safety, energy efficiency, and network connectivity. Offering a power range from 1/2 to 335 HP, the G120 is a scalable and modular standard drive, adaptable to diverse industrial drive applications. Its built-in math and logic capabilities eliminate the need for a separate PLC, enhancing operational efficiency and reducing costs.
Incorporating EN 60204 safety functions, including Safe Torque Off, Safe Stop 1, Safety Limited Speed, and Safe Brake Control, the SINAMICS G120 ensures comprehensive safety measures for production plants. Compliance with NFPA 79-2007 standards further underscores its commitment to safety protocols.
The SINAMICS G120 introduces regenerative power modules to enhance energy savings, efficiently recovering line-commutated energy across all power ratings. Eliminating the need for pulsed resistors and brake choppers, it streamlines control cabinet and cooling system requirements, contributing to overall cost reduction and operational efficiency.
Featuring built-in portals for PROFIBUS and PROFINET communications networks, the SINAMICS G120 ensures seamless integration into field-level environments, optimizing drive performance and network connectivity.
The introduction of SINAMICS wall mount kits facilitates straightforward and direct mounting of G120C compact and G120 PM240-2 modular drives. These cost-effective kits, conforming to NEMA 1 and UL Type 1 standards, offer versatile power ranges from 1/2 to 200 hp and voltages from 230V to 690V. The uniform, compact design across all frame sizes ensures consistent space savings and provides convenient access to drive-mounted operator panels, simplifying commissioning, monitoring, and troubleshooting processes.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
