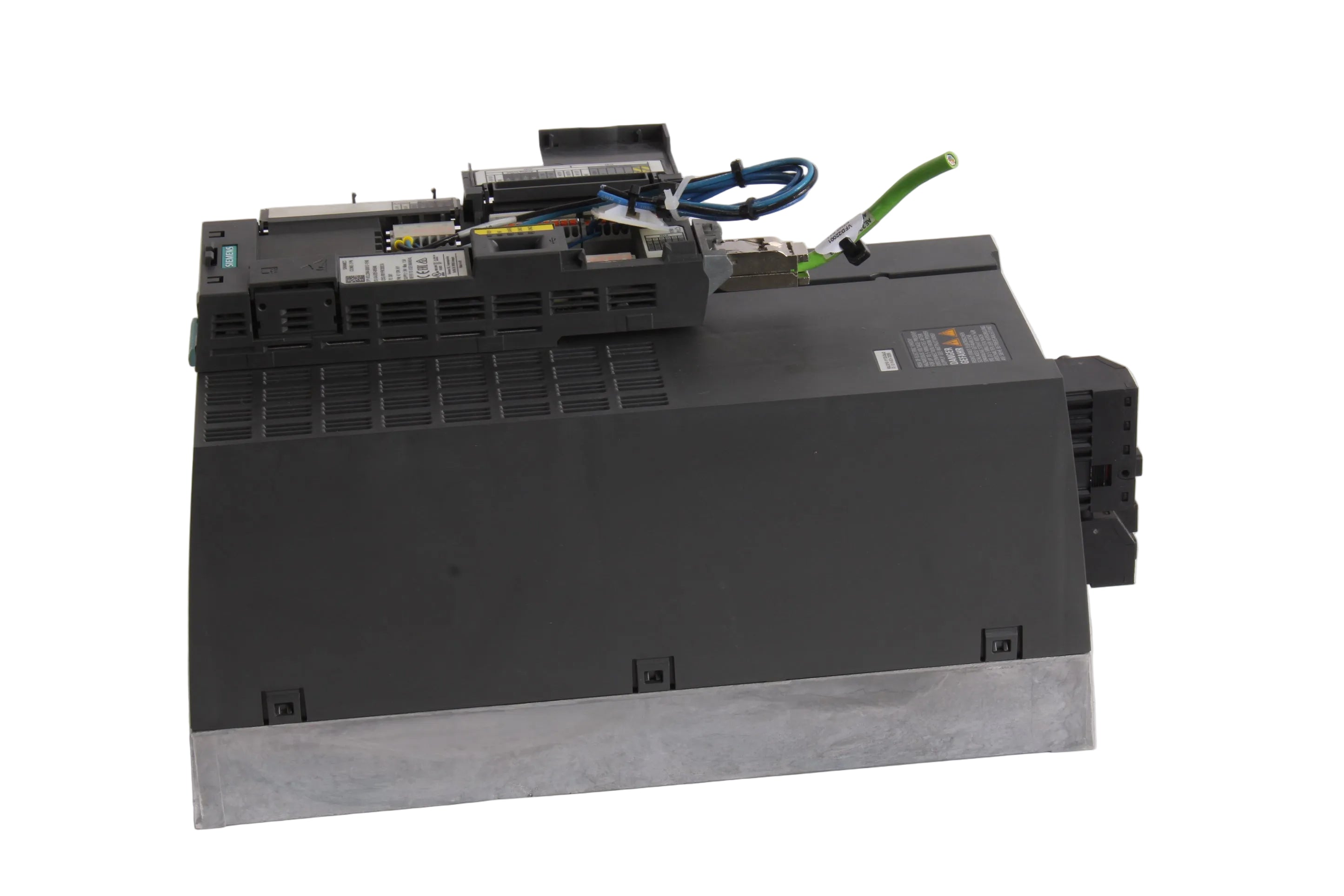

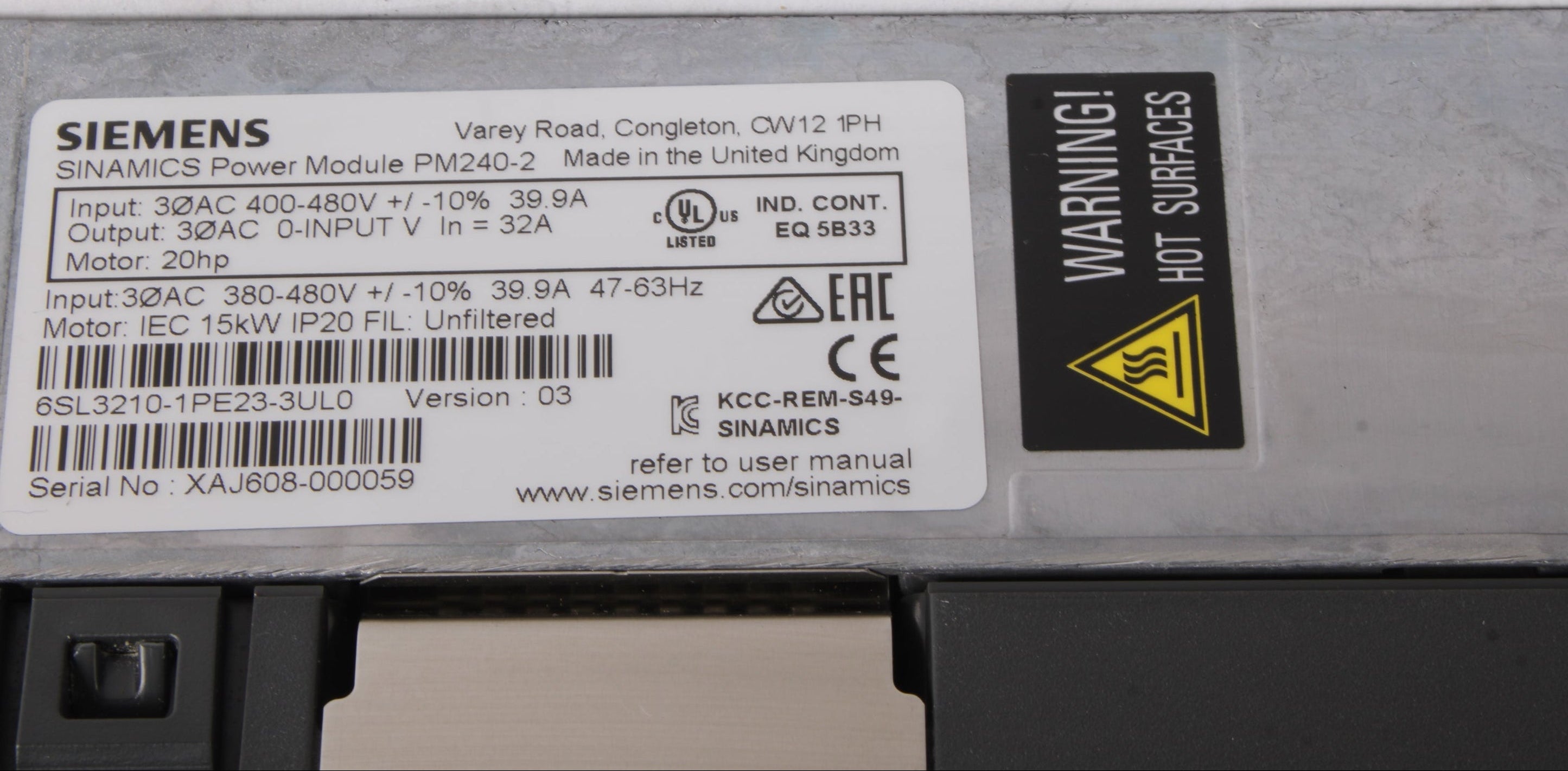

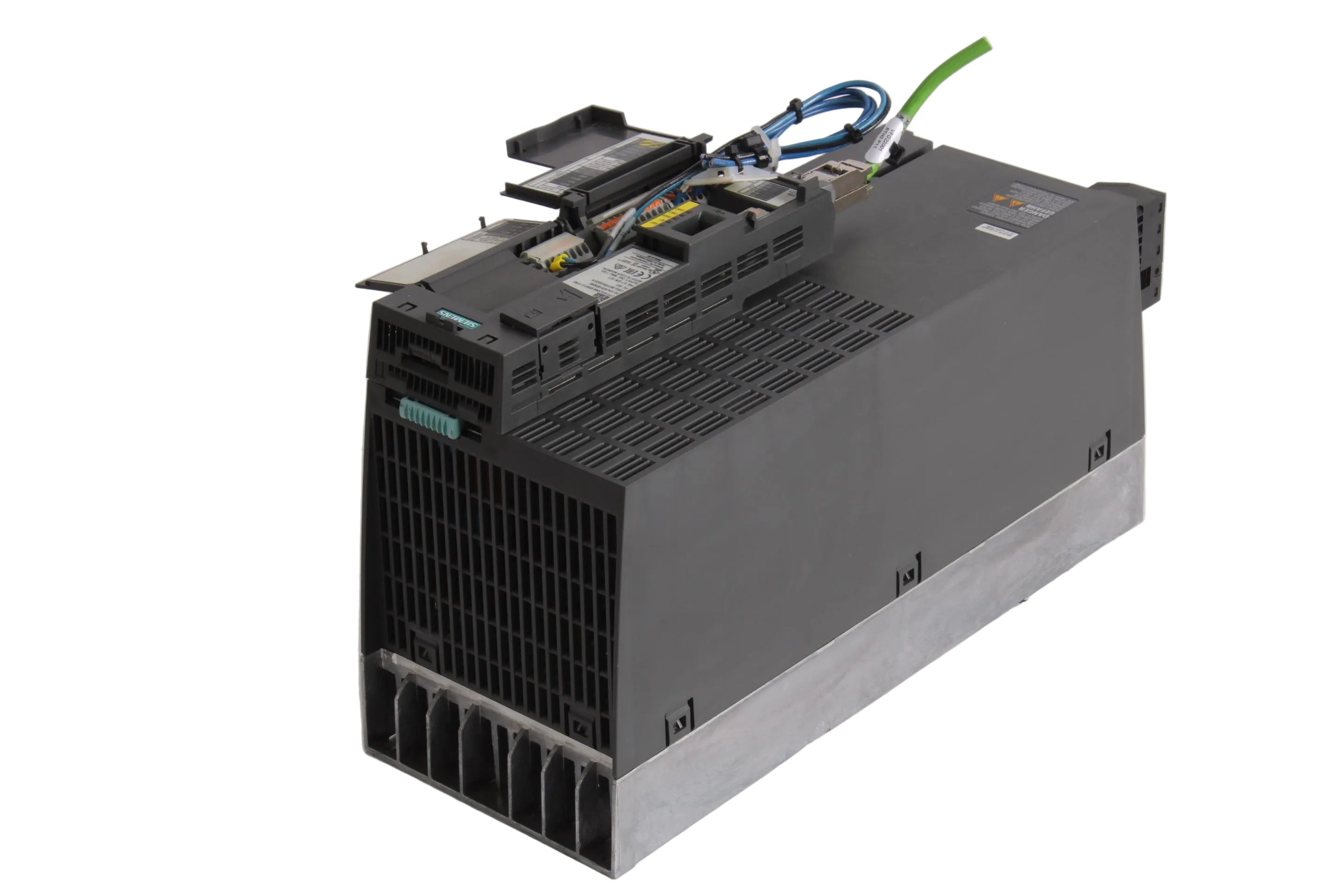

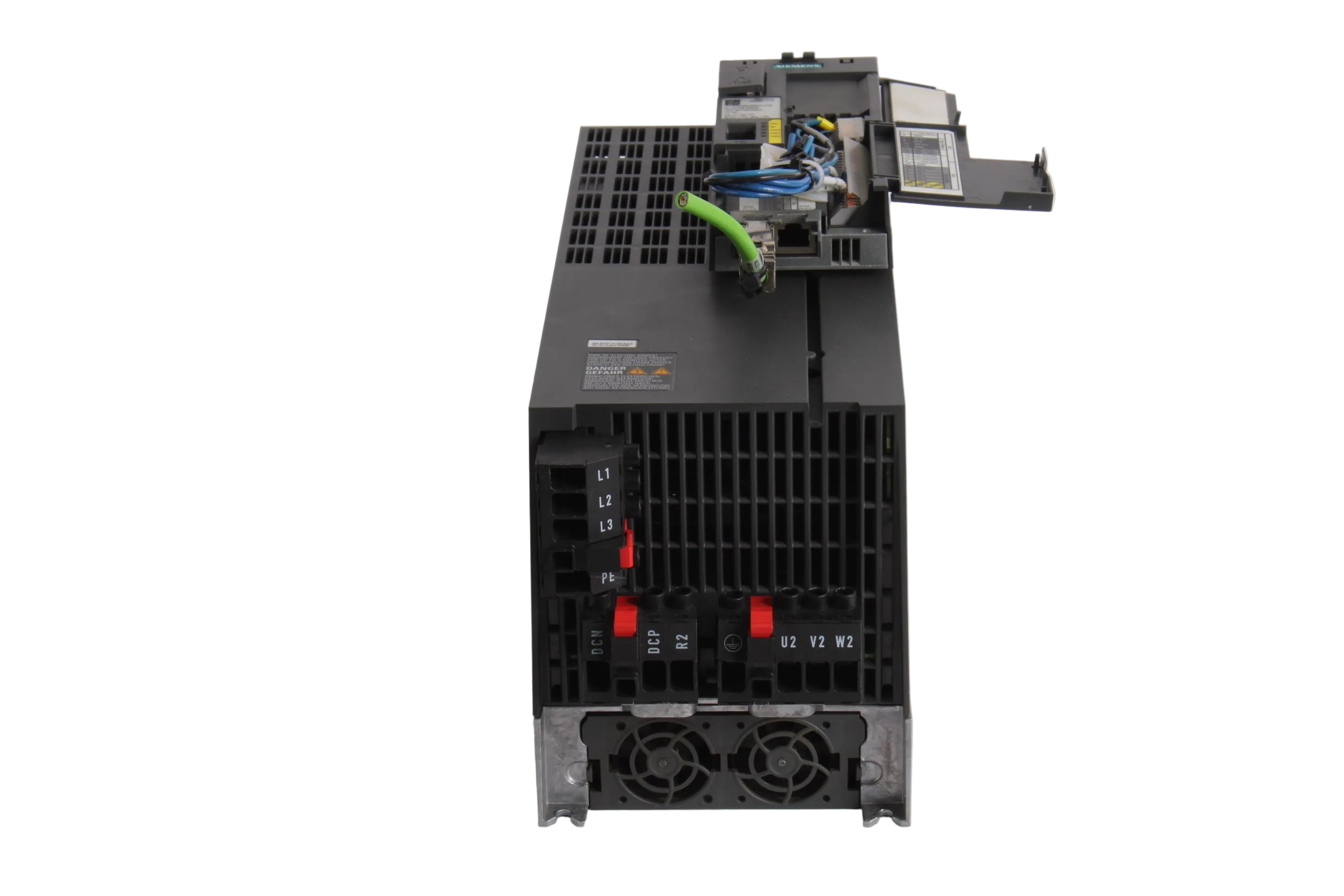

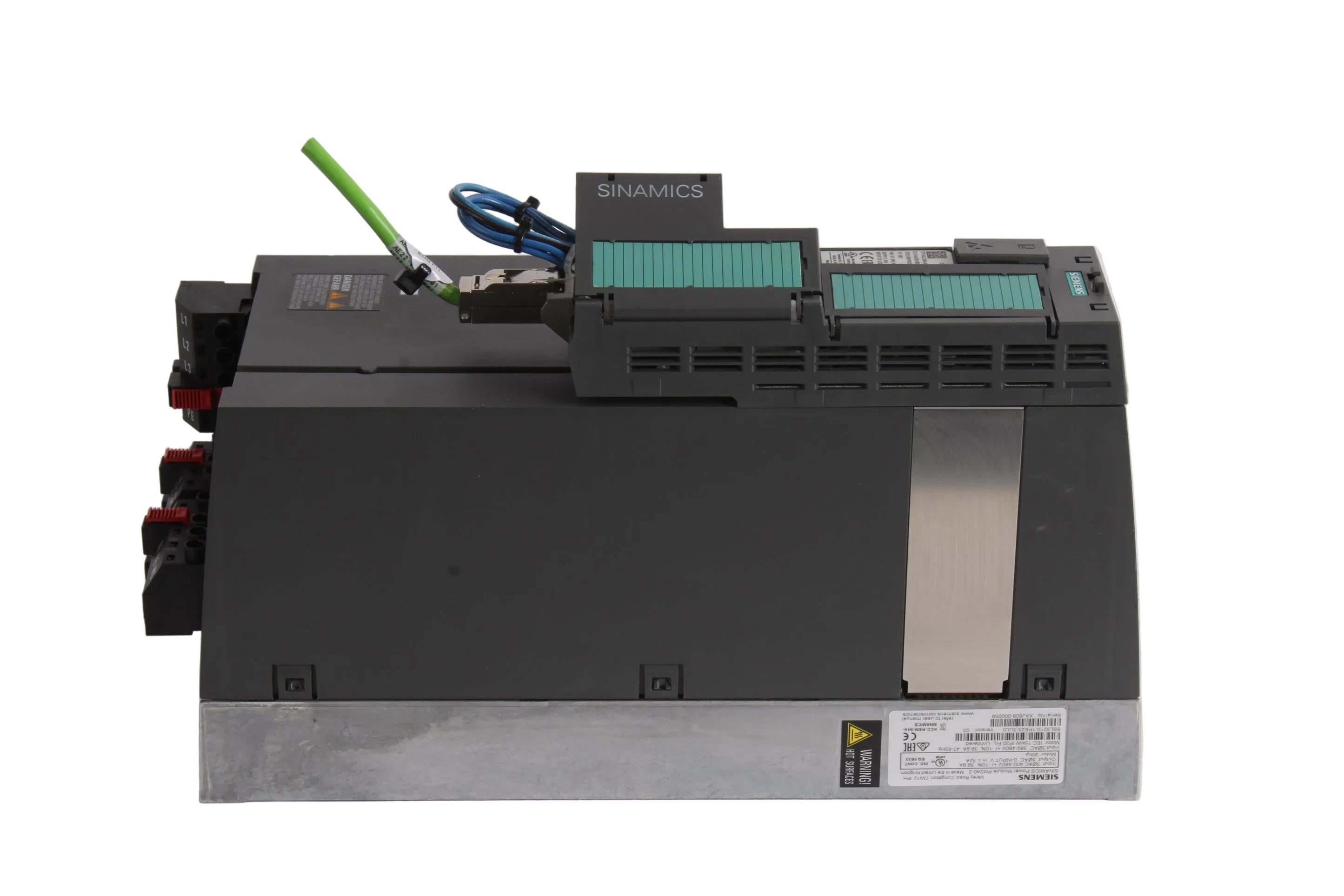

6SL3210-1PE23-3UL0 | Siemens SINAMICS S120 PM240-2 Converter Power Module
- Regular price
- $835.00
- Sale price
- $835.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6SL3210-1PE23-3UL0
Description
The Siemens 6SL3210-1PE23-3UL0 is a SINAMICS S120 PM240-2 converter power module engineered for precise AC motor control in three-phase industrial systems. Rated at 15 kW, it accepts 380–480V AC input and delivers up to 32 A output with built-in braking chopper capability. Designed without an integrated line filter, the module provides reliable, efficient drive operation within compact cabinet installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Controls & Indicators |
| Part Number | 6SL3210-1PE23-3UL0 |
| Subcategory | Power Controller |
| Series | SINAMICS PM240-2 |
| Power Rating | 15 kW |
| Supply Voltage | 380–480 VAC, 3-phase |
| Current Rating | 36 A (high overload), 39.9 A (low overload) |
| Output Current | 32 A (low overload), 26 A (high overload), 52 A max |
| Output Frequency | Up to 550 Hz |
| Drive Type | AC drive power module |
| Function | AC motor control |
| For Use With | AC motors, SINAMICS S120 systems |
| IP Rating | IP20 |
| Operating Temperature | -5 to 40 °C (LO) / -10 to 50 °C (HO) |
| Dimensions | 140 mm (L) × 355 mm (W) × 165 mm (D) |
| Special Features | Built-in braking chopper; no line filter |
| Standards Met | CE, UL |
Information About 6SL3210-1PE23-3UL0
The 6SL3210-1PE23-3UL0 belongs to the SINAMICS S120 PM240-2 family, which features modular power components intended for high-performance motion and variable-speed applications. Its construction includes IP20 terminal protection, a compact housing, and a braking chopper integrated into the module, reducing the need for external hardware. The module integrates naturally with S120 control units and AC motors, enabling scalable multi-axis configurations and precise torque, speed, and position control. Commonly used in conveying, packaging, machine tools, and general automation, the PM240-2 module supports high output frequencies and adheres to CE and UL standards for industrial safety and performance.
Key Features:
- 15 kW power module: Suitable for medium-power industrial AC drive applications.
- 380–480V AC input: Supports global three-phase supply ranges for flexible installation.
- Built-in braking chopper: Enables energy dissipation during rapid deceleration cycles.
- High output capability: Up to 32 A (low overload) and 26 A (high overload) output current.
- Compact form factor: Optimized dimensions for panel space efficiency.
- IP20 terminal protection: Provides safe wiring access within enclosed cabinets.
- High output frequency: Supports motor operation up to 550 Hz for dynamic control.
- Standards compliant: Meets CE and UL requirements for industrial use.
The 6SL3210-1PE23-3UL0 delivers the reliability and precision required for advanced AC drive and motor control applications.
Description
The Siemens 6SL3210-1PE23-3UL0 is a SINAMICS S120 PM240-2 converter power module engineered for precise AC motor control in three-phase industrial systems. Rated at 15 kW, it accepts 380–480V AC input and delivers up to 32 A output with built-in braking chopper capability. Designed without an integrated line filter, the module provides reliable, efficient drive operation within compact cabinet installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Controls & Indicators |
| Part Number | 6SL3210-1PE23-3UL0 |
| Subcategory | Power Controller |
| Series | SINAMICS PM240-2 |
| Power Rating | 15 kW |
| Supply Voltage | 380–480 VAC, 3-phase |
| Current Rating | 36 A (high overload), 39.9 A (low overload) |
| Output Current | 32 A (low overload), 26 A (high overload), 52 A max |
| Output Frequency | Up to 550 Hz |
| Drive Type | AC drive power module |
| Function | AC motor control |
| For Use With | AC motors, SINAMICS S120 systems |
| IP Rating | IP20 |
| Operating Temperature | -5 to 40 °C (LO) / -10 to 50 °C (HO) |
| Dimensions | 140 mm (L) × 355 mm (W) × 165 mm (D) |
| Special Features | Built-in braking chopper; no line filter |
| Standards Met | CE, UL |
Information About 6SL3210-1PE23-3UL0
The 6SL3210-1PE23-3UL0 belongs to the SINAMICS S120 PM240-2 family, which features modular power components intended for high-performance motion and variable-speed applications. Its construction includes IP20 terminal protection, a compact housing, and a braking chopper integrated into the module, reducing the need for external hardware. The module integrates naturally with S120 control units and AC motors, enabling scalable multi-axis configurations and precise torque, speed, and position control. Commonly used in conveying, packaging, machine tools, and general automation, the PM240-2 module supports high output frequencies and adheres to CE and UL standards for industrial safety and performance.
Key Features:
- 15 kW power module: Suitable for medium-power industrial AC drive applications.
- 380–480V AC input: Supports global three-phase supply ranges for flexible installation.
- Built-in braking chopper: Enables energy dissipation during rapid deceleration cycles.
- High output capability: Up to 32 A (low overload) and 26 A (high overload) output current.
- Compact form factor: Optimized dimensions for panel space efficiency.
- IP20 terminal protection: Provides safe wiring access within enclosed cabinets.
- High output frequency: Supports motor operation up to 550 Hz for dynamic control.
- Standards compliant: Meets CE and UL requirements for industrial use.
The 6SL3210-1PE23-3UL0 delivers the reliability and precision required for advanced AC drive and motor control applications.
