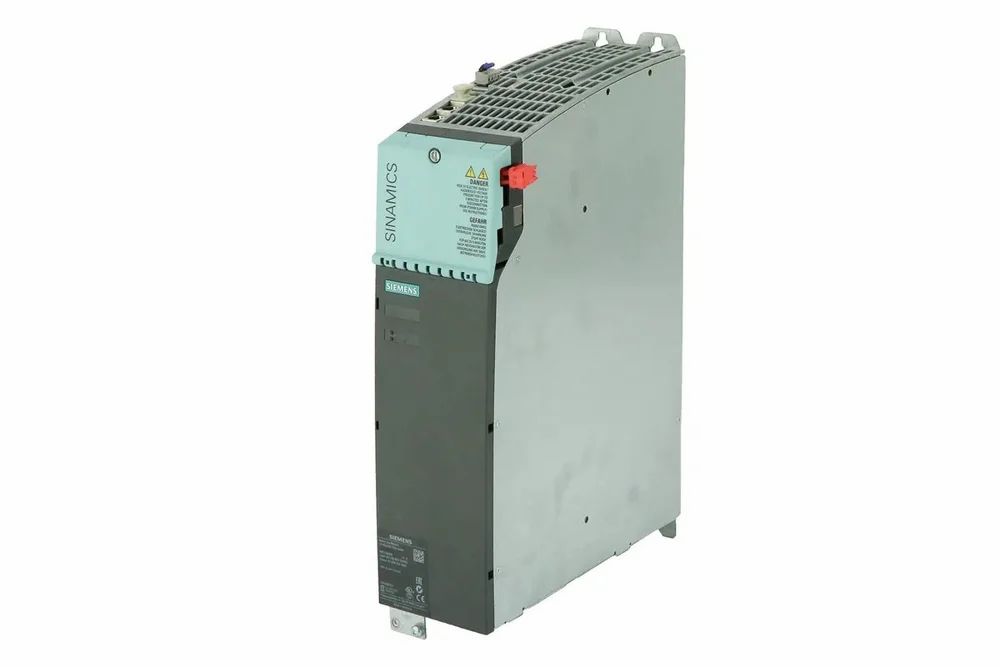

6SL3420-2TE13-0AA1 | Siemens SINAMICS Double Motor Module 600VDC/400VAC

Description

The Siemens 6SL3420-2TE13-0AA1 is a high-efficiency SINAMICS S120 double motor module designed for compact and high-performance motion control applications. With 600V DC input and dual 400V AC 3-phase outputs at 3A each, it supports synchronized operation of two motors in a single compact unit.

Technical Specifications

Information About 6SL3420-2TE13-0AA1

The 6SL3420-2TE13-0AA1 is part of the SINAMICS S120 family of high-performance modular drives from Siemens. It is a Double Motor Module capable of powering two independent motors with outputs of 3A each at 400V AC. Designed for 600V DC input systems, this module is built in a booksize compact frame with internal air cooling to conserve panel space while maintaining thermal efficiency.

Key Features:

• Dual Motor Control (3A/3A): Operates two motors simultaneously with independent 3A outputs at 400V AC.

• 600V DC Input: Compatible with high-voltage DC bus architectures in industrial motion systems.

• Booksize Compact Frame: Space-saving design ideal for dense control cabinet installations.

• Internal Air Cooling: Efficient thermal management without external cooling systems.

• Optimized Pulse Pattern: Ensures smooth motor performance and reduced harmonics.

• Safety Integrated Functions: Supports advanced motion safety features for machine protection and operator safety.

• Drive-CLiQ Connectivity: Simplifies system integration and communication with SINAMICS and SIMATIC platforms.

The 6SL3420-2TE13-0AA1 delivers compact dual-axis drive functionality with high precision, safety, and Siemens-native integration.
