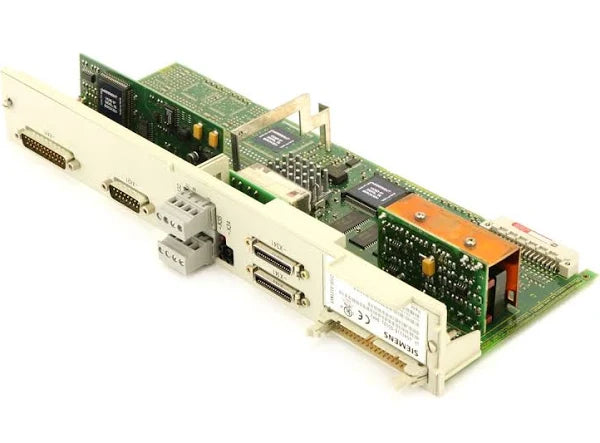

6SN1118-0DG21-0AA1 | Siemens Simodrive 611 Performance 1-Axis Closed-Loop Control Unit
- Regular price
- $1,177.00
- Sale price
- $1,177.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6SN1118-0DG21-0AA1
Description
The Siemens 6SN1118-0DG21-0AA1 is a closed-loop performance control unit for the SIMODRIVE 611 system, designed to manage one axis with high precision. It supports incremental and absolute encoders and provides digital speed/torque setpoint interfaces for feed and spindle drive control. Engineered for CNC applications, this module delivers accurate axis regulation within Siemens automation and motion platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Servo Products |
| Part Number | 6SN1118-0DG21-0AA1 |
| Subcategory | Servo Add-On Module/Board |
| Type | AC Drives / Control Unit |
| System Family | SIMODRIVE 611-D |
| Control Type | Closed-loop axis control |
| Number of Axes | 1 |
| Encoder Support | Incremental sin/cos 1 Vpp, Absolute EnDat |
| Setpoint Interface | Digital speed/torque (FD/MSD) |
| Compatibility | Successor to 6SN1118-0DJ21-0AA1 |
| CNC Integration | Siemens 810D and 840D |
| Operation Mode | CNC Drive Control |
| Design | Plug-in performance module |
| Application | Feed and spindle drive regulation |
Information About 6SN1118-0DG21-0AA1
The 6SN1118-0DG21-0AA1 is part of the SIMODRIVE 611-D control family and serves as a dedicated performance module for closed-loop motion regulation. Built as a plug-in card, it integrates tightly with Siemens digital drive systems, offering stable control for both feed and main spindle axes. It is compatible with incremental sin/cos 1 Vpp encoders as well as absolute encoders using EnDat interfaces, ensuring flexible integration with modern CNC architectures. Typical usage includes precision machining centers, automation equipment, and milling or turning systems requiring deterministic axis control and reliable digital communication.
Key Features:
- Closed-loop axis control: Provides high-precision regulation for a single motion axis.
- Encoder flexibility: Supports sin/cos 1 Vpp incremental and absolute EnDat encoders.
- Digital setpoint interface: Handles speed and torque commands for feed and spindle drives.
- CNC compatibility: Designed for SIMODRIVE 611-D systems used in Siemens 810D and 840D controls.
- Plug-in modular design: Simplifies installation, replacement, and system expansion.
- Industrial-grade performance: Suitable for high-accuracy machining and automation environments.
- Successor/compatibility support: Compatible with NC software versions 6.4.9 and later for modernized systems.
- Robust construction: Engineered for demanding continuous-duty operation in CNC platforms.
The 6SN1118-0DG21-0AA1 delivers the reliability and precision required for advanced CNC motion control and industrial drive regulation.
