6SN1118-0DH23-0AA1 | Siemens Simodrive 611-D Digital Control Board 2-Axes Setpoint

Description

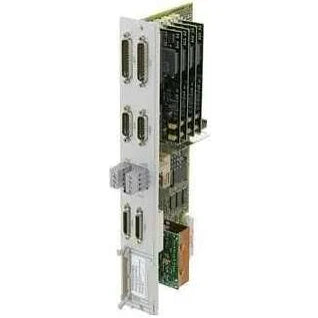

The Siemens 6SN1118-0DH23-0AA1 Simodrive Control Card is a digital control card for the Simodrive 611 series. This unit is used for 2 axis control. It is a closed-loop control plug in-unit. It can be used with digital drives, both feed and spindle. This digital control block is also used for performance control. It has a direct measuring system that uses voltage signals. The FD control software required is 06.04.09. Incremental encoder Motor encoder: sin/cos 1 Vpp, EnDat.  Motors: SRM: 1FT6,1FK6,1FE1 ARM: 1PH2/–4/–6/–7 SLM: 1FN1, 1FN3 Third–party: if suitable.

Technical Specifications

Information About 6SN1118-0DH23-0AA1

Features
The Simodrive control board 6SN1118-0DH23-0AA1 basic delivers sinusoidal voltage signals. You have the option of connecting absolute value encoders with EnDat interface. The sinusoidal current signals add evaluation for 2 direct measuring systems. With the sinusoidal voltage systems you add evaluation for 2 direct measuring systems as well as possibly connecting absolute value encoders with EnDat interface and SSI interface.

Advantages
Being a part of the larger Simodrive control system, this module helps ensure control. The drive system is comprised of several units working together. The units that make up the SIMODRIVE system are the Transformer, Switching and protecting elements, Line filter, Commutating reactors, Infeed modules, Power modules, Control modules harmonized with the application technology and motor types, Special modules and additional accessories, Different cooling types are available for the output–dependent supply infeed and drive modules, Internal cooling, External cooling and Hose cooling.

Manufacturer Information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
