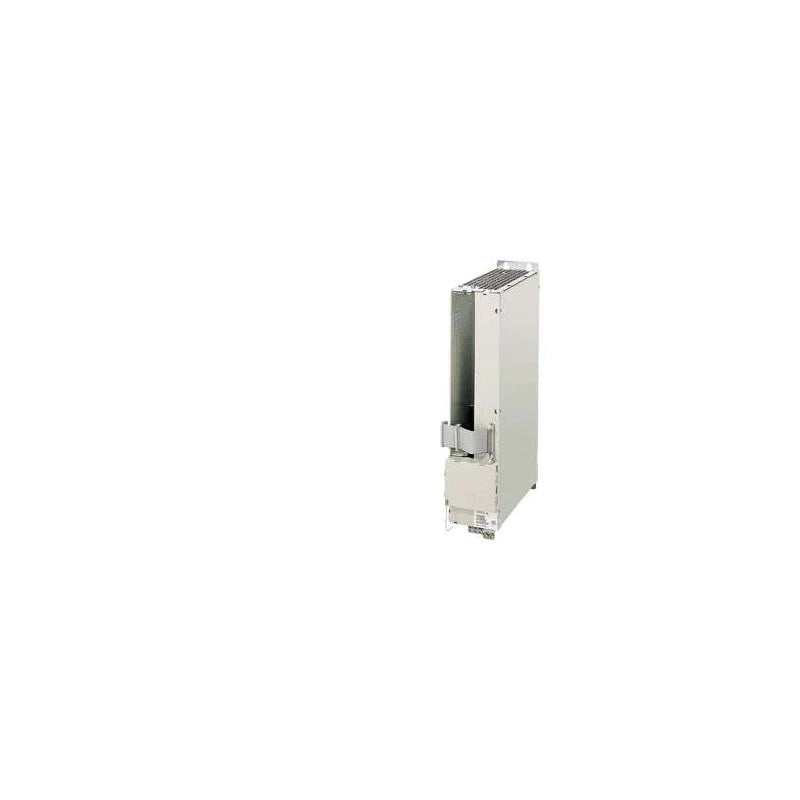

6SN1123-1AA00-0CA1 | SIEMENS SIMODRIVE 611 Power Module, 1-Axis, 50A, Int. Cooling

Description

SIMODRIVE 611 POWER MODULE, 1 AXIS, 50 A, INTERNAL COOLING, MOTOR RATED CURRENT: 1FT5 = 25 A, 1FT6 = 18 A, 1PH = 24 A, INDUCTION MOTORS = 24 A.
Part of the Siemens Simodrive 611 drive system, the 6SN1123-1AA00-0CA1 is a 1 Axis 50A power supply module. The module is used to house a control module and enables the combined unit to form a complete drive module for feed or spindle operations. A wide range of control modules are available for the 6SN1123-1AA00-0CA1. The power module can be used to operate a wider range of motors.

Technical Specifications

Information About 6SN1123-1AA00-0CA1

The power module, together with the control module, forms a drive module intended, in particular, for the feed or main spindle applications.

The drive modules are designed for the operation of the following motors:

- Servomotors 1FT6, 1FK6 and 1FK7

- 1FW6 direct drive torque motors (direct drives)

- Linear motors 1FN

- Main spindle motors 1PH

- Standardized asynchronous motors; When MA mode is selected, only inverters with a switching frequency of 4 kHz and 8 kHz are permitted.

- Hollow shaft motors for 1PM spindle drive (direct drives)

- Main spindle motors 1FE1

- Electrospindle 2SP1

- Non - Siemens engines, where these, according to their manufacturer, are suitable for the conditions of sinusoidal modulation, sufficient insulation and / dt resistance.

For special motors with low leakage inductance (for which the parameters of the regulators are insufficient), optionally provide a series inductance (3-column iron core inductor - no Corovac inductor) and / or increase the frequency of Cutting of the inverter of the variator.

Experience shows that motors with a lower leakage inductance are motors with high stator frequencies (maximum stator frequency> 300 Hz) or motors with a high rated current (nominal current> 85 A).

A wide range of power modules, depending on the current and in three different types of cooling, can be supplied in the 1-axis and 2-axis versions.

Current data refers to the default settings for the range. In case of implantation at altitudes above 1000 m, in the presence of switching frequencies and high ambient temperatures, the reductions indicated below should be carried out. Tuned and pre-connected power cables are available for connecting motors.

The specifications for the power module currents (PP modules) are standardized values, on which all control boards are based. Output currents may be limited by the control board used.
