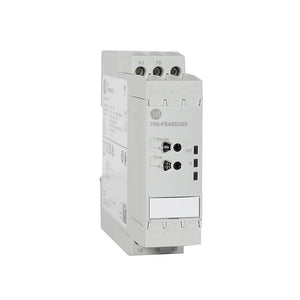

700-FSM6UU23 | Allen-Bradley 700-FS Timing Relay 22.5mm
- Regular price
- $227.00
- Sale price
- $227.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 700-FSM6UU23
Description
The Allen-Bradley 700-FSM6UU23 is a high-performance, multi-function timing relay designed for precision time-delay control in automation systems. With a compact 22.5 mm DIN rail-mounted design, this versatile relay supports a wide voltage range and a wide array of timing functions, making it ideal for industrial timing applications in control panels and machinery.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Relays |
| Part Number | 700-FSM6UU23 |
| Subcatecory |
Time Delay Relays
|
| Voltage Range | 24–240 VAC / 24–48 VDC |
| Input Current | 1 mA |
| Contact Configuration | SPDT (1 CO) |
| Contact Rating | 5 A |
| Dielectric Strength | 4000 V |
| Operating Cycles (Mechanical) | 30,000,000 |
| Mounting Style | DIN Rail |
| Temperature Range | -25°C to 60°C |
| Weight |
0.2900 lb
|
Information About 700-FSM6UU23
The 700-FSM6UU23 supports a universal input voltage range of 24–240 VAC and 24–48 VDC, allowing flexible installation in diverse control systems. It features a single-pole, double-throw (SPDT) or 1 CO (changeover) contact configuration with a contact rating of 5 A, supporting reliable switching for control loads. The relay operates at just 1 mA input, making it energy efficient, and provides 30 million mechanical operating cycles, ensuring long-term durability and performance.
Key Features:
-
Multi-Function Timing Modes: Supports a variety of delay and pulse timing operations for versatile control applications.
-
Wide Voltage Range: Operates with both AC (24–240V) and DC (24–48V) systems, increasing deployment flexibility.
-
High Durability: Rated for up to 30 million mechanical cycles for long-term use in automation systems.
-
Compact DIN Rail Design: Slim 22.5 mm housing saves panel space while ensuring quick and secure mounting.
-
SPDT Output Configuration: Provides one changeover contact for flexible wiring in control circuits.
The 700-FSM6UU23 is ideal for use in industrial automation panels, HVAC systems, motor control applications, and sequential logic control setups.
